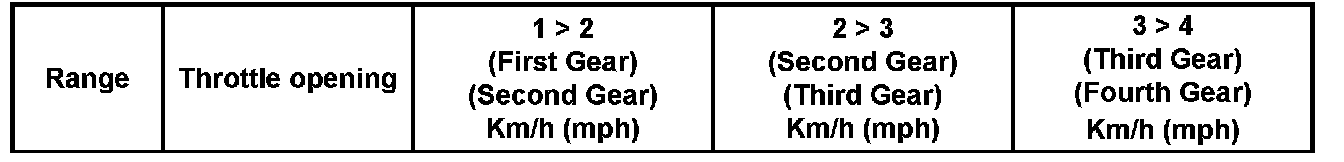

Shift Speed Chart





Shift Speed Chart

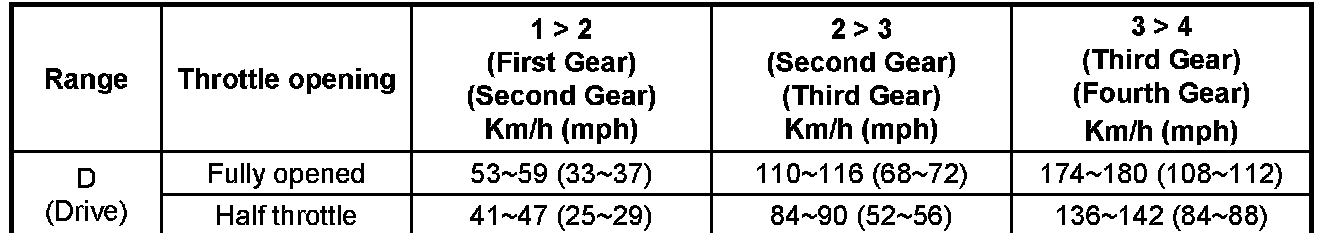

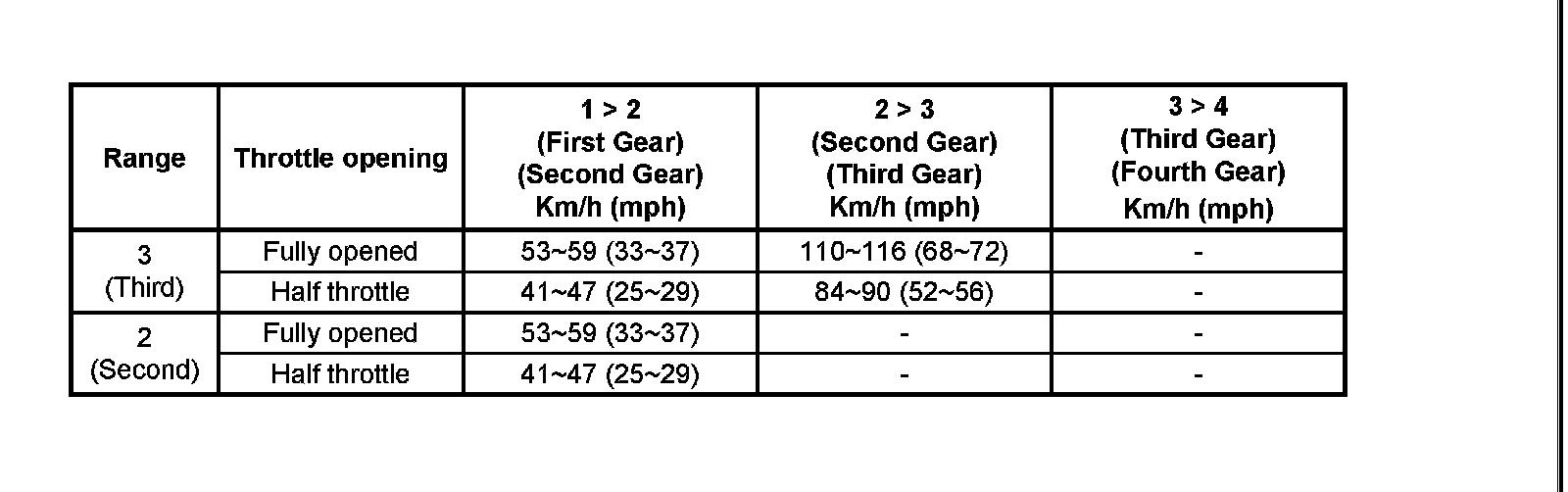

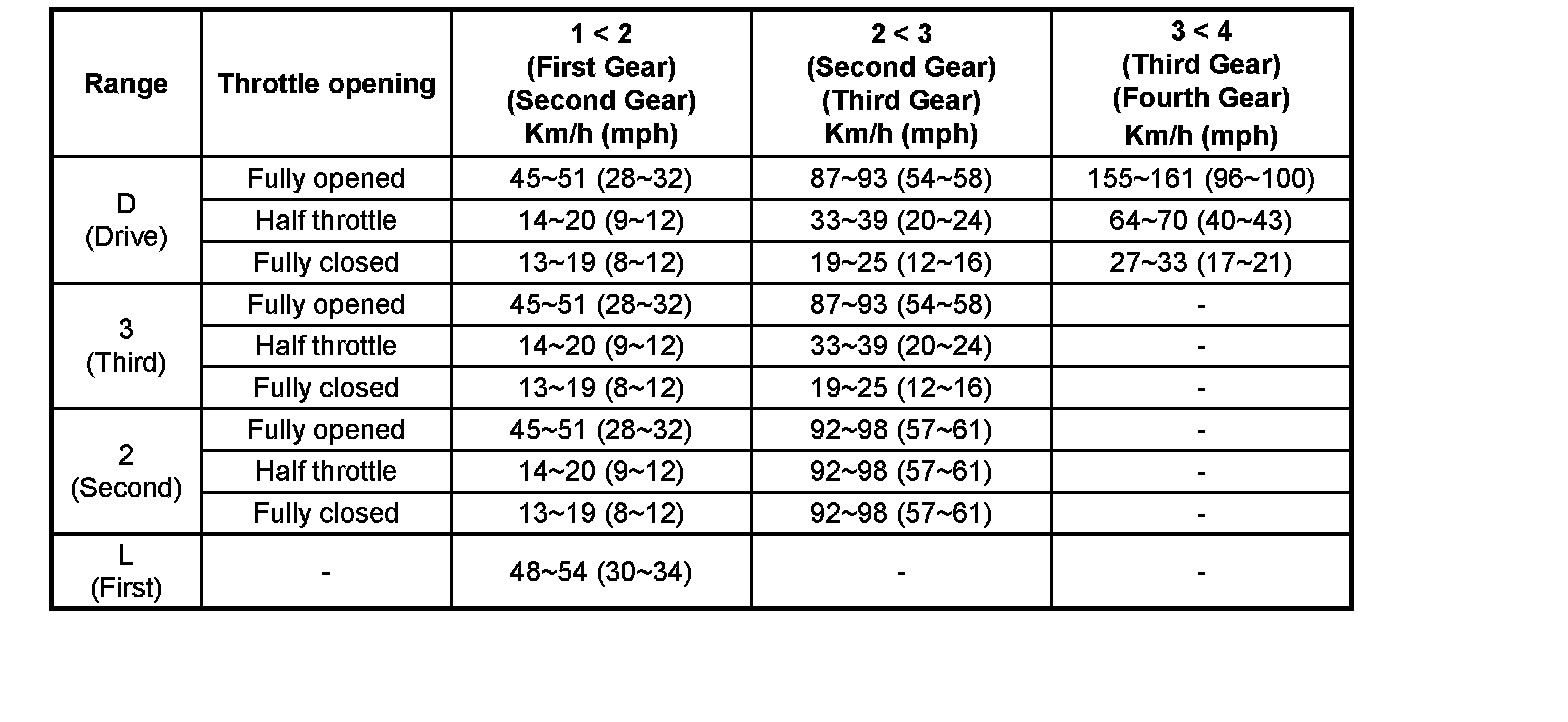

Normal mode








Upshift





Downshift

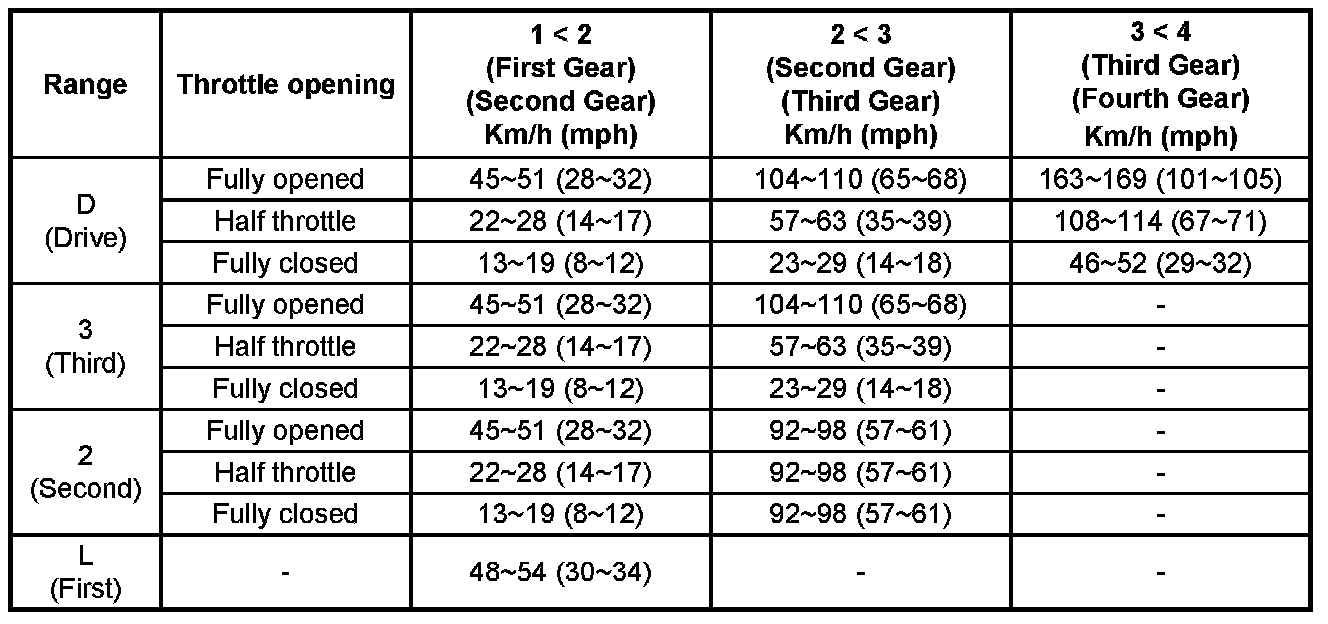

Power mode








Upshift





Downshift

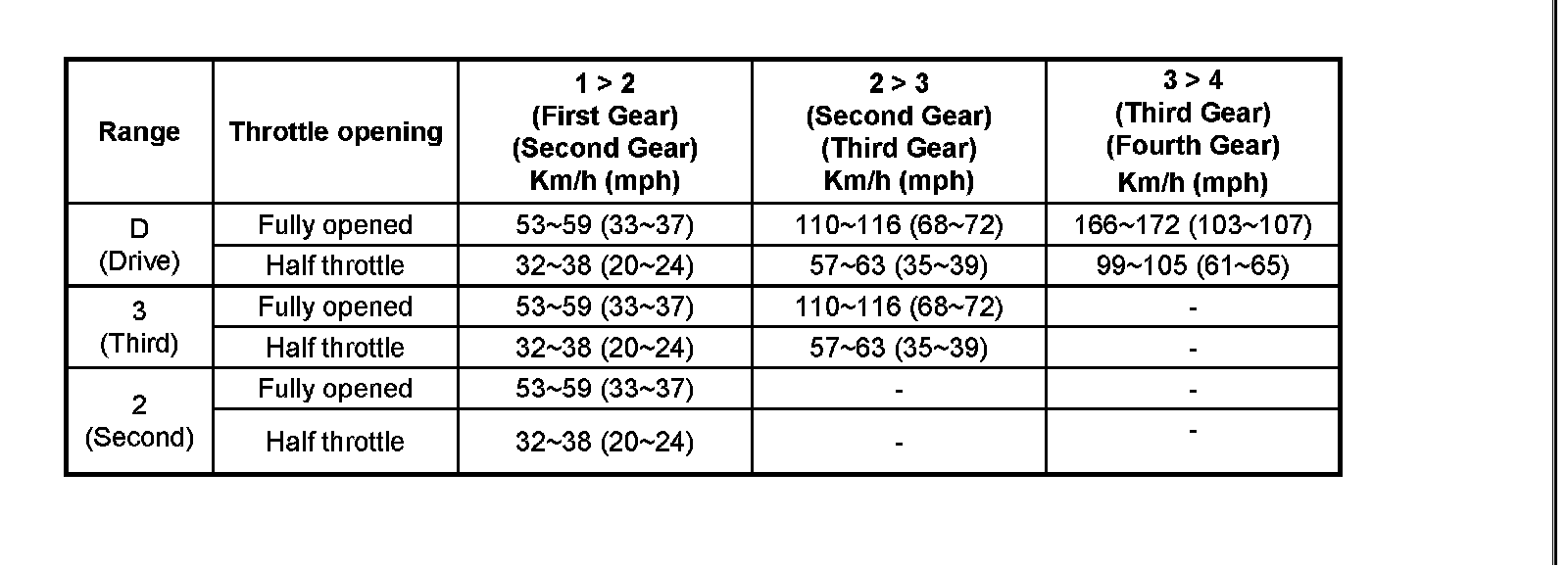

"Winter mode"
