Windshield Wiper Motor
Windshield Wiper MotorRemoval
1. Disconnect the battery ground cable.
2. Disconnect the connector.
3. Remove 4 mounting bolts.

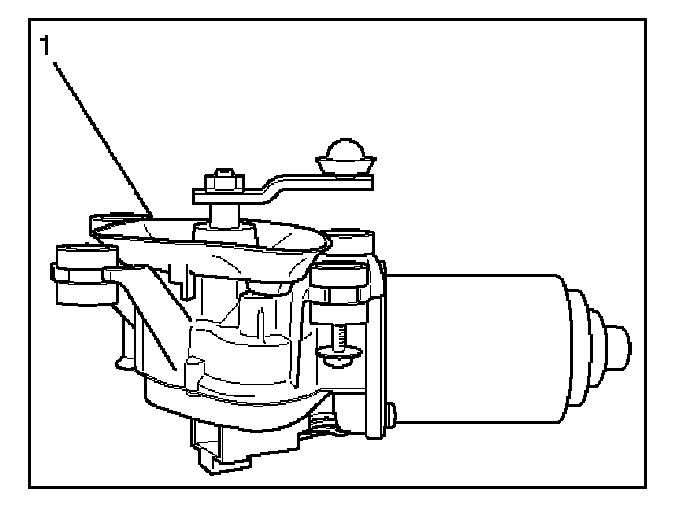

4. Remove the windshield wiper motor (1).
Installation
To install, follow the removal steps in the reverse order.
