Windshield Wiper Blade Rubber

Windshield Wiper Blade Rubber

Removal

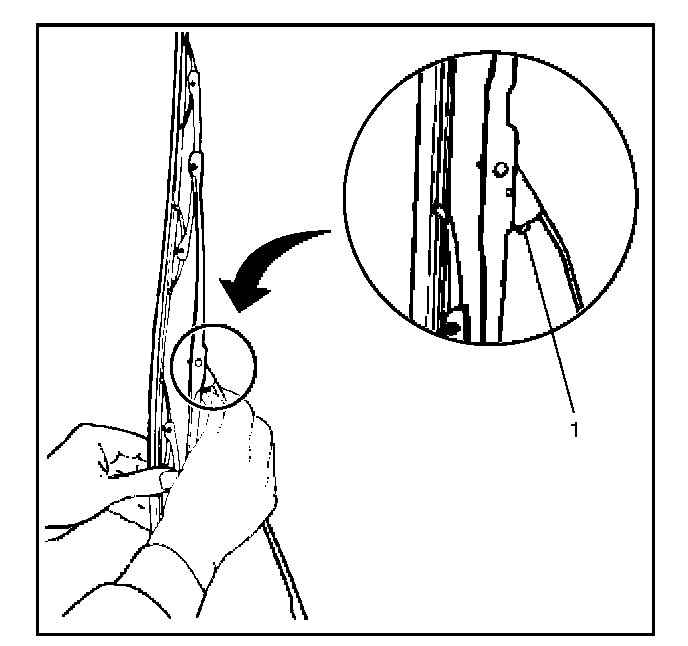

1. Push the wiper blade lock(1) while pulling the wiper blade in the arrow direction as shown in the figure.

CAUTION: When the wiper blade has been removed, wrap the tip of the wiper arm with cloth, to avoid damaging the glass.

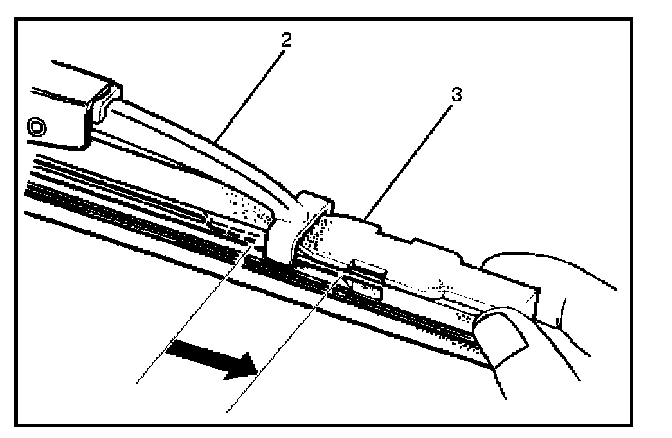

2. Pull the end of rubber and remove the projection(3) from the click of the blade stay (2).
3. Pull the rubber out in the same direction.

Installation

To install, follow the removal steps in the reverse order, noting the following points.

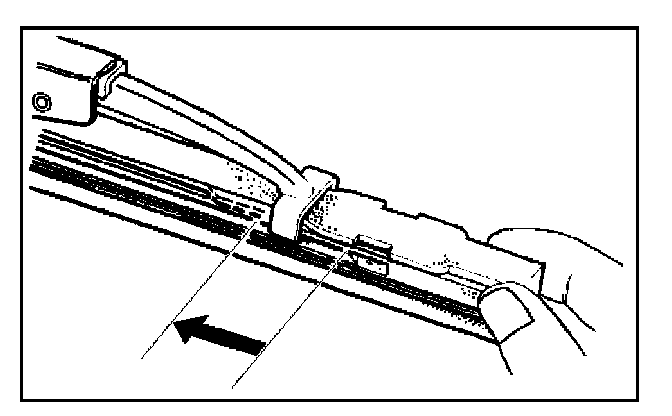

1. Install the click of the blade stay in the groove of the new rubber and slide it in. Complete wiper blade installation by pushing the click.

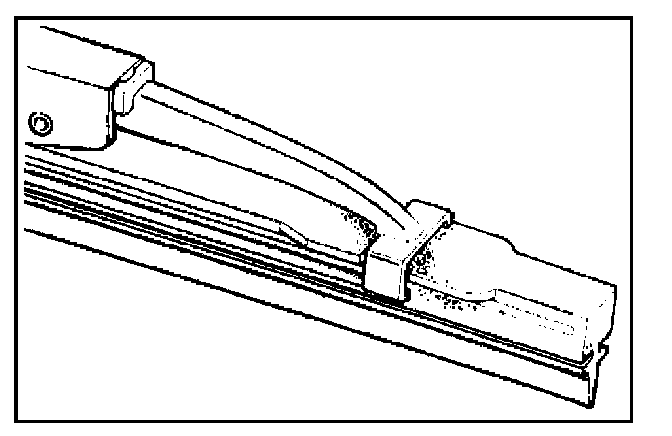

2. Finally, check that the click of the stay has caught in the hole of the rubber.
