Rear Door Striker: Service and Repair

Tailgate Dove-Tail

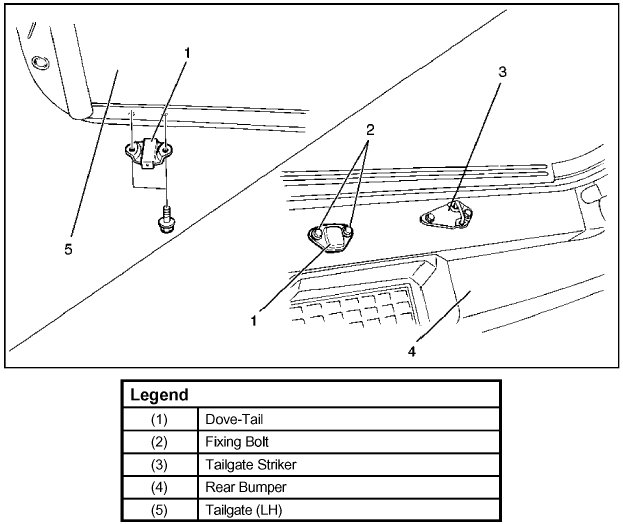

Parts Location:

Removal

1. Remove tailgate dove-tail.
- Remove the two bolts from each side.

Installation

To install, follow the removal steps in the reverse order, nothing the following points.
1. Apply chassis grease to the dove-tail (A) moving surface.
2. Tighten the fixing bolts to the specified torque.
Torque: 12 N.m (104 lb in)
