Rear Door Assembly

Rear Door Assembly

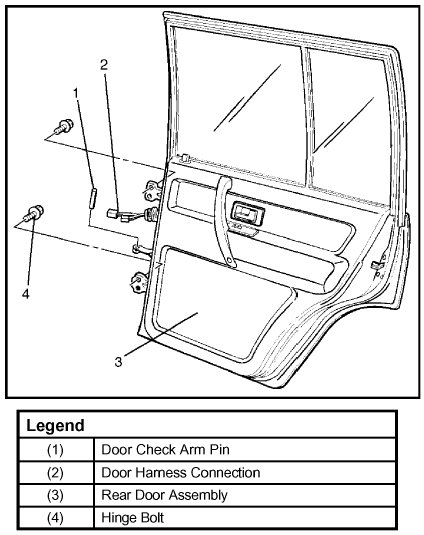

Parts Location:

Removal

1. Disconnect the battery ground cable.
2. Apply a setting mark on the body side hinge.

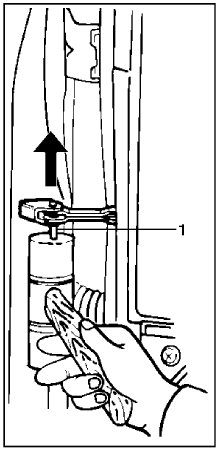

3. Remove door check arm pin (1).







4. Remove hinge bolt.

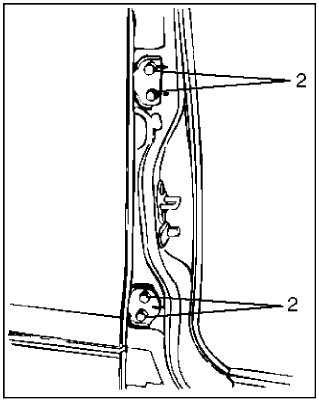

- Open the front door and remove the body side hinge bolts (2).

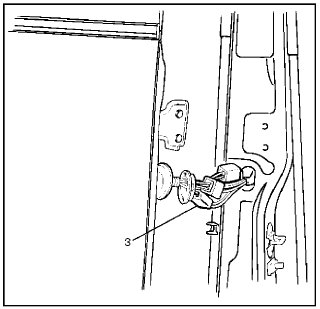

5. Remove door harness connection (3).
- Pull the door harness grommet out in order to disconnect the door harness connection.







6. Remove door assembly


Installation

To install, follow the removal steps in the reverse order, noting the following points.
7. Align the door fitting to the body by refer to Body Dimensions.
8. Tighten the door hinge bolts to the specified torque.
Torque: 34 N.m (25 lb ft)

9. Apply chassis grease to the check arm pin and the door hinge moving surface.
