Front Door Seal Finisher

Front Door Seal Finisher

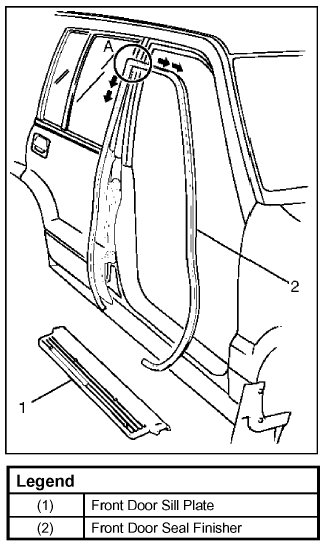

Parts Location:

Removal

1. Disconnect the battery ground cable.
2. Remove front door sill plate.

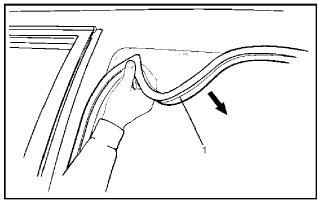

3. Remove front door seal finisher (1).
- Pull the finisher out from the body panel.







Installation

To install, follow the removal steps in the reverse order, noting the following points.

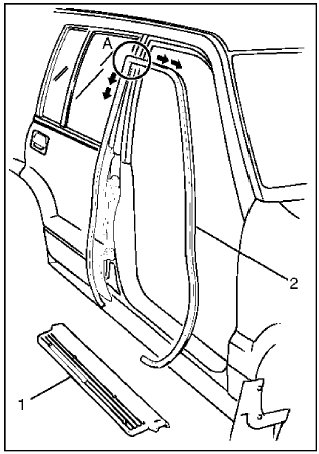

1. Insert the finisher (2) into the A corner and install the finisher in the arrow-marked directions.
2. Take care not to allow the sill plate (1) to distort or twist the finisher.
