Front Pillar Trim Cover

Front Pillar Trim Cover

Front Pillar Trim Cover And Associated Parts:

Removal

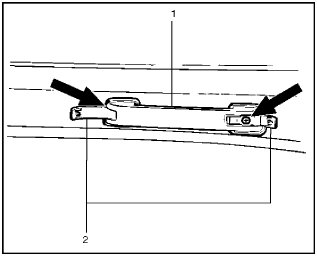

1. Remove the front pillar assist grip(1).
- Open the both sides of the assist grip cover (2) and remove the fixing screws and the front pillar assist grip.







2. Remove the front pillar trim cover (3).
- Turn up the finisher (4) and pry the trim cover retainers free from the body panel.







Installation
To install, follow the removal steps in the reverse order.
