Sun Roof Glass

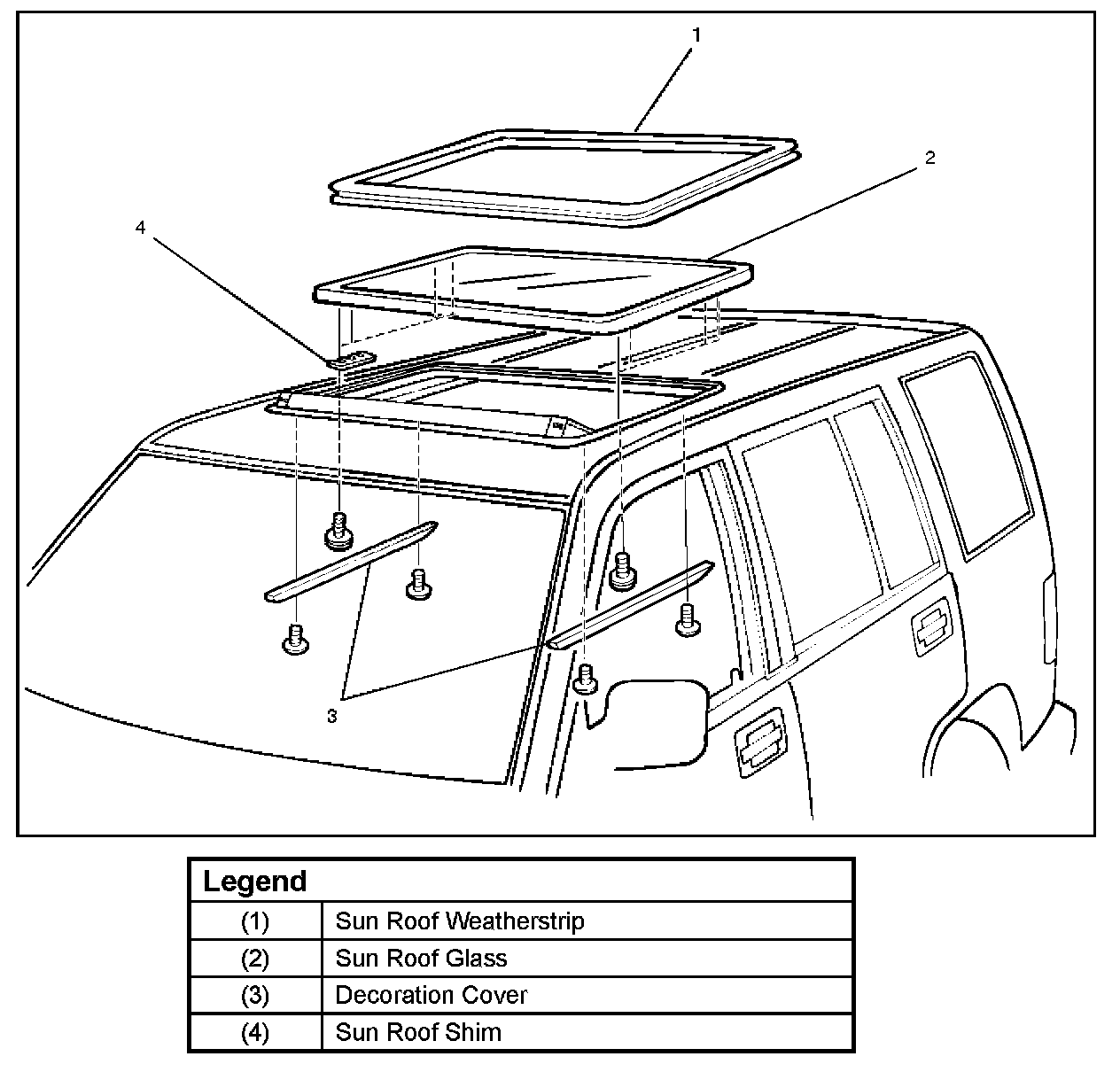

Sun Roof Glass And Associated Parts:

Sun Roof Glass

Removal

1. Open the sun roof and pull the sun roof weatherstrip out from the roof panel.
2. Disconnect the battery ground cable.

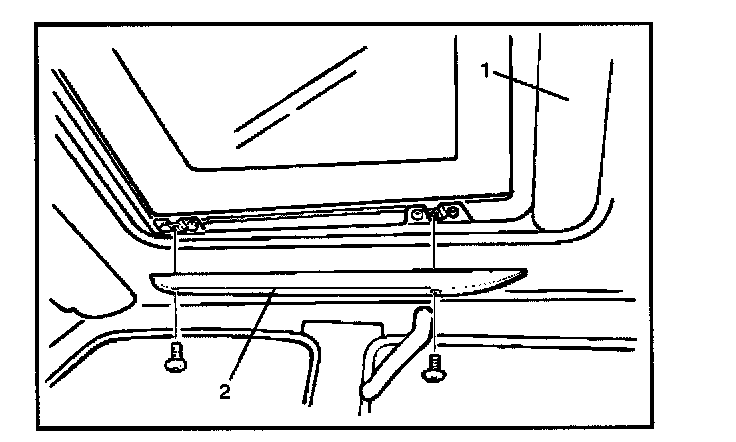

3. Close the sun roof and open the sunshade (1). Then, remove the decoration cover fixing screws and decoration cover (2).

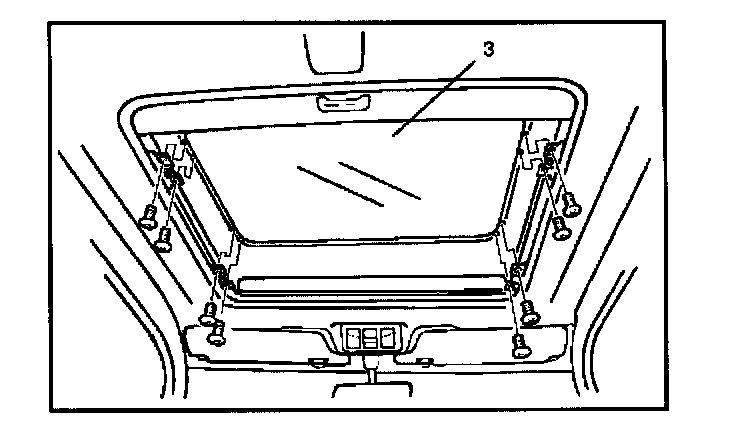

4. Remove eight sun roof glass fixing screws to remove the sun roof glass (3).

NOTE: If shims are used between the sun roof set plate and the glass, note the number of shims used.

Installation

1. Clean the body panel of the weatherstrip fixing portion.
- If the protective film (1) of the body panel is peeled, it cannot be reused.
Install the new protective film around the body panel (2).

2. Install the new weatherstrip (3).
- Always replace with a new one.




3. Be sure to install the sun roof weatherstrip so that the white marking location (4) of the weatherstrip is on the front side of the vehicle.

4. Temporarily install the glass to the sun roof frame.
5. Open and shut the sun roof four to five times to position correctly the sun roof weatherstrip and the glass in the longitudinal and latitudinal setting positions.
6. Insert the original shims between the sun roof set plate and the glass.
7. Tighten the sun roof glass fixing screws to the specified torque.

Torque: 10 N.m (87 lb in)

8. After the sun roof glass is installed, check the roof panel and sun roof glass for vertical install position.
If out of standard, adjust with shim.
For the installation standard, refer to Body Dimension in Body Structure section.

9. Install the decoration cover.
