General Module

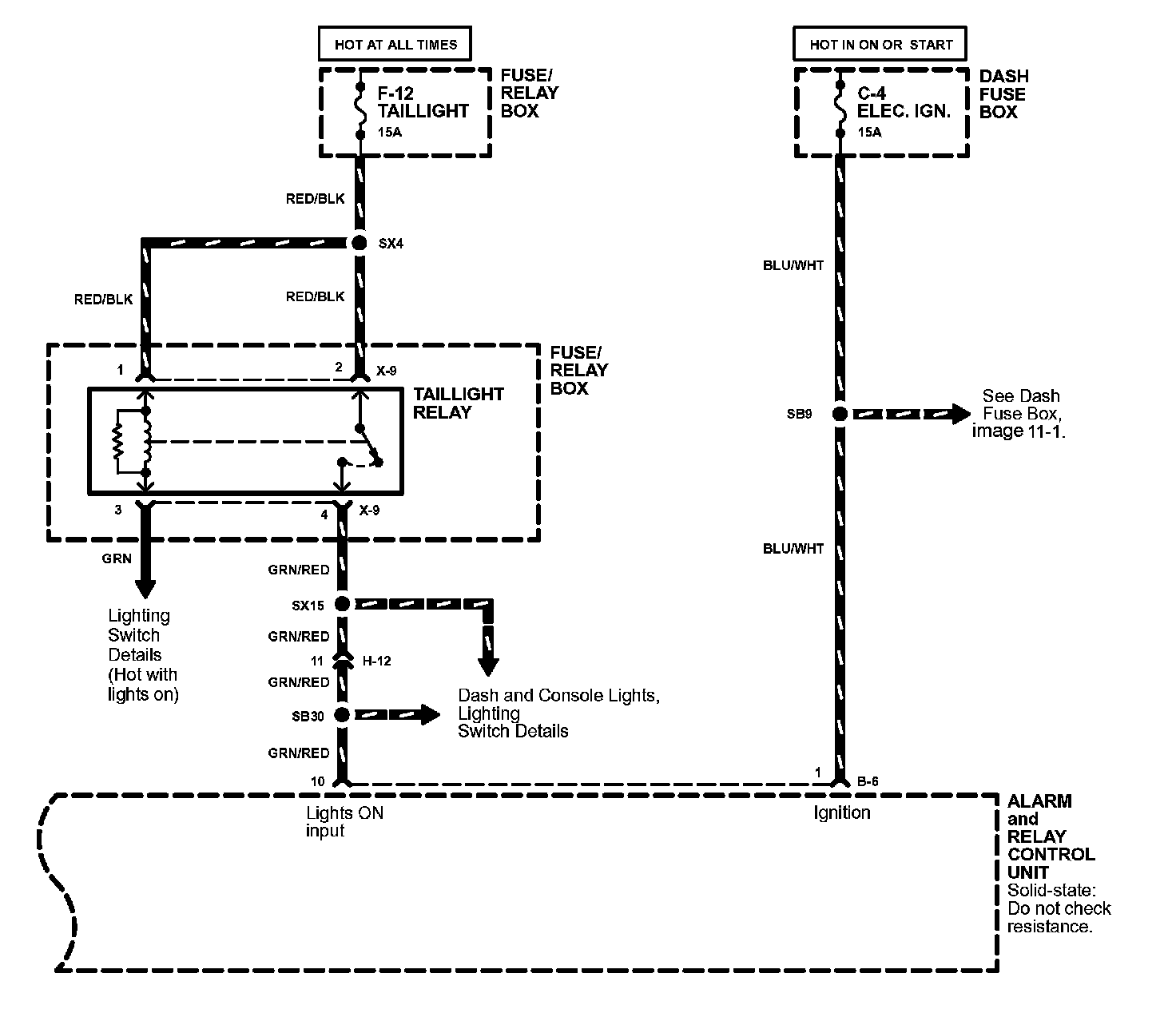

Alarm And Relay Controls Image 70:

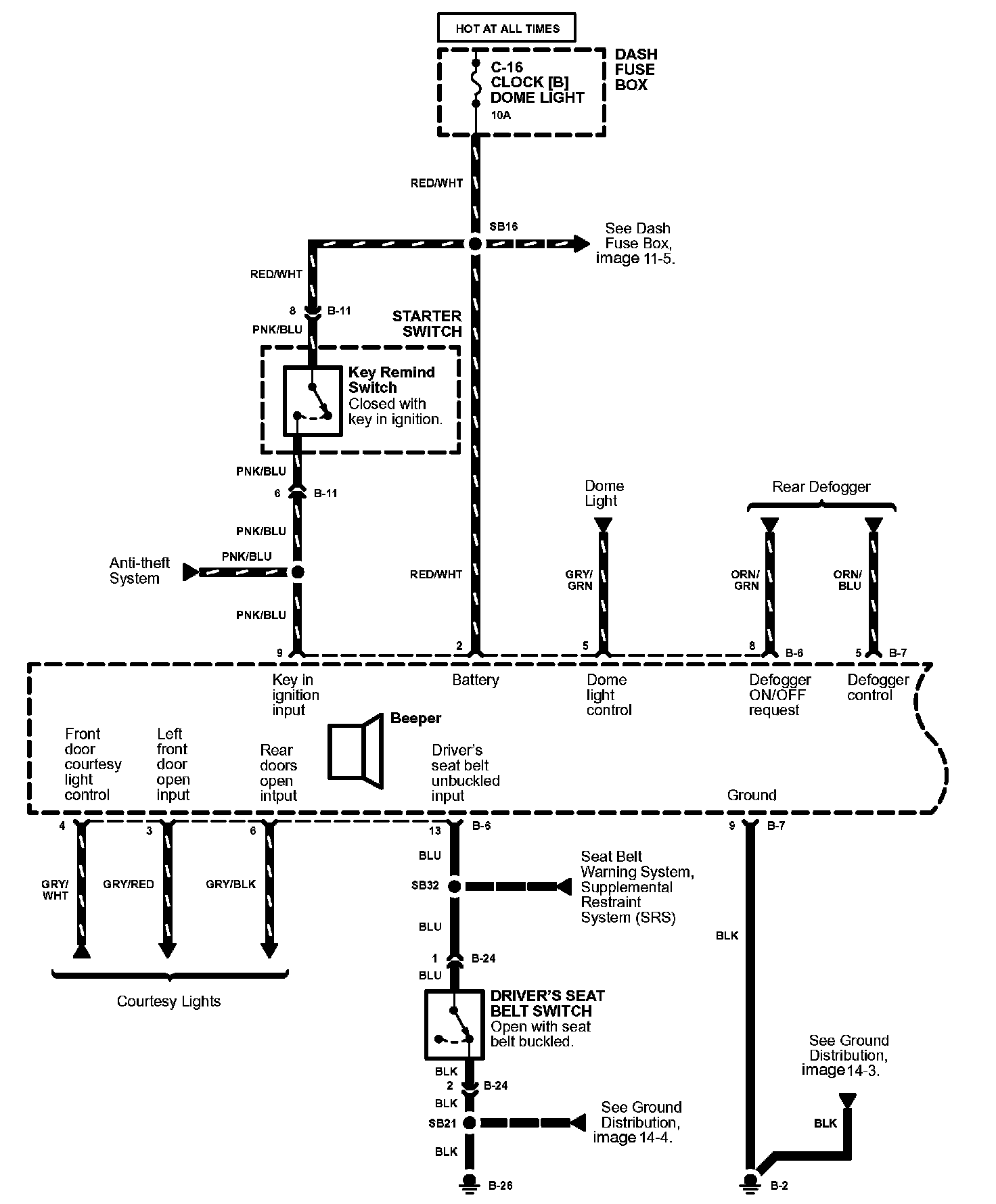

Alarm And Relay Controls Image 70-1:

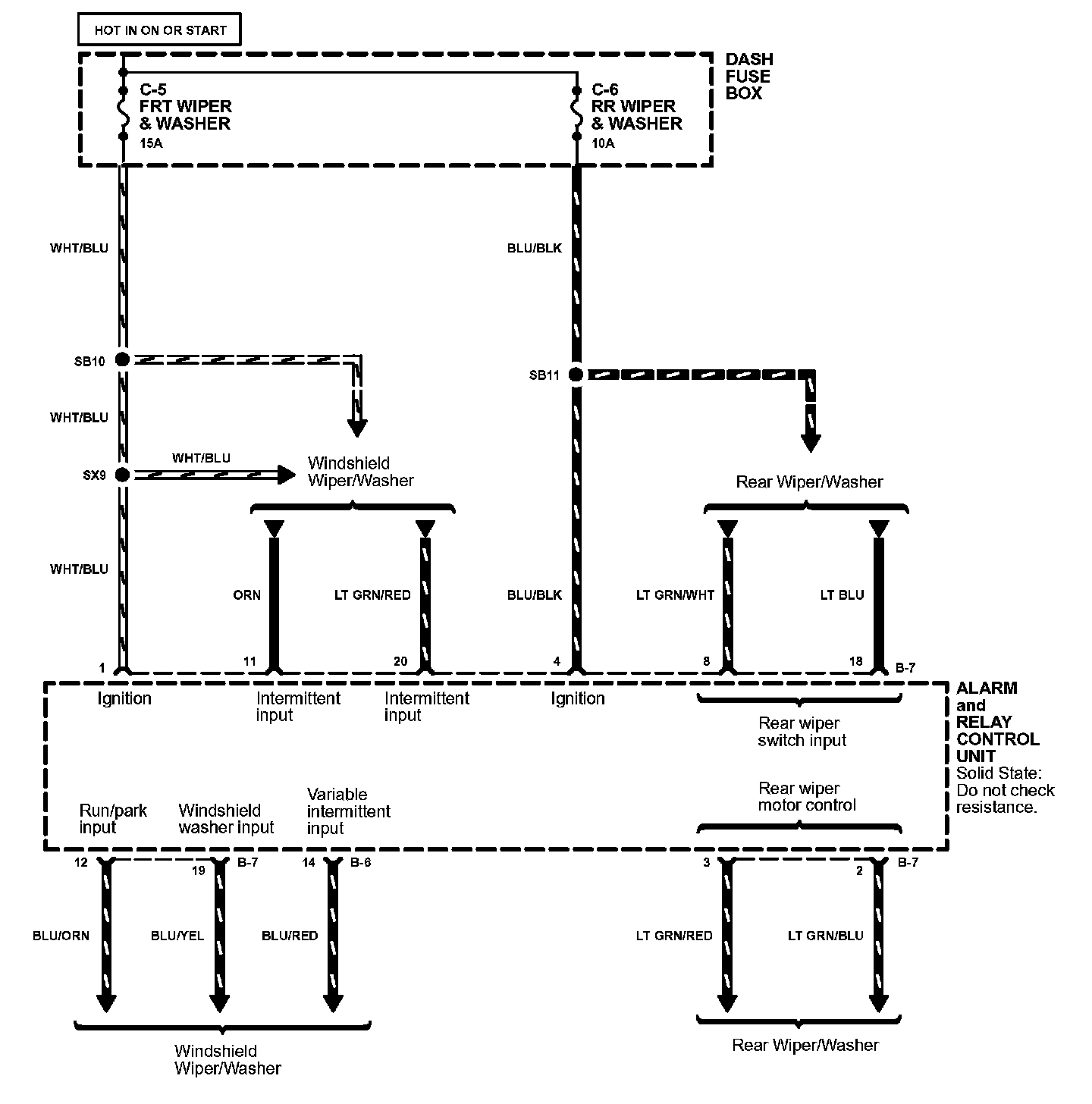

Alarm And Relay Controls Image 70-2:

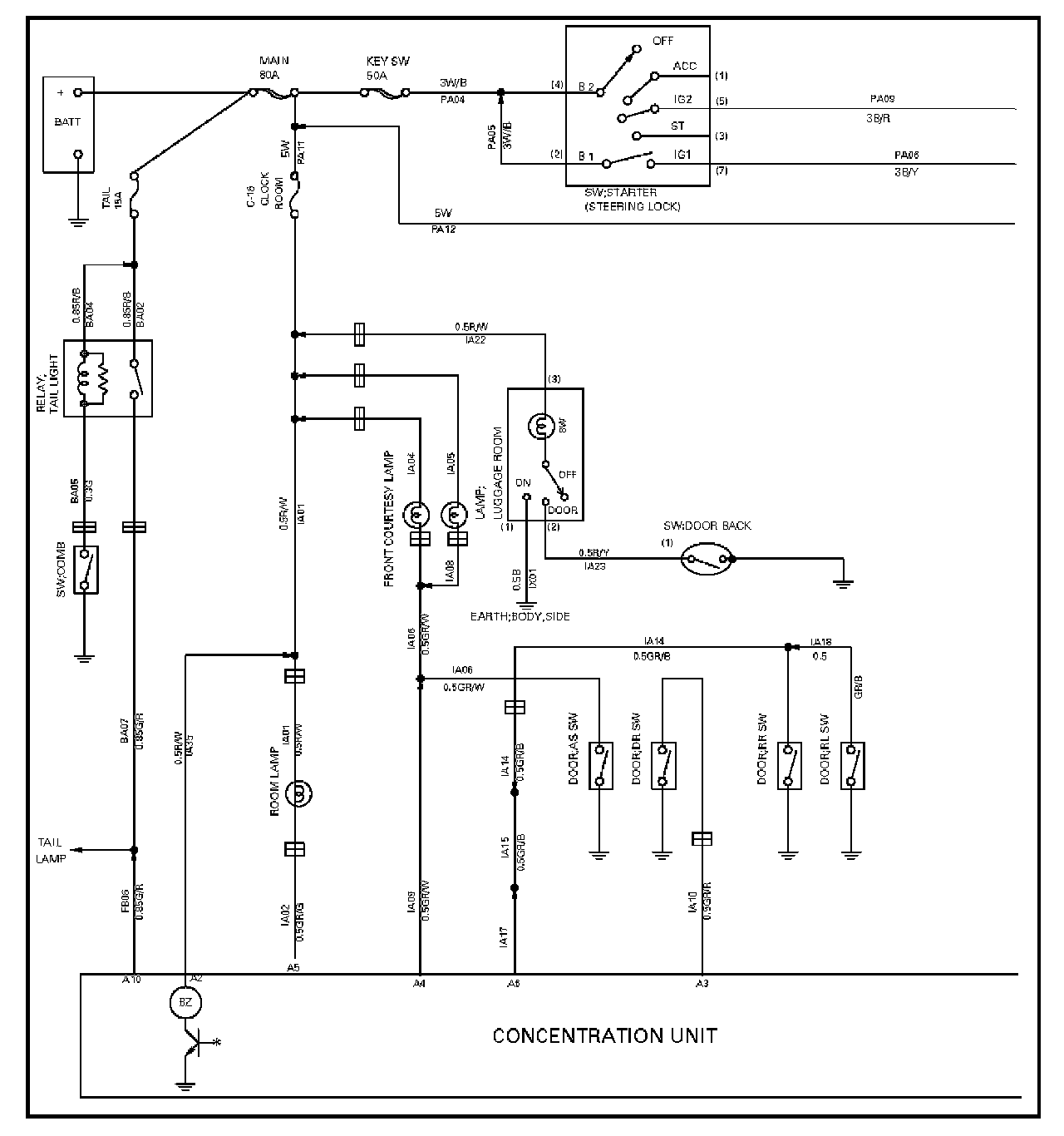

Wiring Diagram - Alarm And Relay Control Unit - 1:

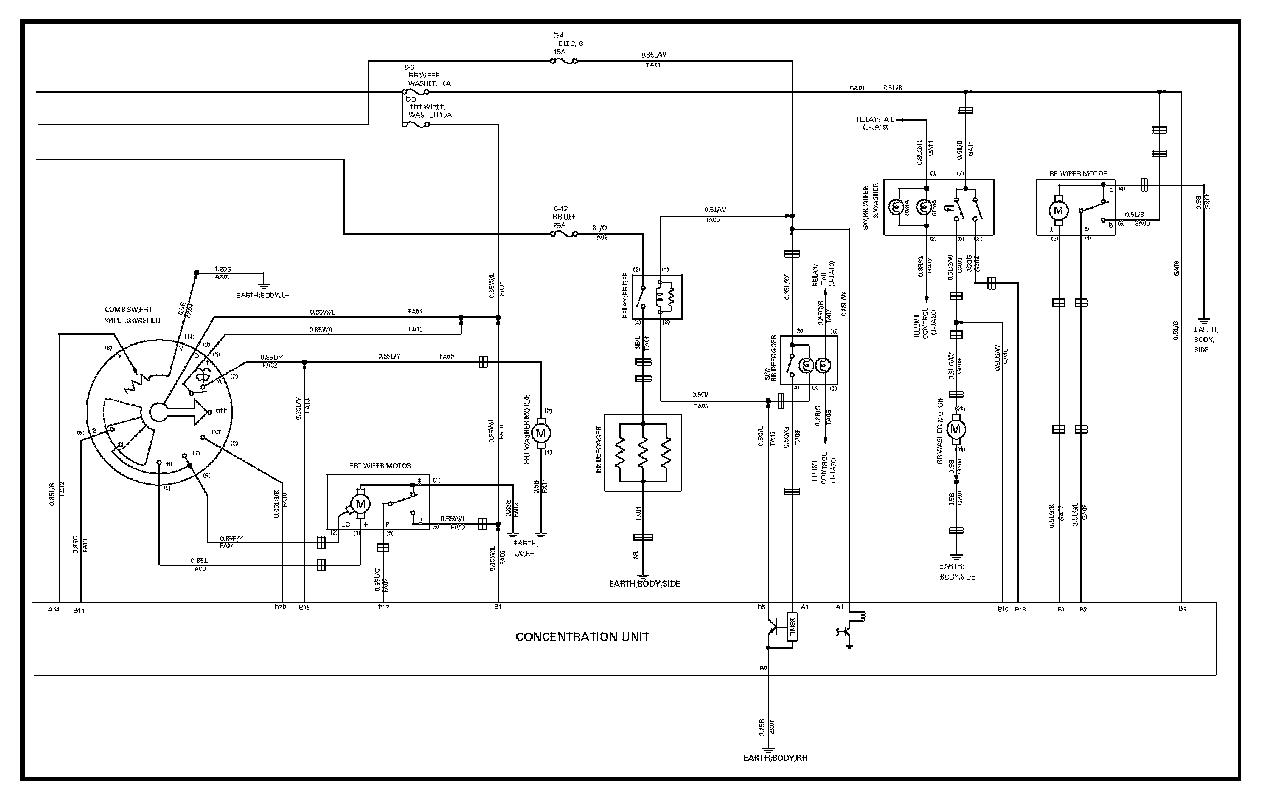

Wiring Diagram - Alarm And Relay Control Unit - 2:
