Heating and Air Conditioning
>>
Blower Motor
Blower Motor

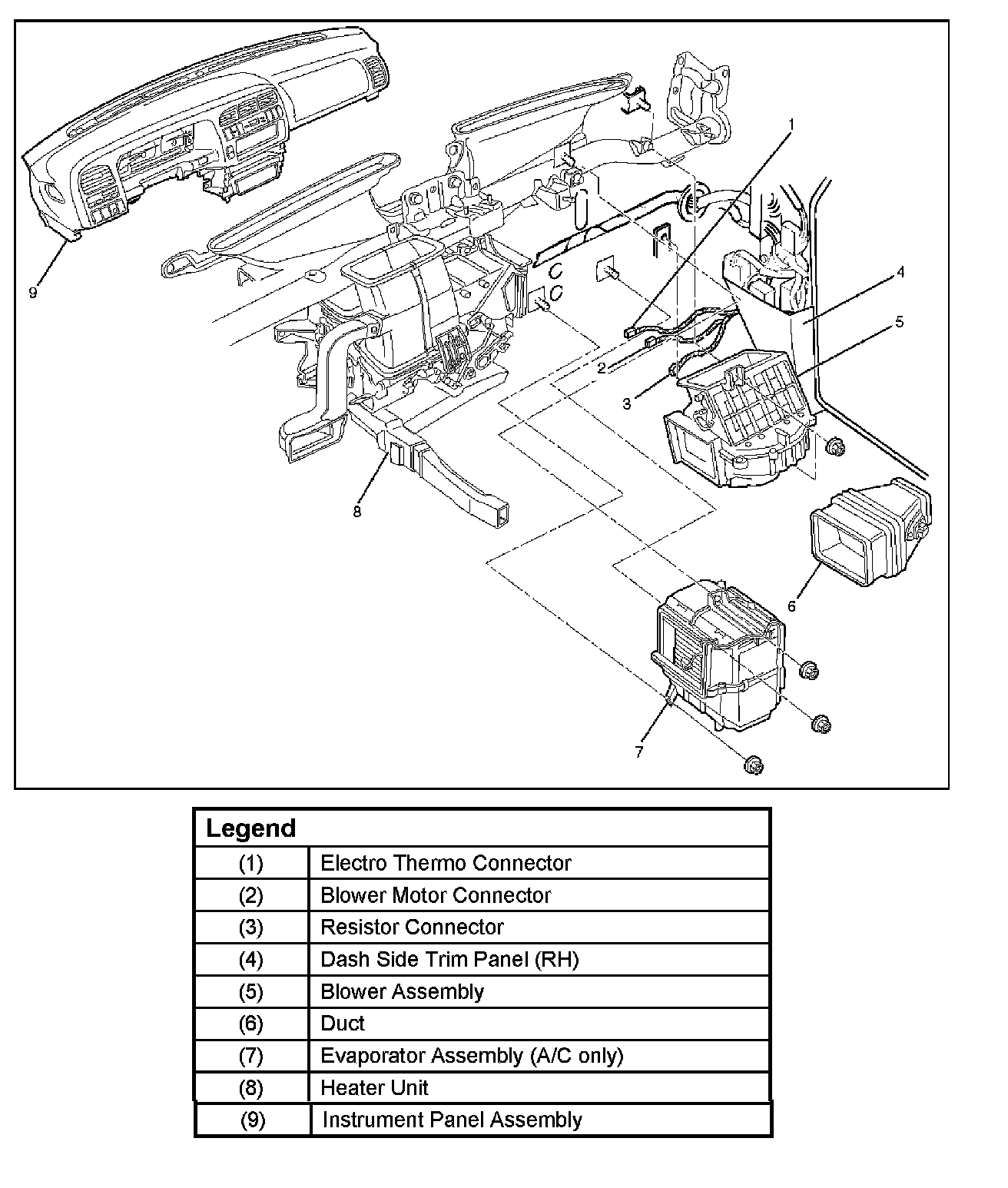

Blower Assembly And Associated Parts:

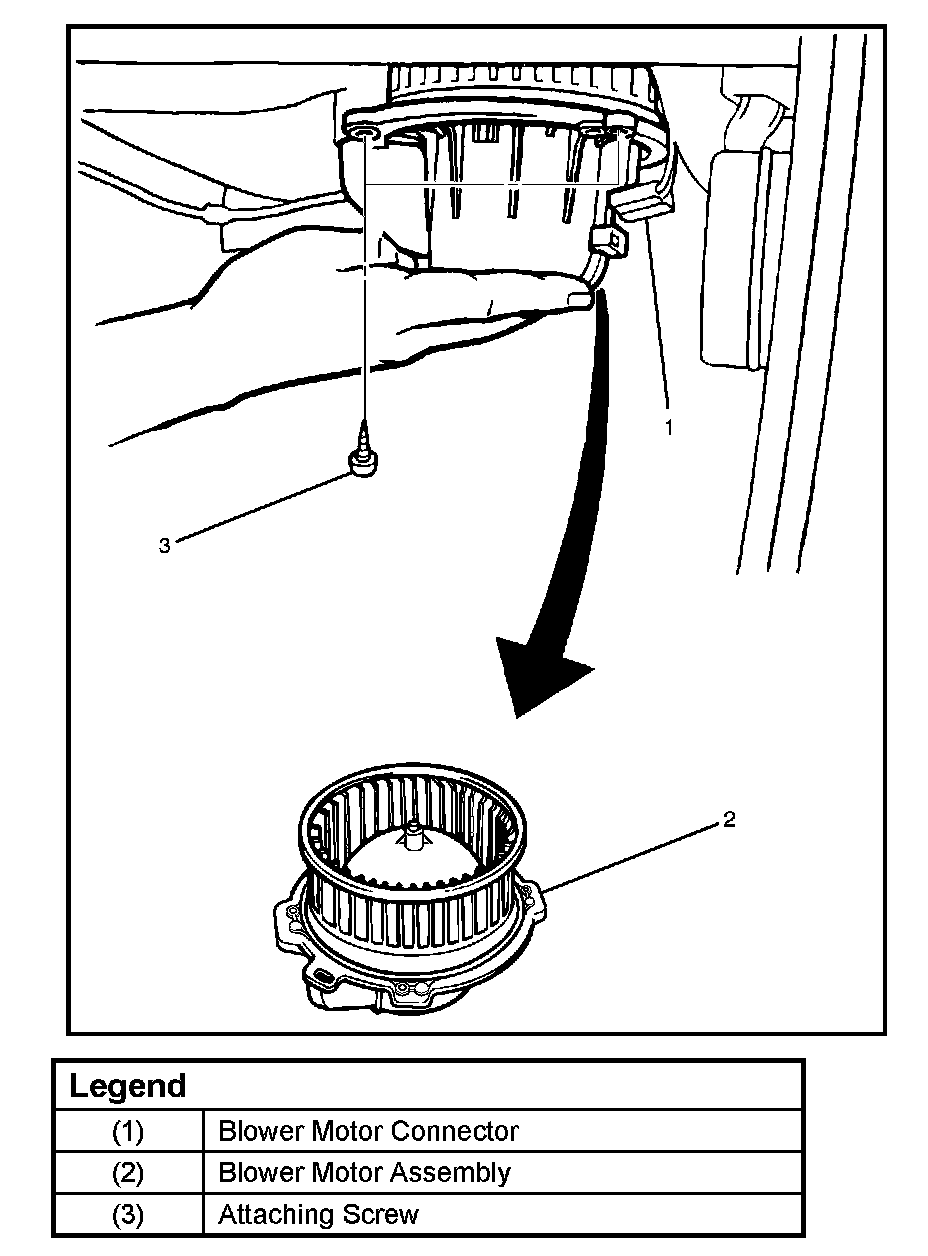

Blower Motor And Associated Parts:
Blower Link Unit And / Or Mode Door - Disassembled View:
