Three Way Catalytic Converter LH (Automatic Transmission)

Three Way Catalytic Converter LH (Automatic Transmission)
Removal

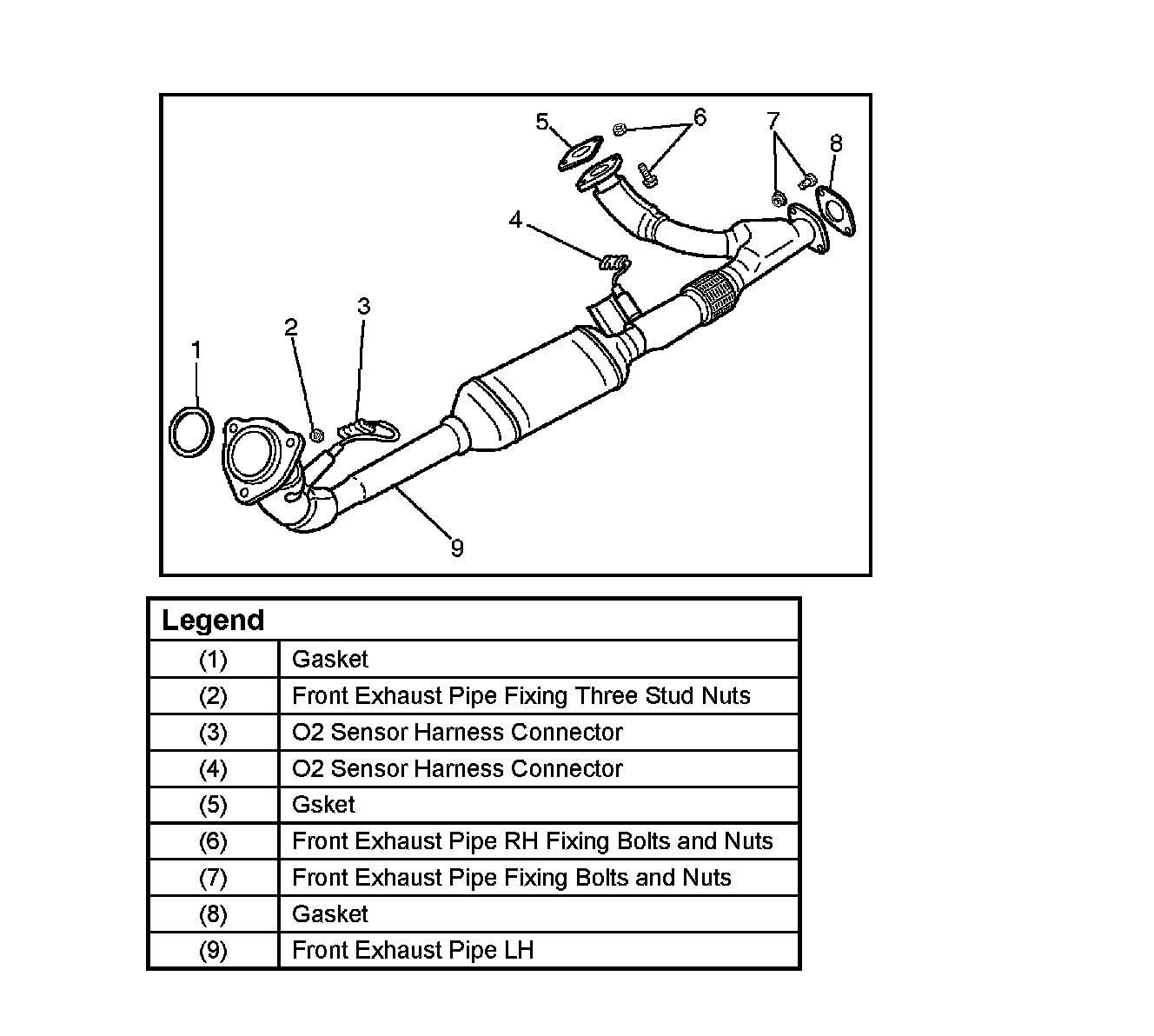

1. Disconnect battery ground cable.
2. Raise the vehicle and support with suitable safety stands.
3. Disconnect front 02 sensor harness connector and rear 02 sensor harness connector (3)(4)





4. Remove exhaust front pipe fixing three stud nuts (2) from exhaust manifold side and two nuts (6)(7) from rear end of exhaust front pipe (9).

Installation
1. Install exhaust front pipe (9) and tighten three studs nuts (2) and two nuts (6)(7) to the specified torque.
Torque
Stud nuts: 67 Nm (49 ft. lbs.)
Nuts(6): 57 Nm (42 ft. lbs.)
Nuts(7): 43 Nm (32 ft. lbs.)
2. Reconnect 02 sensor harness connector (3)(4).
