Headlamp: Adjustments

Headlight Adjustment

Preparation

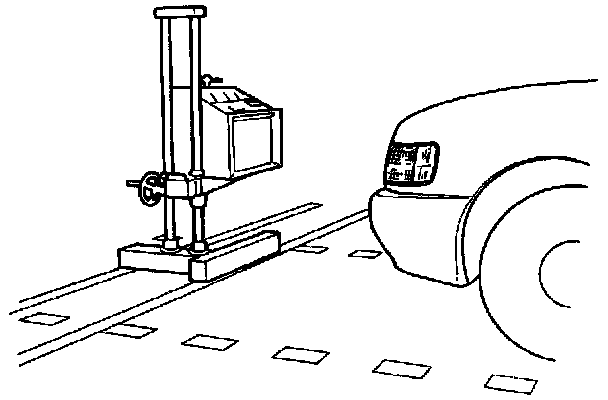

Place the unloaded vehicle on a level surface and check to see if the inflation pressure of the tires is correct, the lenses are clean, and the battery is sufficiently charged. Adjust the aim with the headlight tester, if necessary. When adjusting, follow the procedure of the tester manufacturer's.

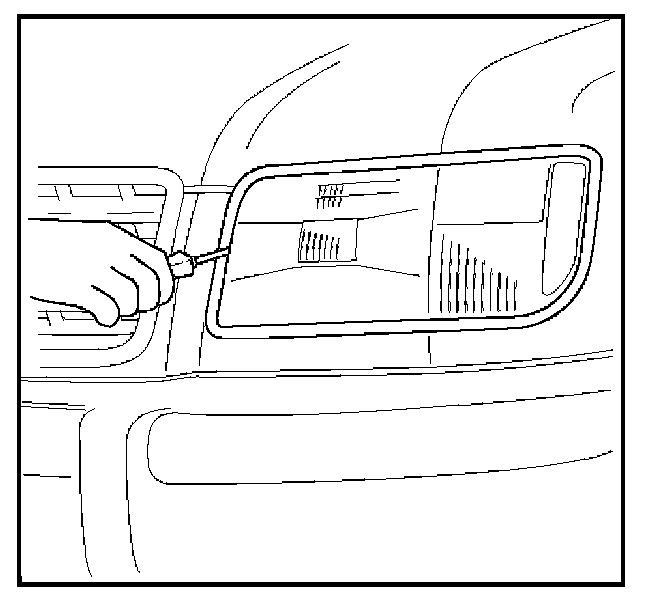

Vertical adjustment




Use a screwdriver for vertical adjustment.

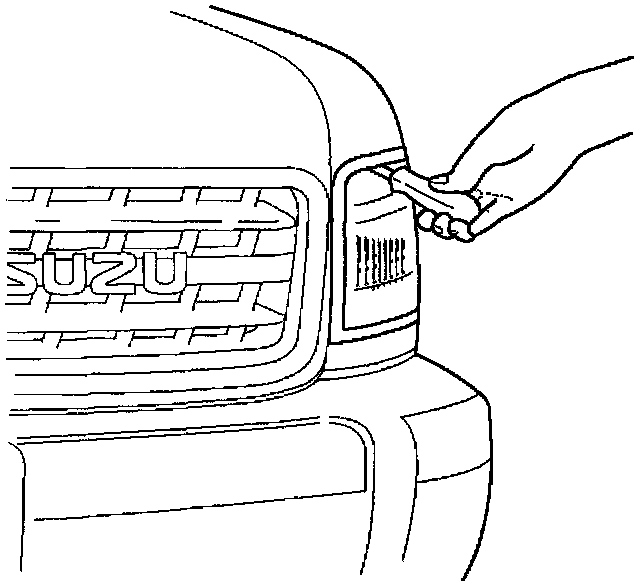

Horizontal adjustment




Use a screwdriver for horizontal adjustment.
