Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
2002
>>
Trooper S 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Connector Locations
Connector Locations

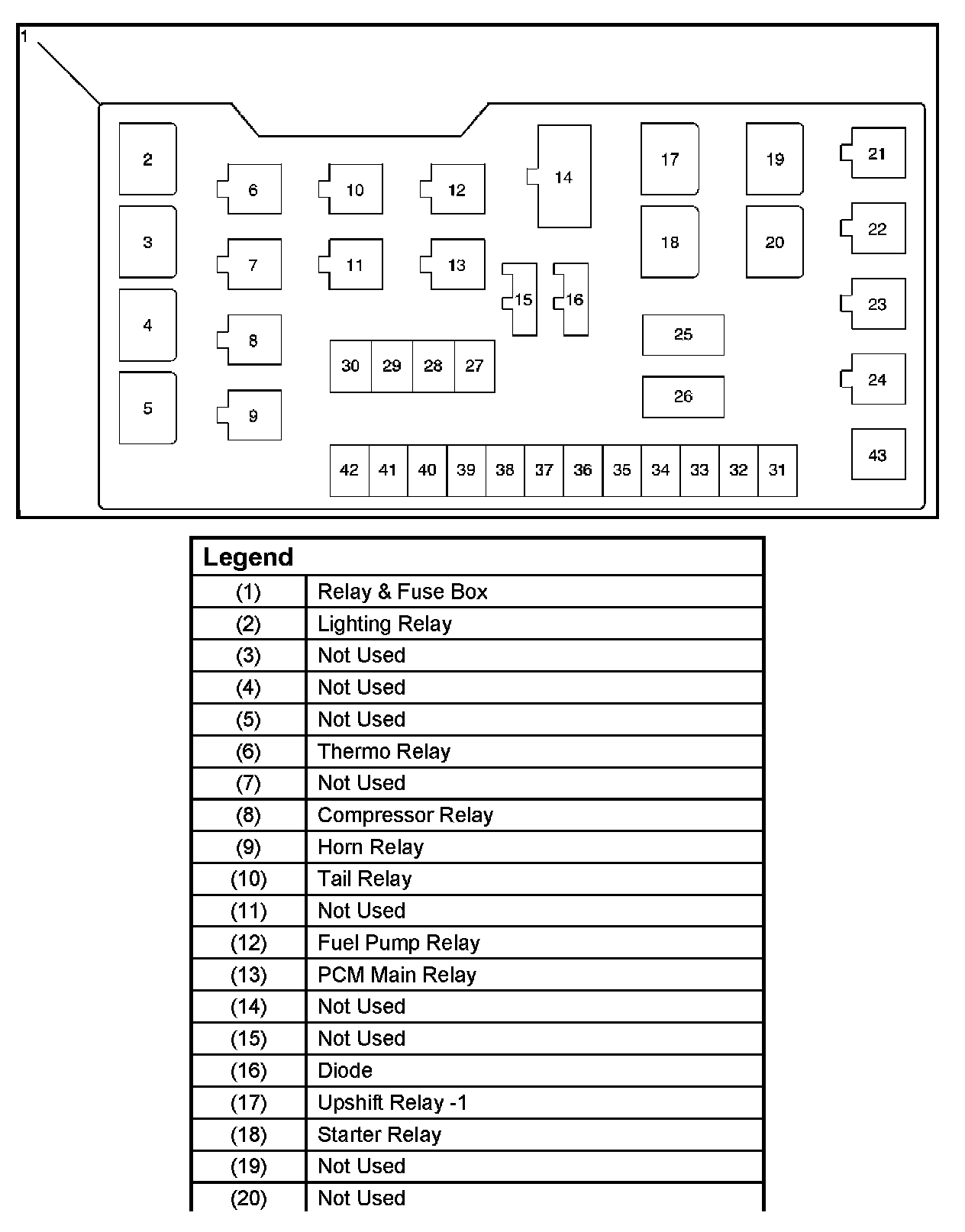

Relay & Fuse Box Part 1:

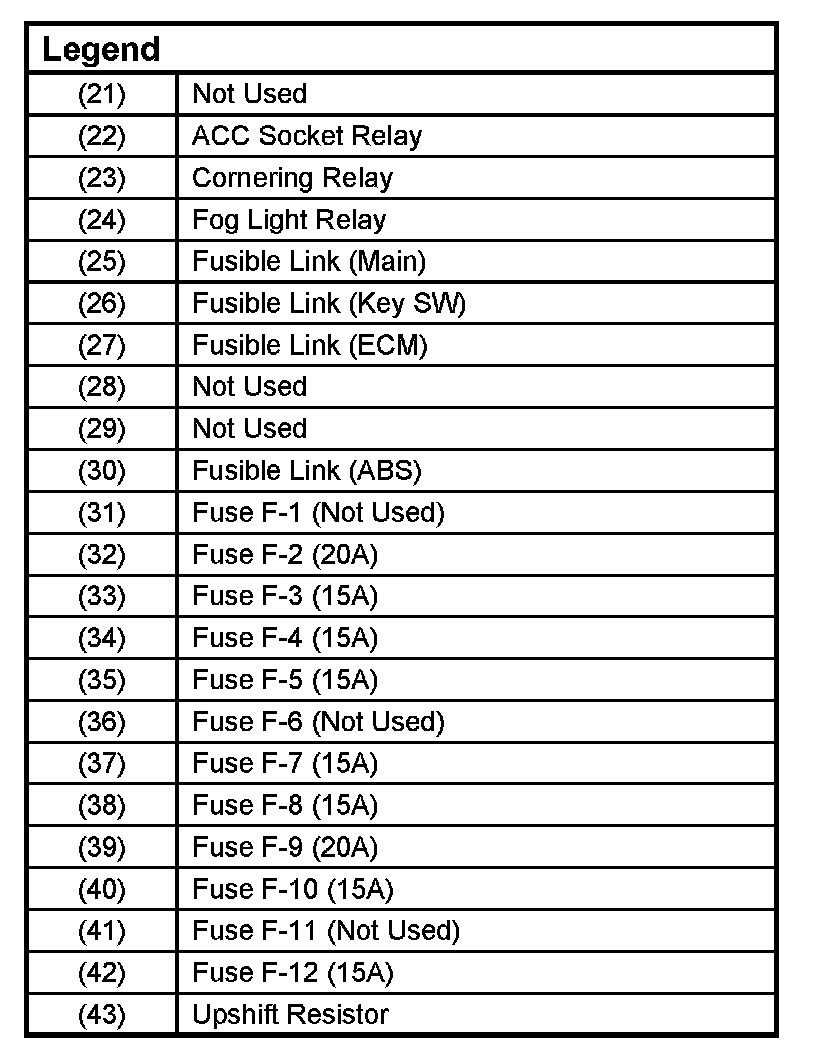

Relay And Fuse Box Part 2:
