Connector Views

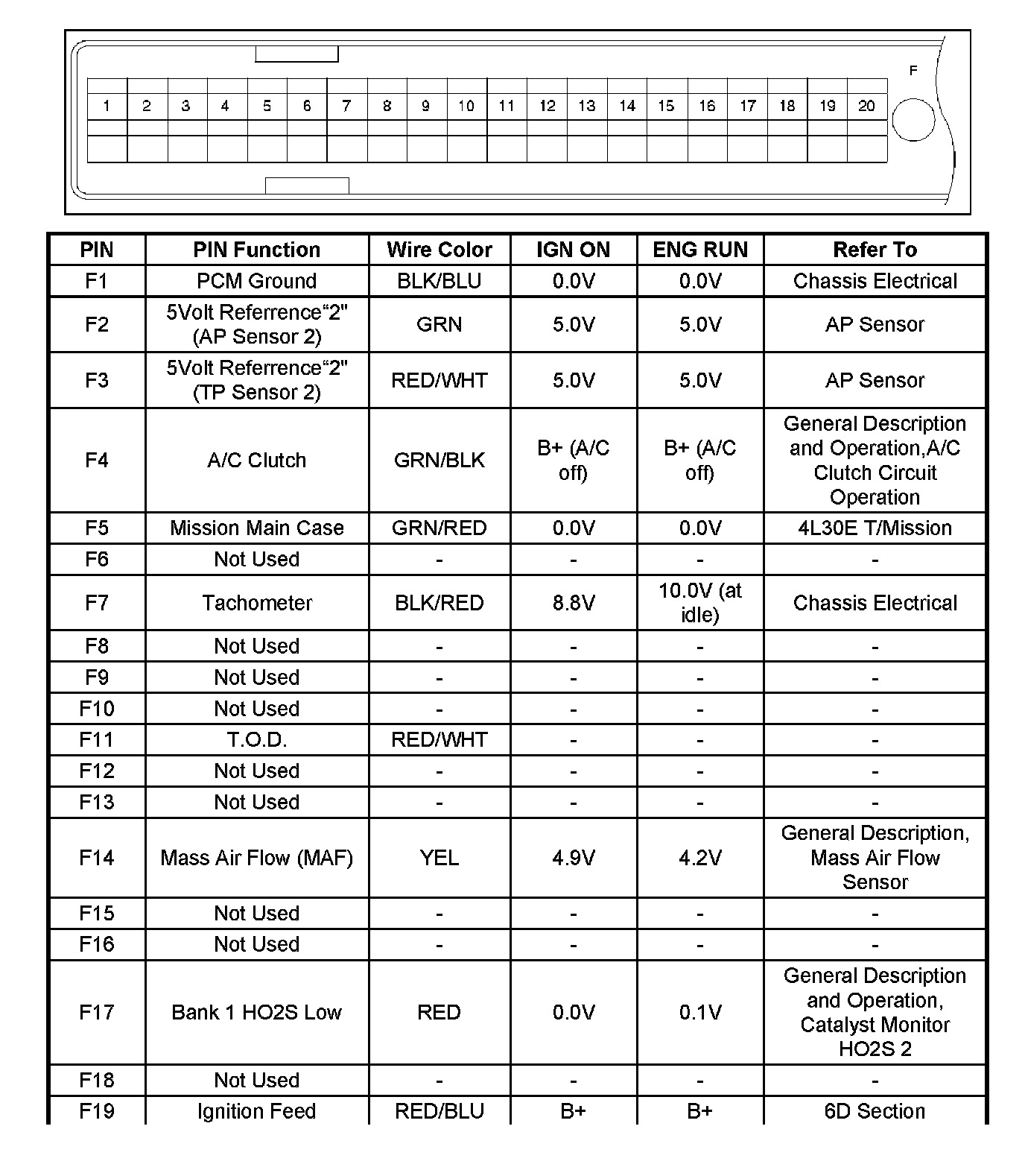

PCM Pinout Table, 80-Way Blue Connector - Row "F1 - F20" Part - 1:

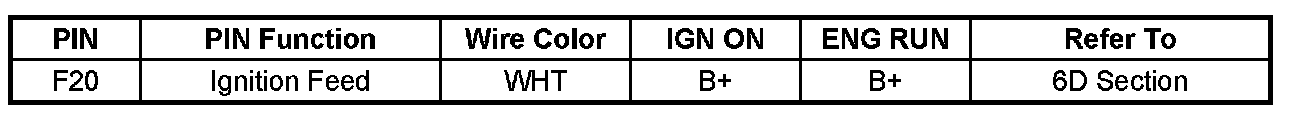

PCM Pinout Table, 80-Way Blue Connector - Row "F1 - F20" Part - 2:

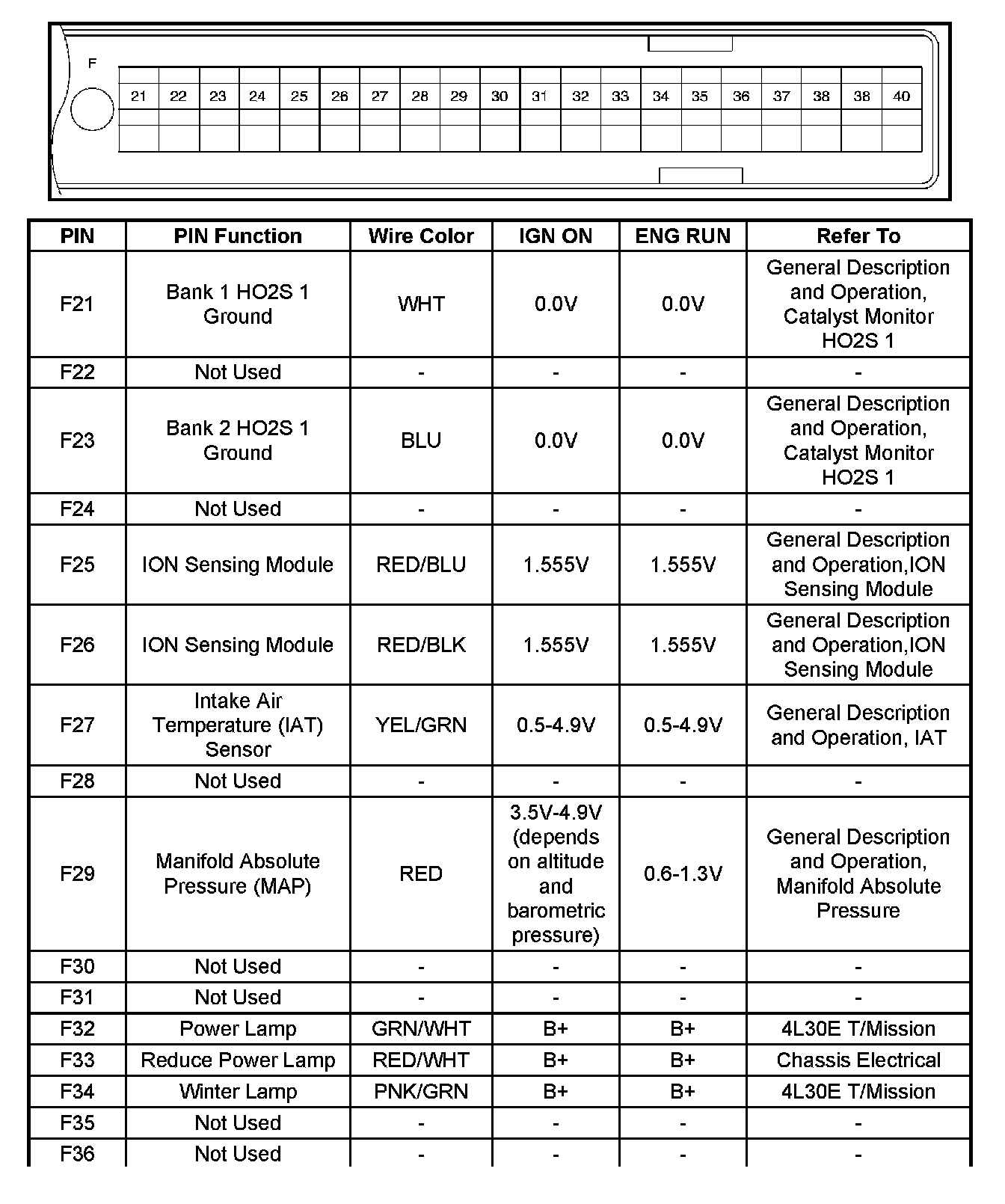

PCM Pinout Table, 80-Way Blue Connector - Row "F20 - 40" Part - 1:

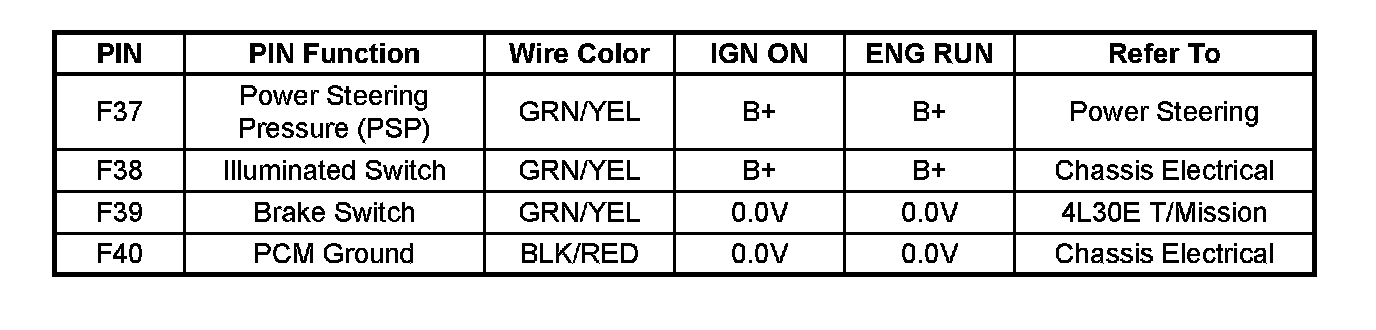

PCM Pinout Table, 80-Way Blue Connector - Row "F20 - 40" Part - 2:

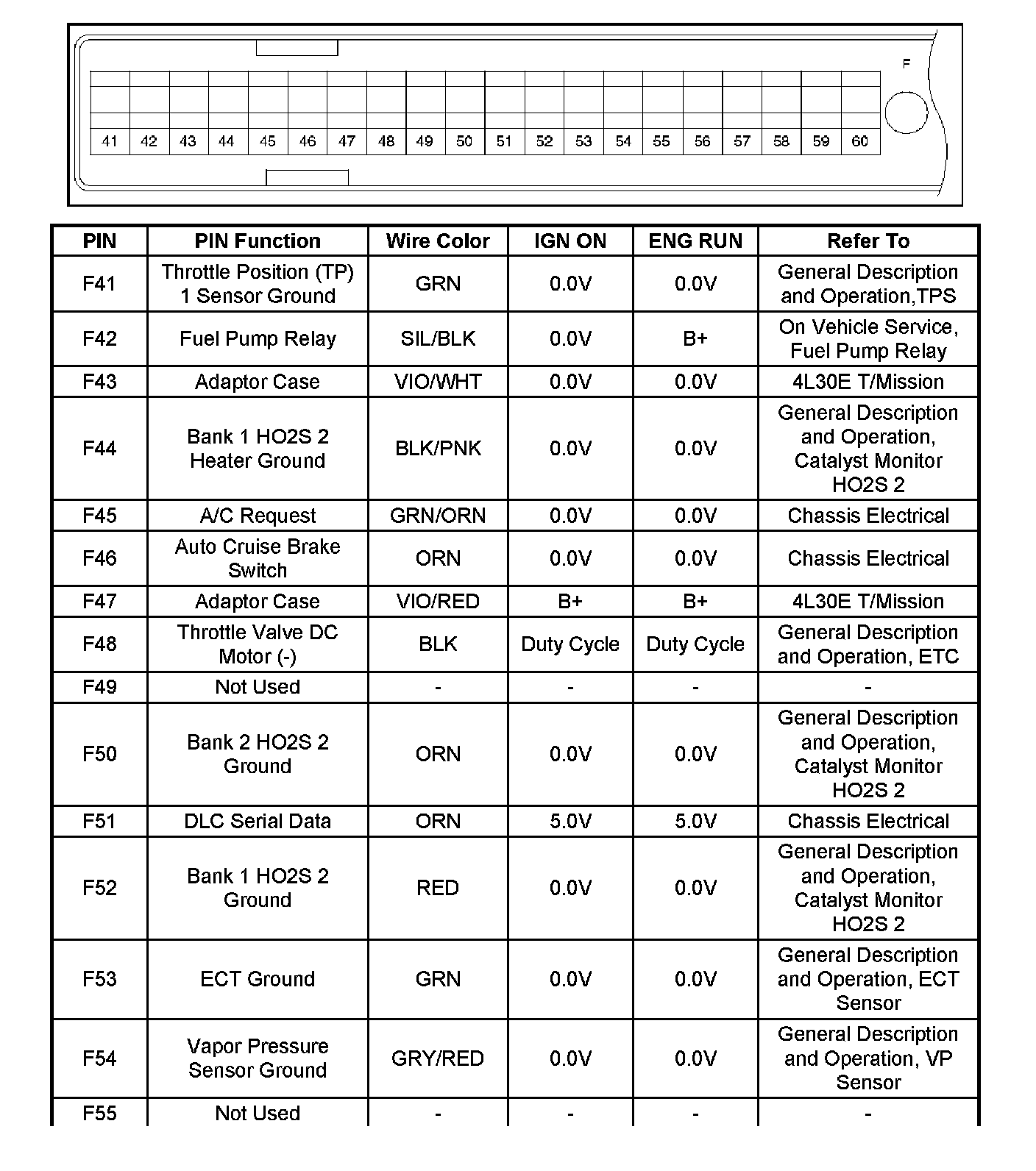

PCM Pinout Table, 80-Way Blue Connector - Row "F41 - 60" Part - 1:

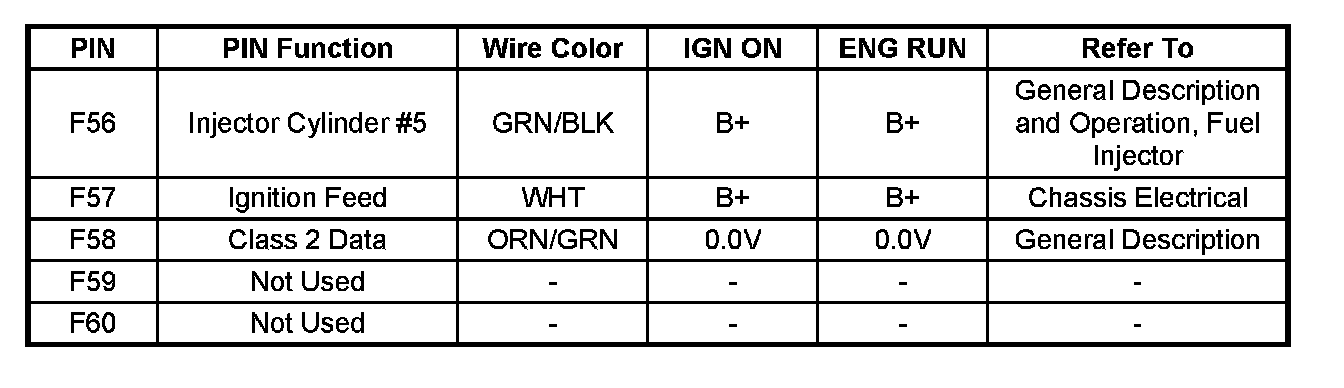

PCM Pinout Table, 80-Way Blue Connector - Row "F41 - 60" Part - 2:

PCM Pinout Table, 80-Way Blue Connector - Row "F61 - 80" Part - 1:

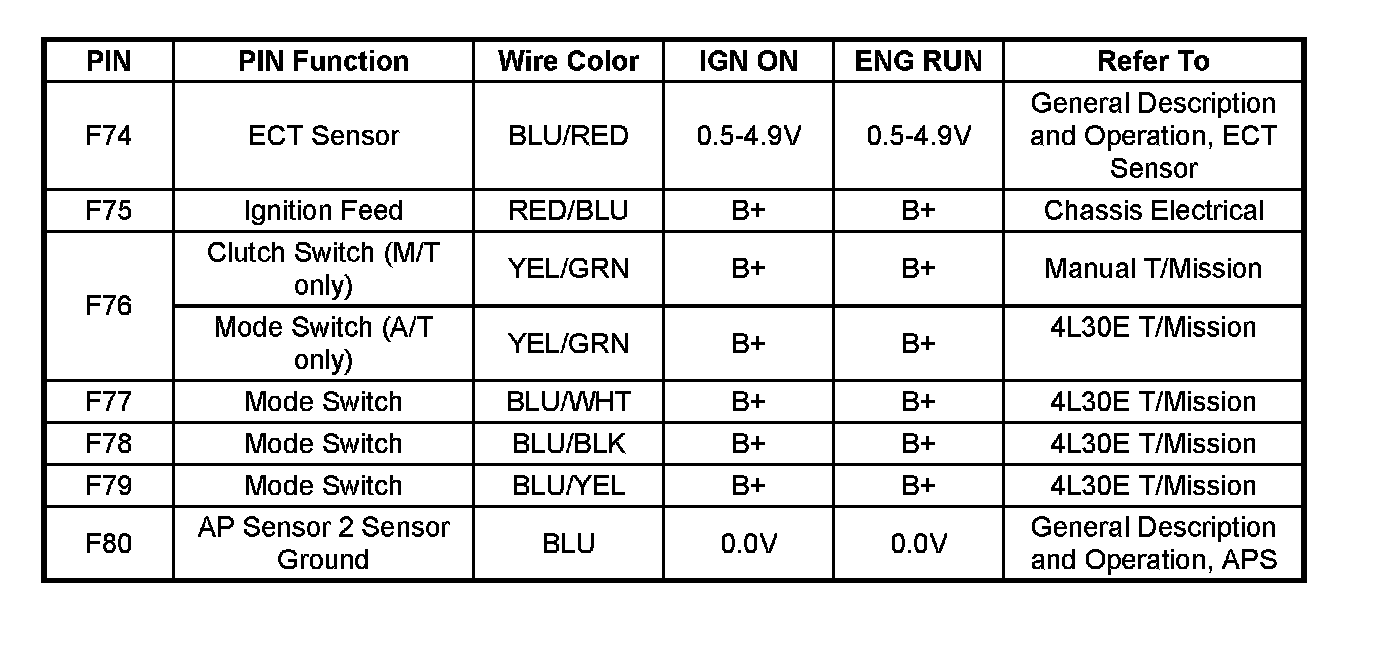

PCM Pinout Table, 80-Way Blue Connector - Row "F61 - 80" Part - 2:

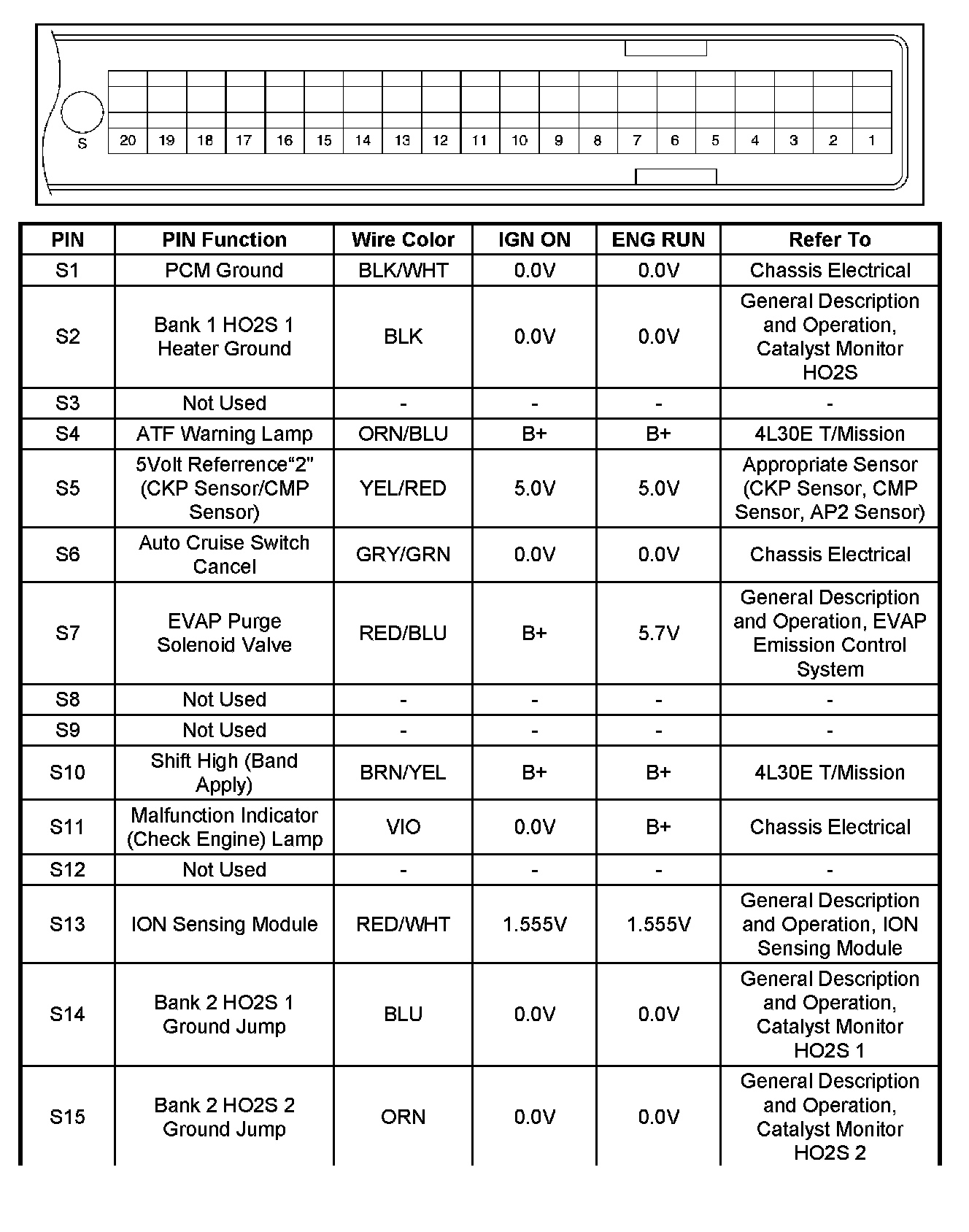

PCM Pinout Table, 80-Way Red Connector - Row "S1 - 20":

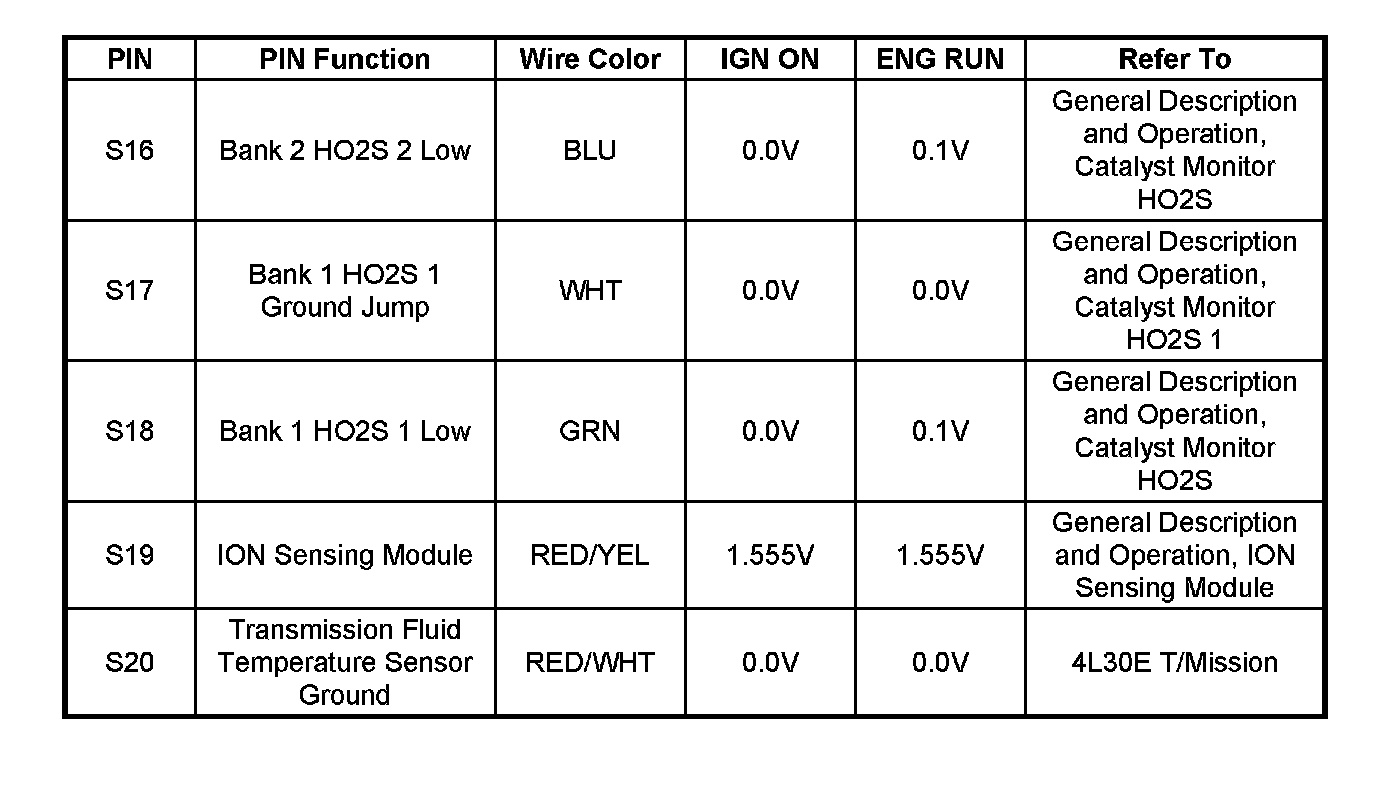

PCM Pinout Table, 80-Way Red Connector - Row "S1 - 20" Part - 2:

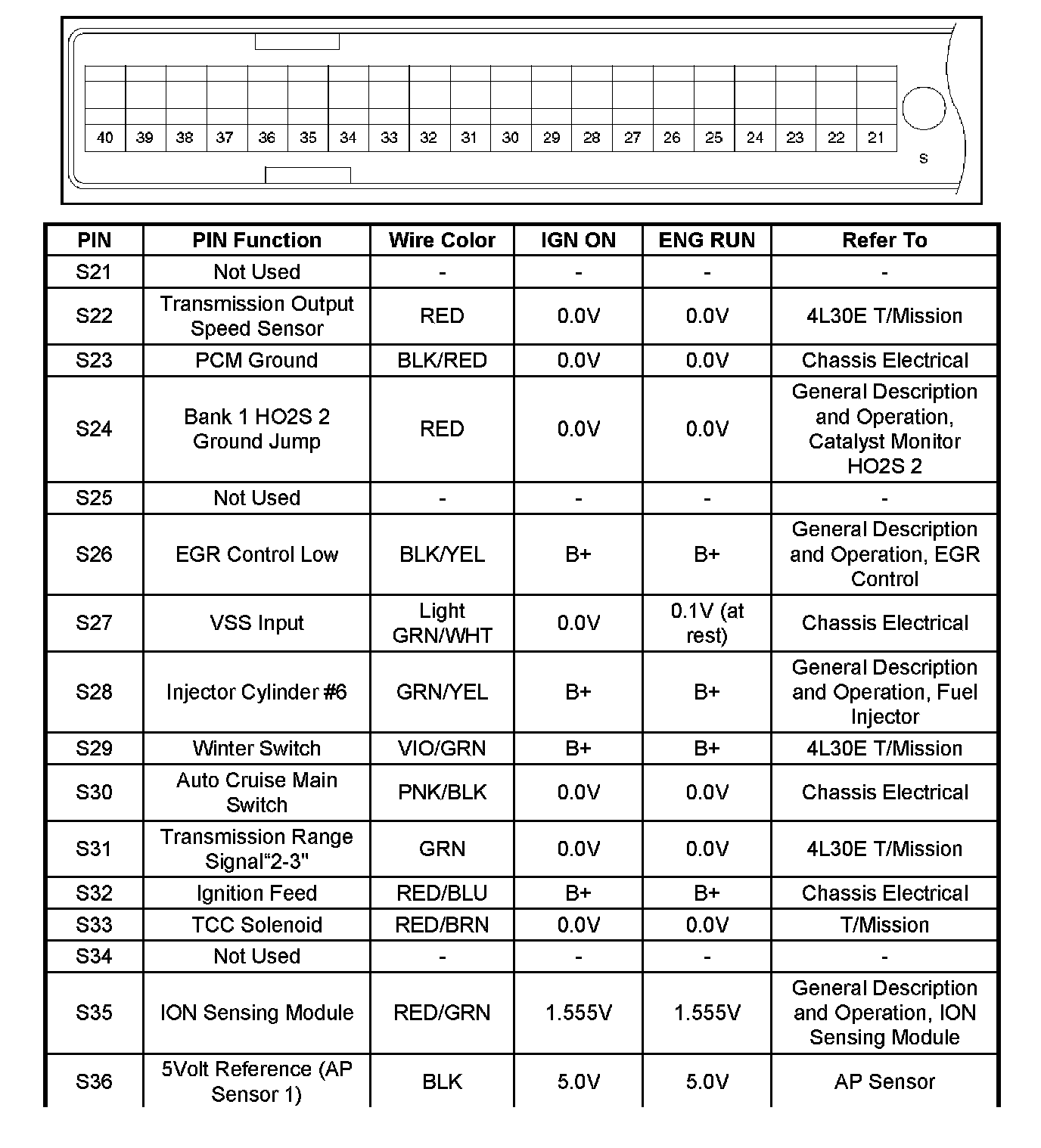

PCM Pinout Table, 80-Way Red Connector - Row "S21 - 40" Part - 1:

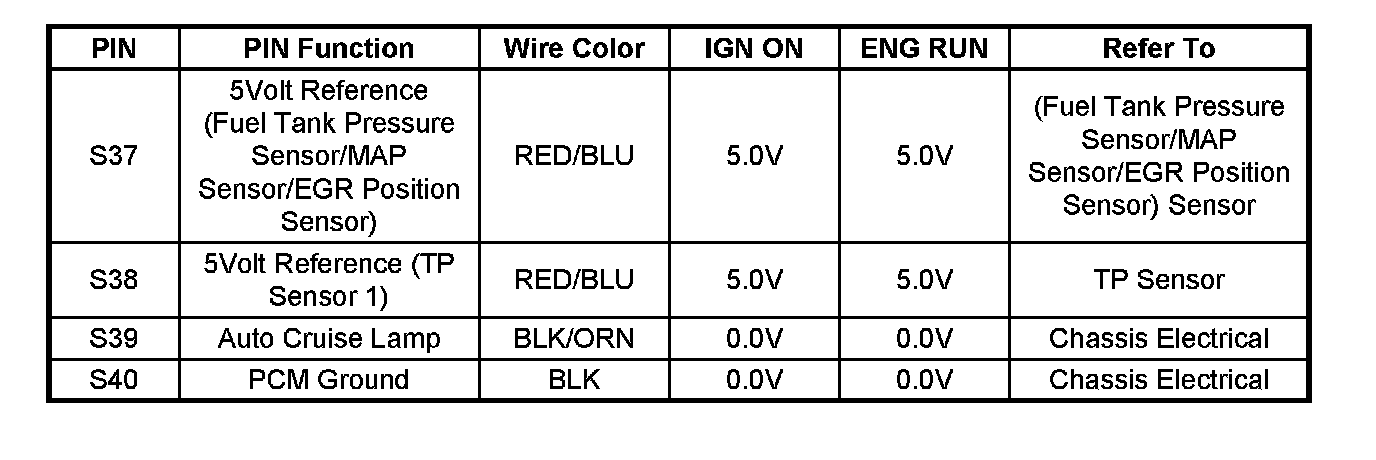

PCM Pinout Table, 80-Way Red Connector - Row "S21 - 40" Part - 2:

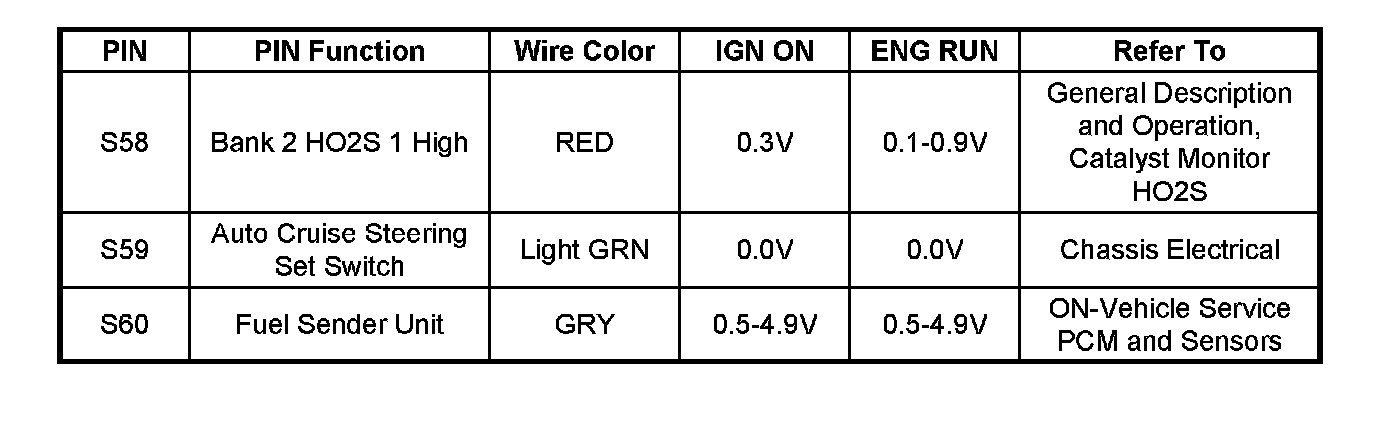

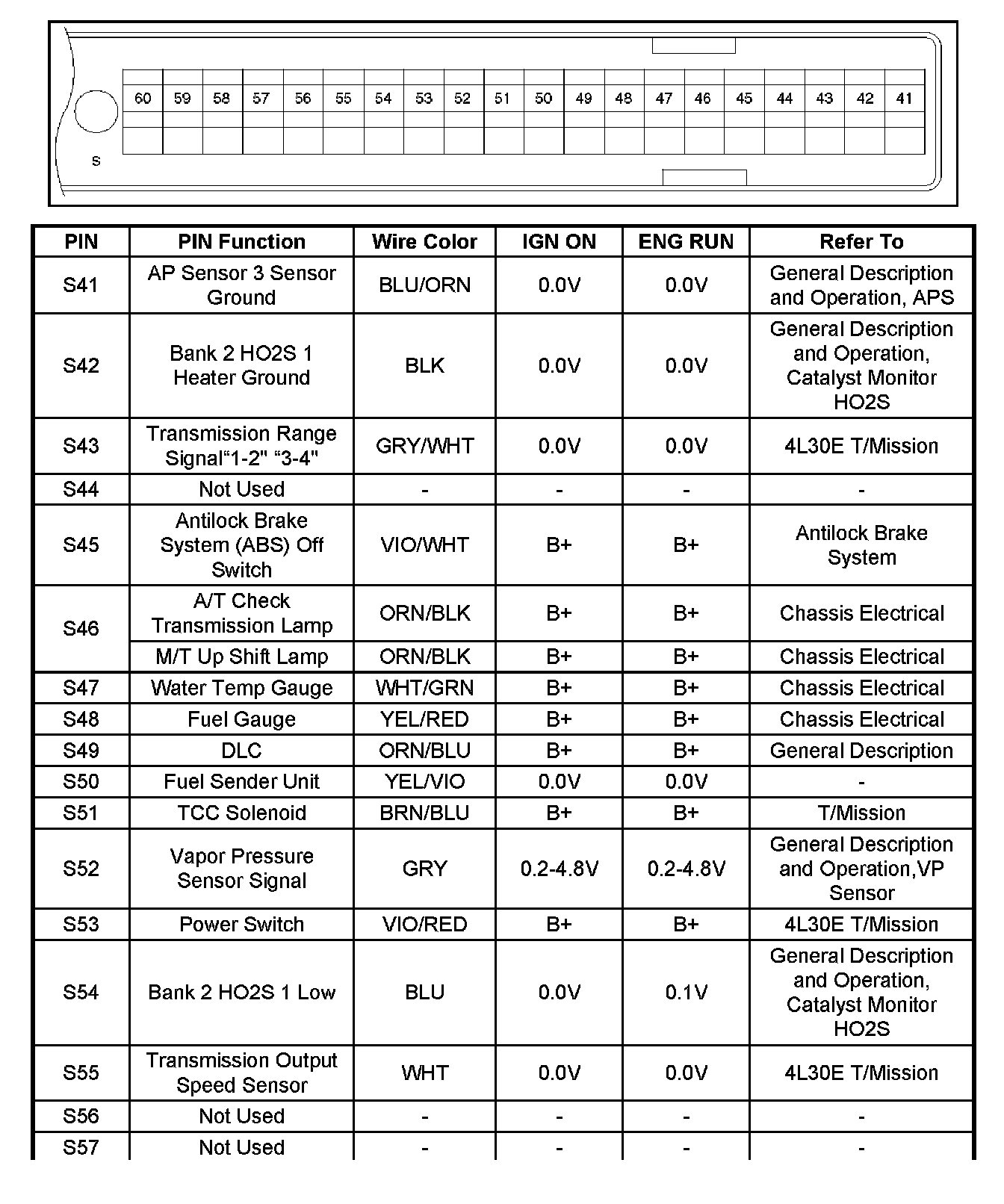

PCM Pinout Table, 80-Way Red Connector - Row "S41 - 60" Part - 1:

PCM Pinout Table, 80-Way Red Connector - Row "S41 - 60" Part - 2:

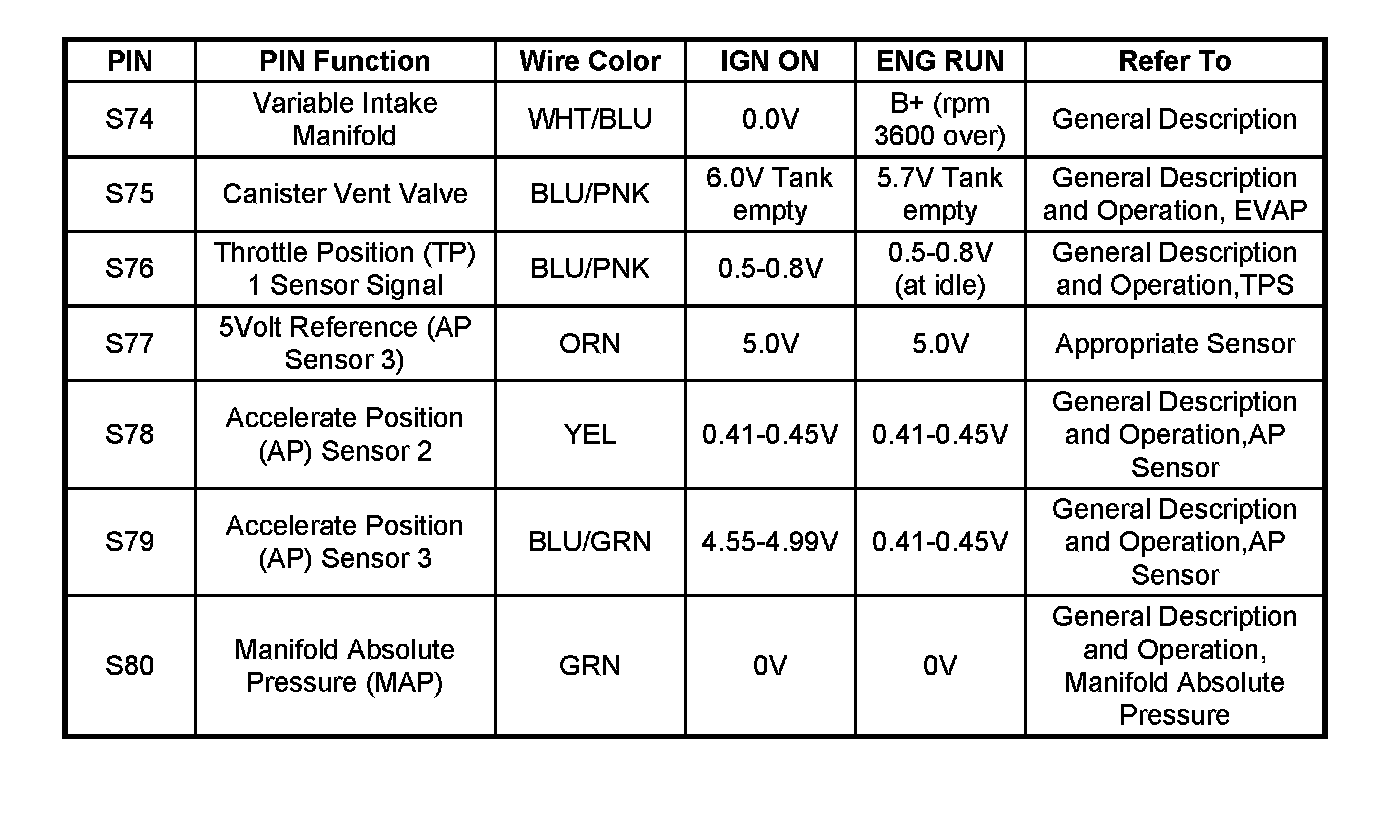

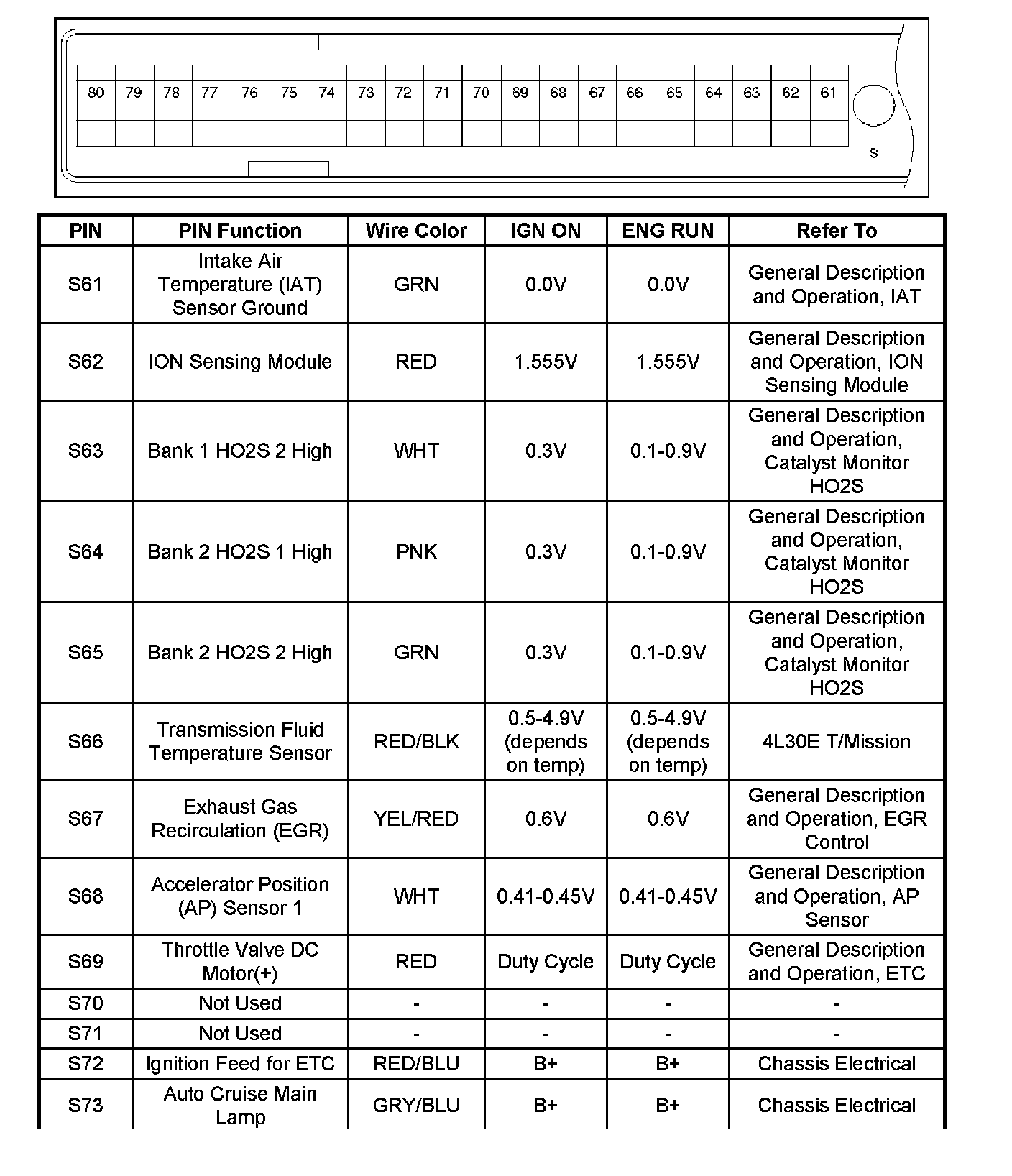

PCM Pinout Table, 80-Way Red Connector - Row "S61 - 80" Part - 1:

PCM Pinout Table, 80-Way Red Connector - Row "S61 - 80" Part - 2:
