Engine Lubrication

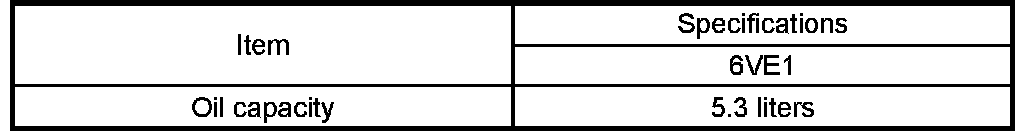

General Specification

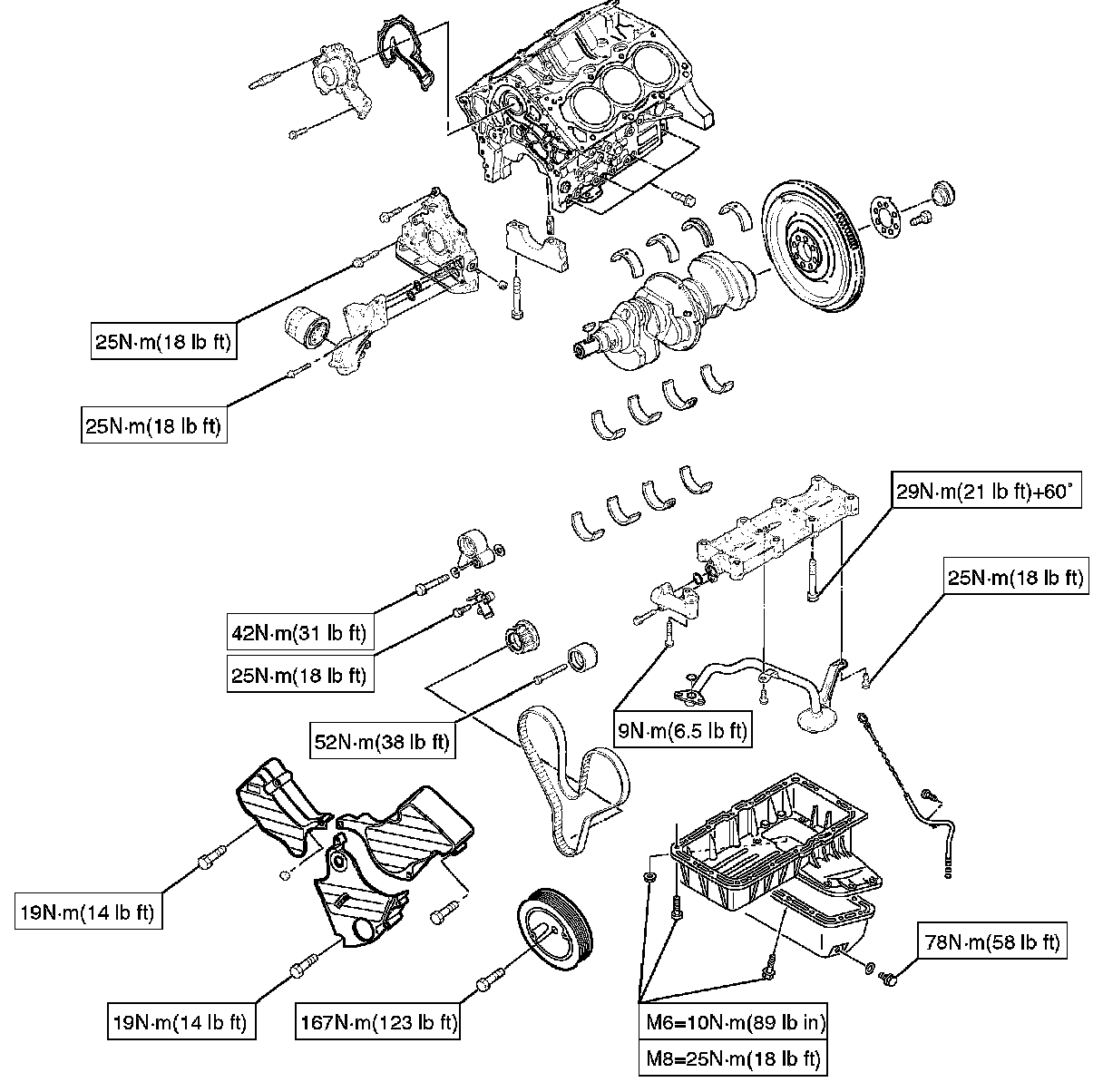

Torque Specifications





Crankcase, Oil pan, Timing belt tensioner, Timing pulley, timing belt cover, Oil pump, Oil gallery, Oil
