Clutch Switch: Service and Repair
CLUTCH START SWITCH

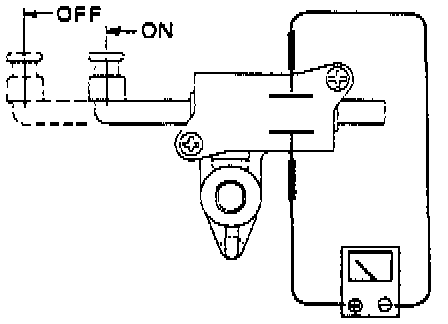

Test for continuity between the terminals. If continuity is not as specified, replace the switch.
ON : Pedal depressed / Continuity
OFF : Pedal released / No continuity
