Windshield Wiper Arm/Blade
Windshield Wiper Arm/BladeRemoval

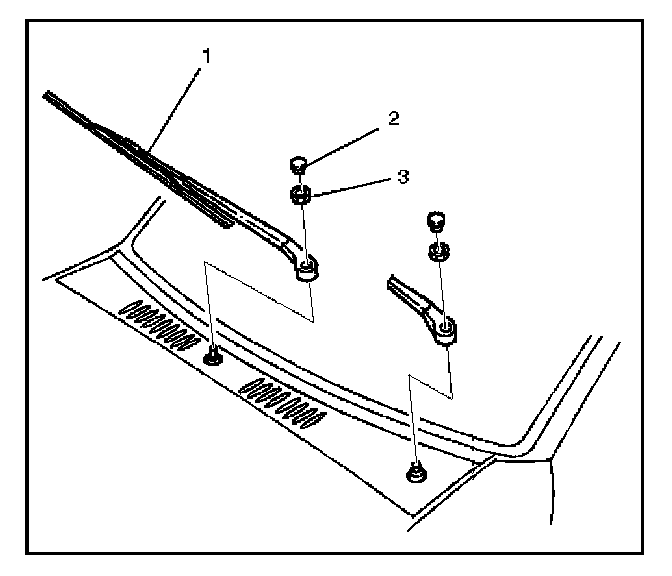

1. Pry the cap (2) off with the tip of a screwdriver.
2. Remove the nut (3).
3. Remove the wiper/blade (1).
Installation
To install, follow the removal steps in the reverse order, noting the following points.
1. Wiper arm/blade
- Before installing the wiper arm/blade to the shaft, confirm that the motor stops at the auto-stop position.

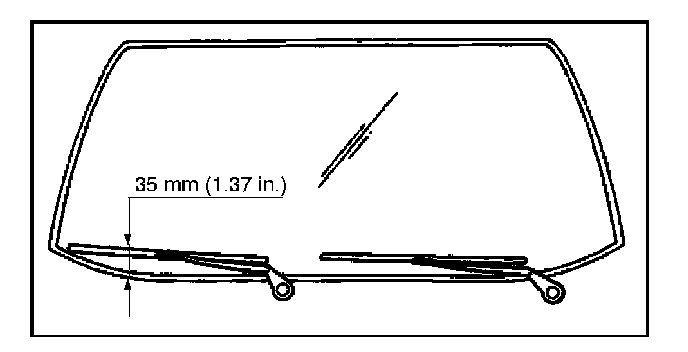

- Set the wiper arm/blade so that the tips of both blades are positioned about 35 mm (1.37 in) from the upper edge of the cowl cover as shown in the figure.
- Tighten the nuts to the specified torque.
Torque: 31 N.m (23 lb ft)
