System Diagram
ABS Connector End ViewsElectronic Brake Control Module (EBCM) C1:

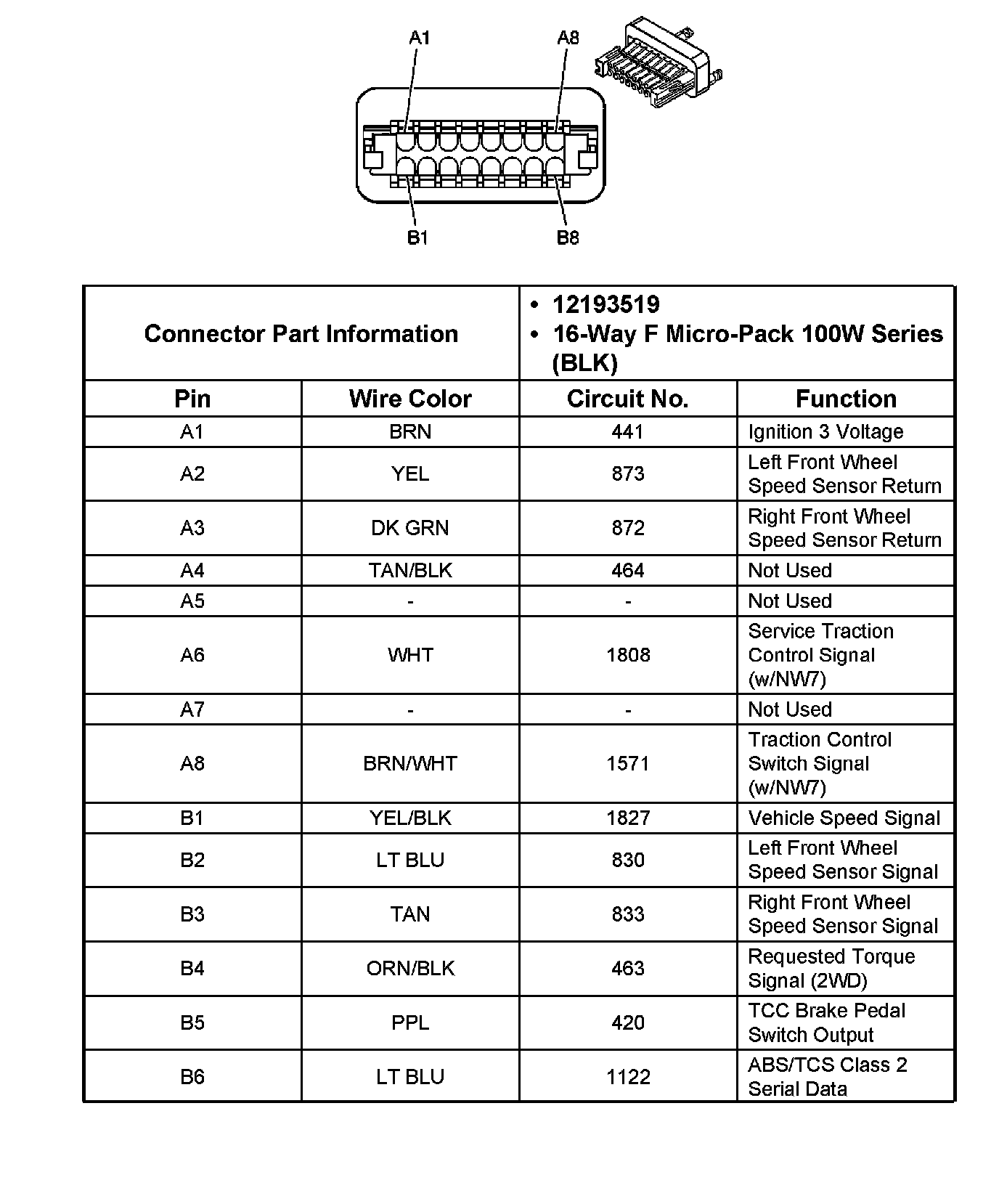

Electronic Brake Control Module (EBCM) C2 (1 Of 2):

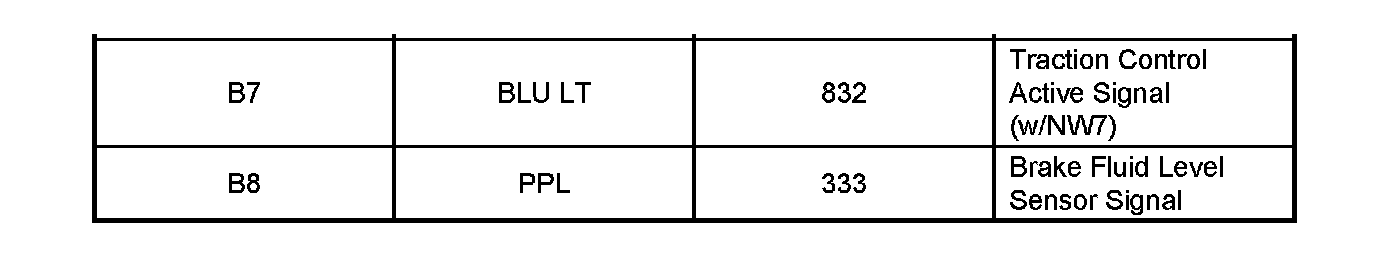

Electronic Brake Control Module (EBCM) C2 (2 Of 2):

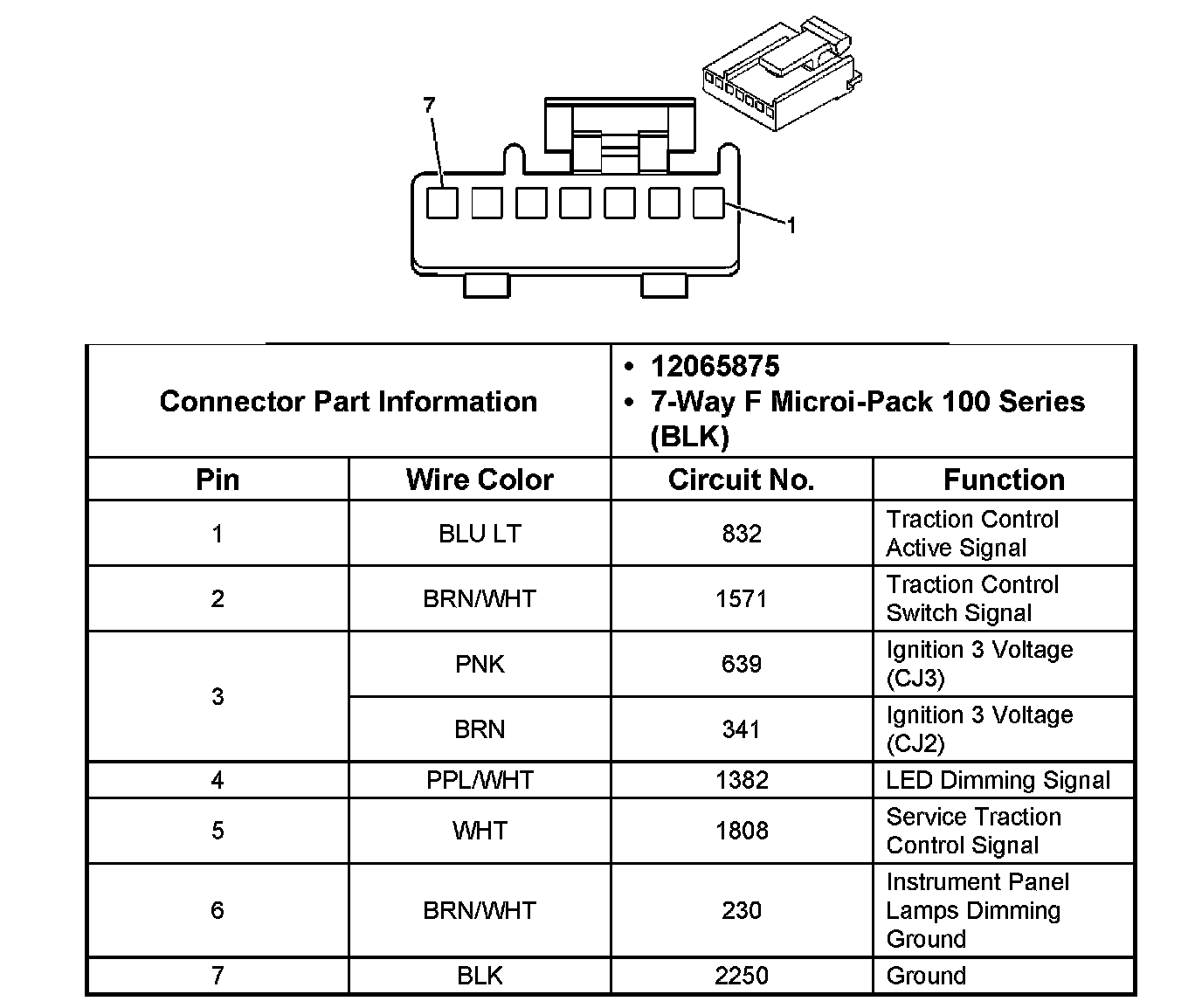

Traction Control Switch:

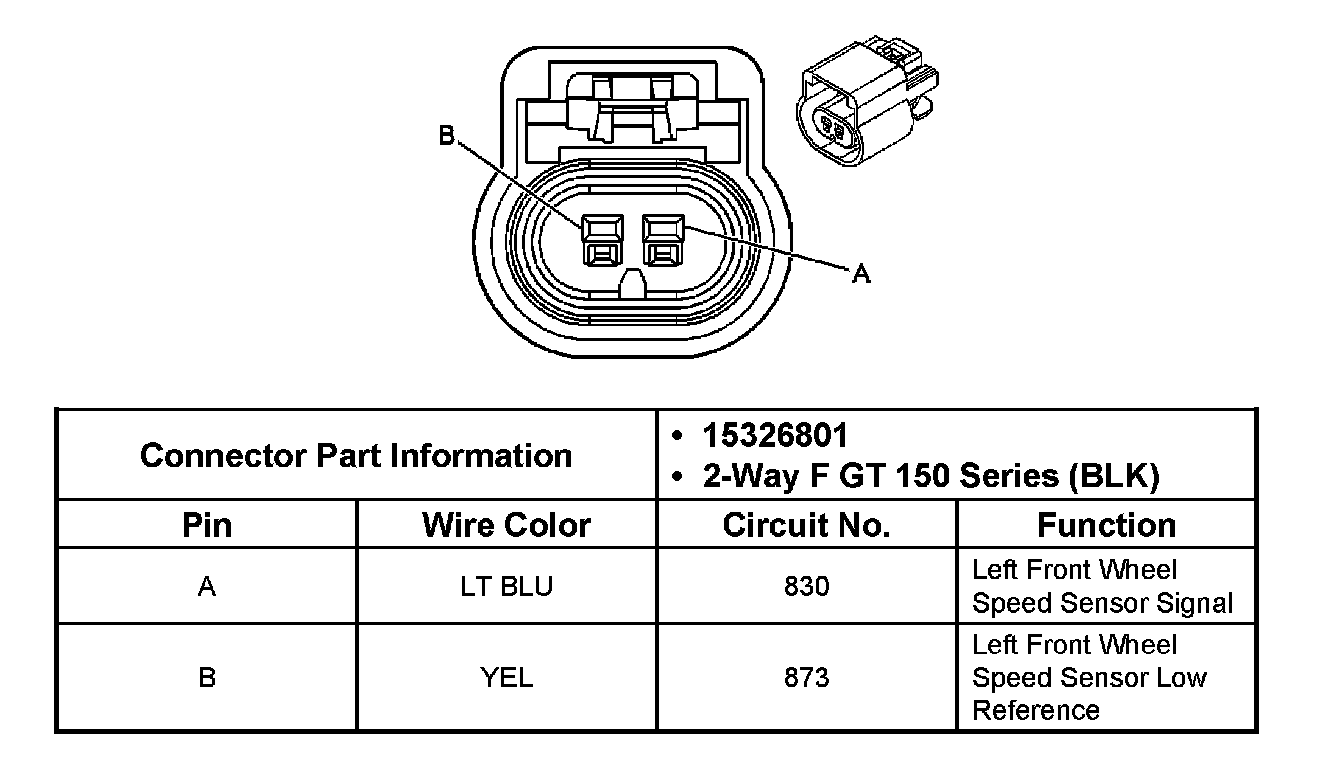

Wheel Speed Sensor (WSS) - LF:
Wheel Speed Sensor (WSS) - RF:
