Automatic Transmission 20-Way Inline Connector End View

Automatic Transmission 20-Way Inline Connector End View

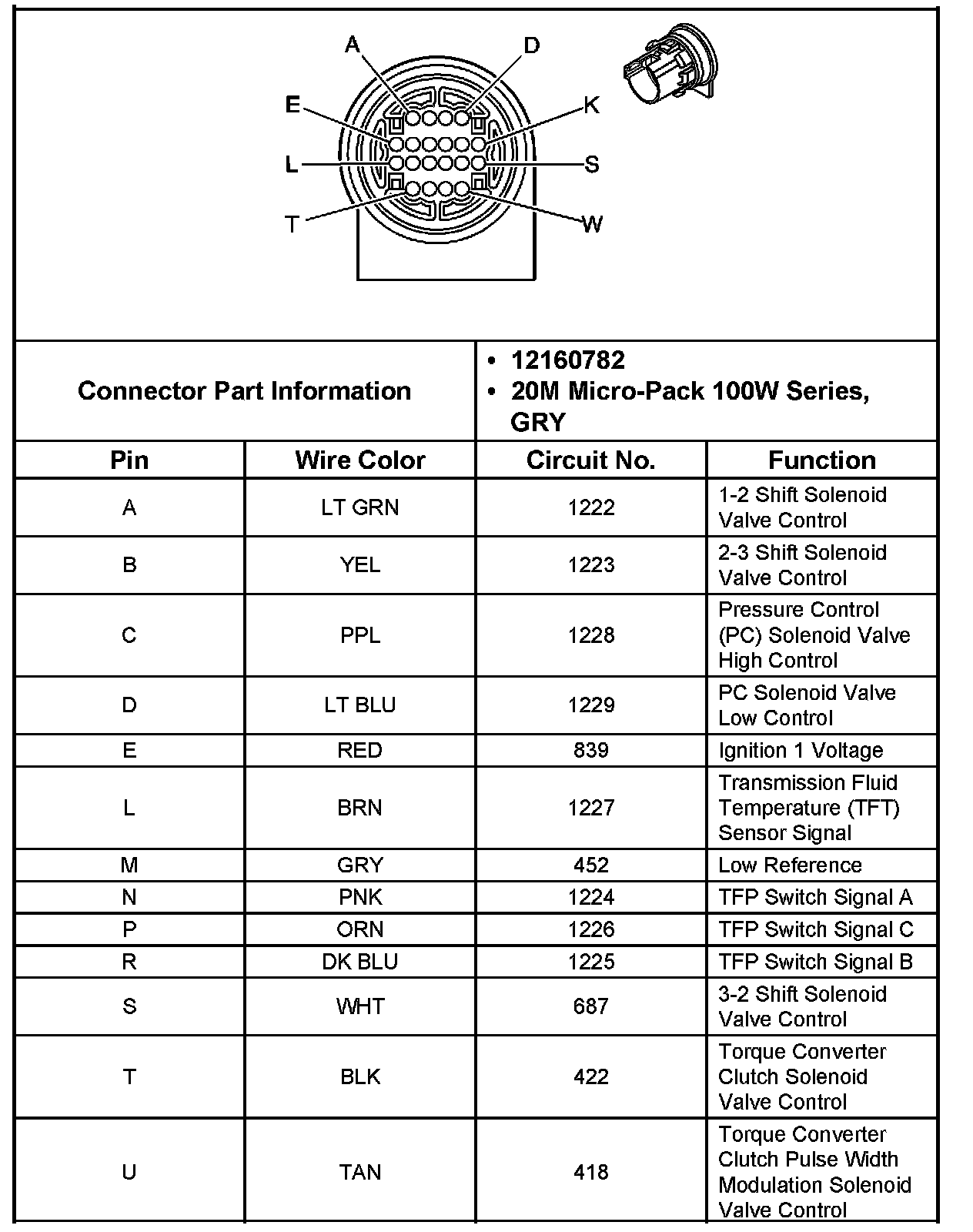

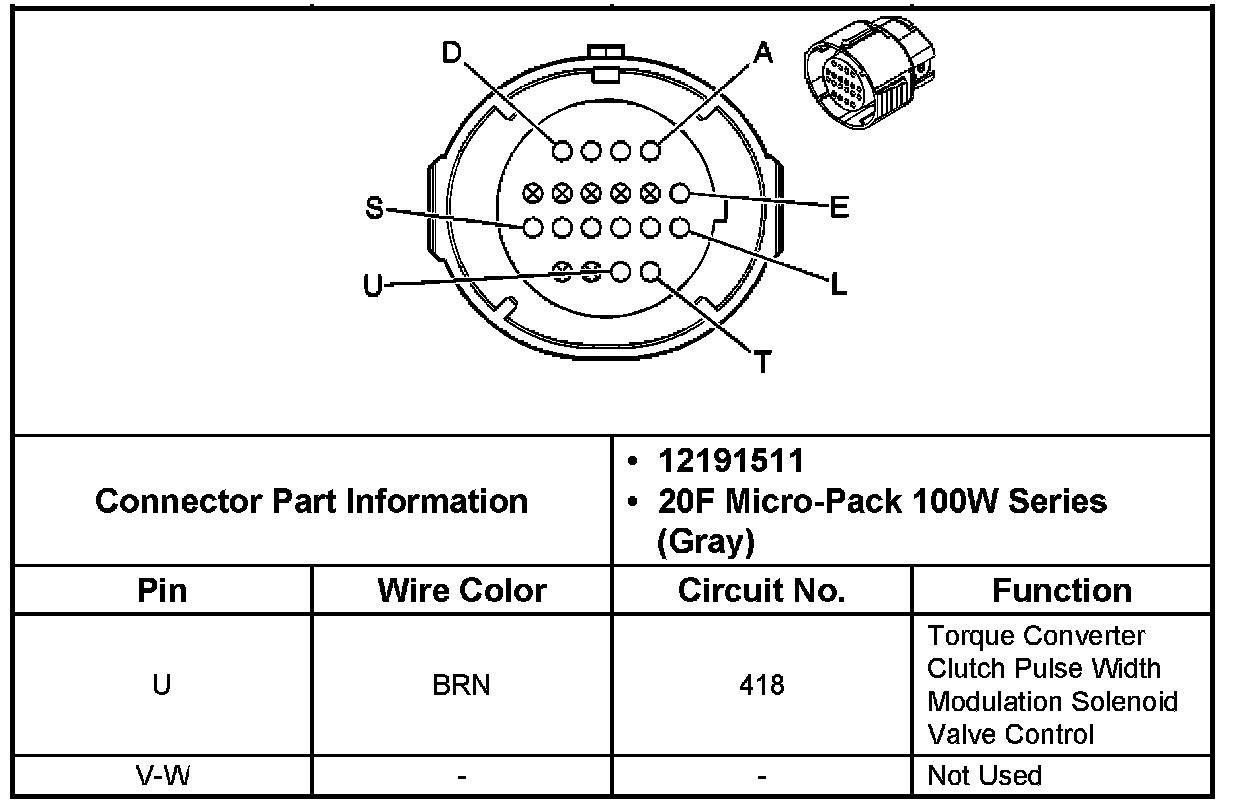

AT Inline 20-Way Connector, Engine Side:




AT Inline 20-Way Connector, Engine Side:

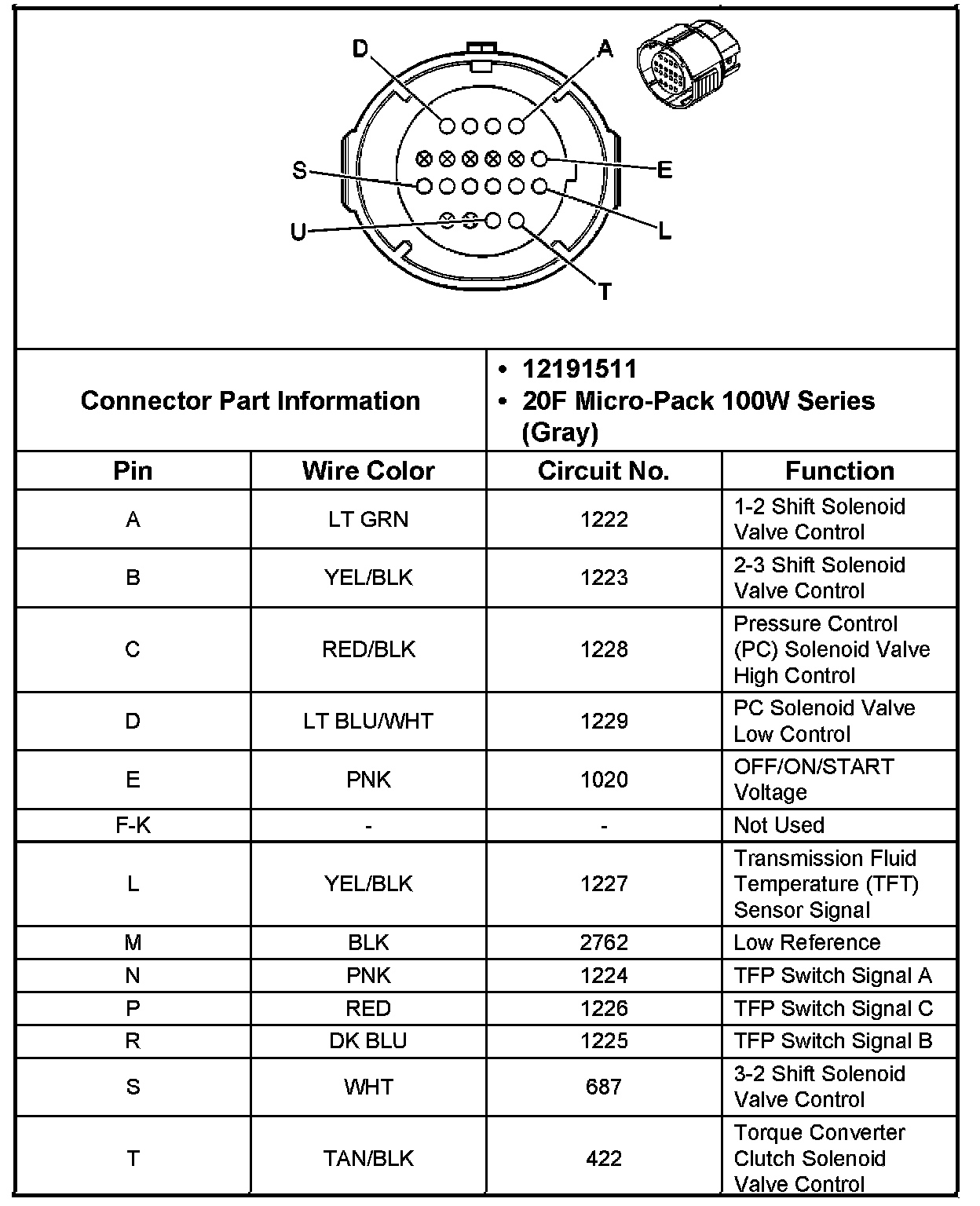

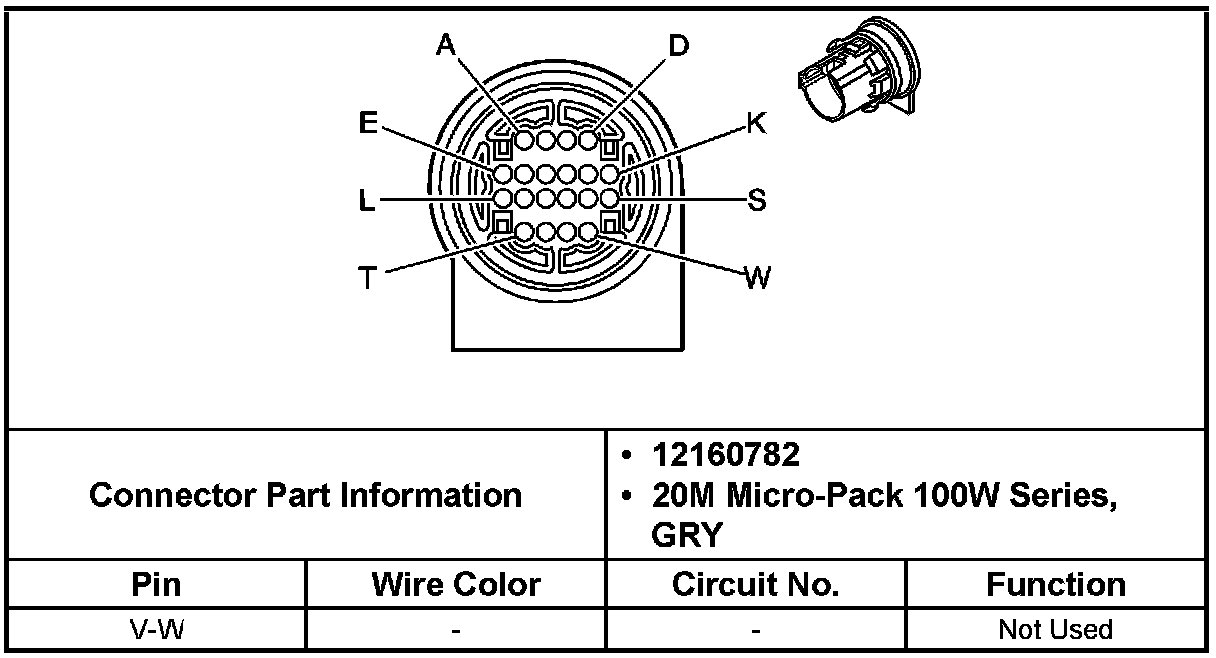

AT Inline 20-Way Connector, Transmission Side:




AT Inline 20-Way Connector, Transmission Side:
