Automatic Transmission Internal Connector End Views

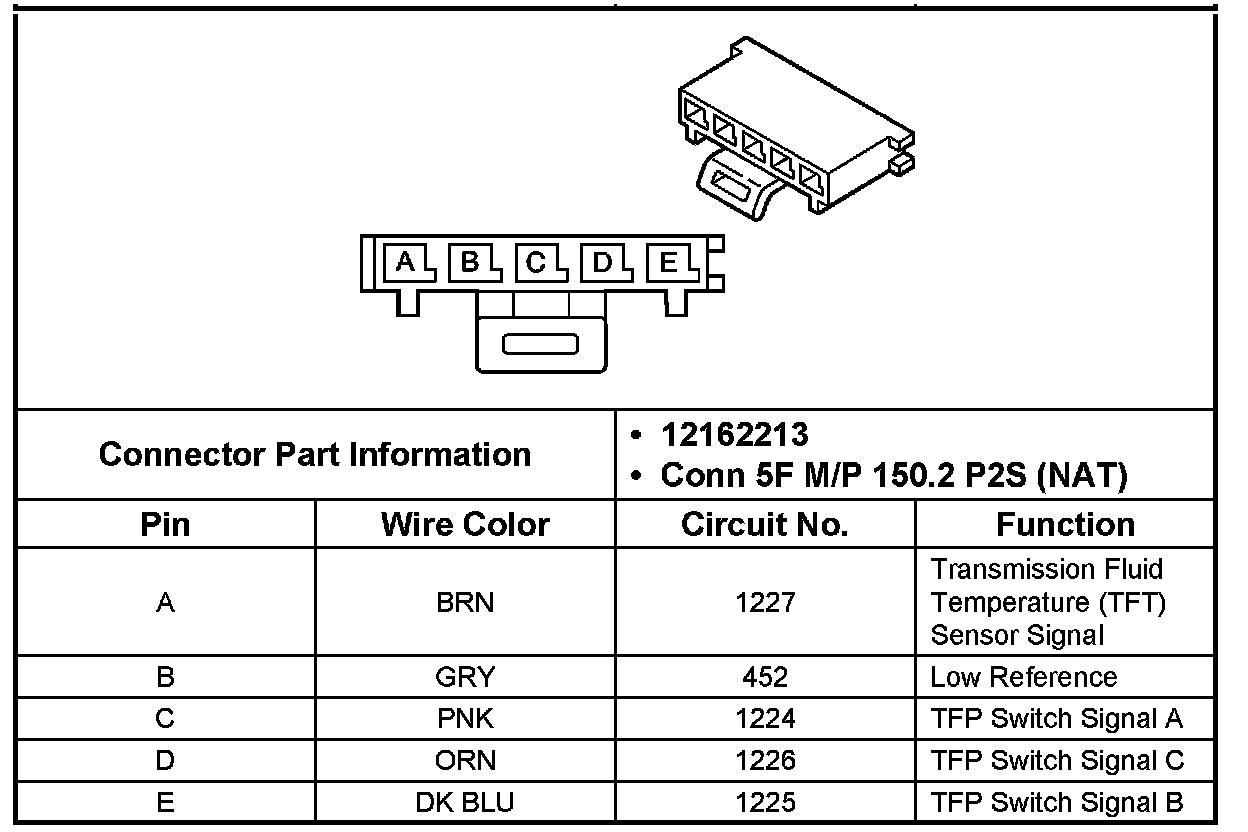

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch Connector, Wiring Harness Side:

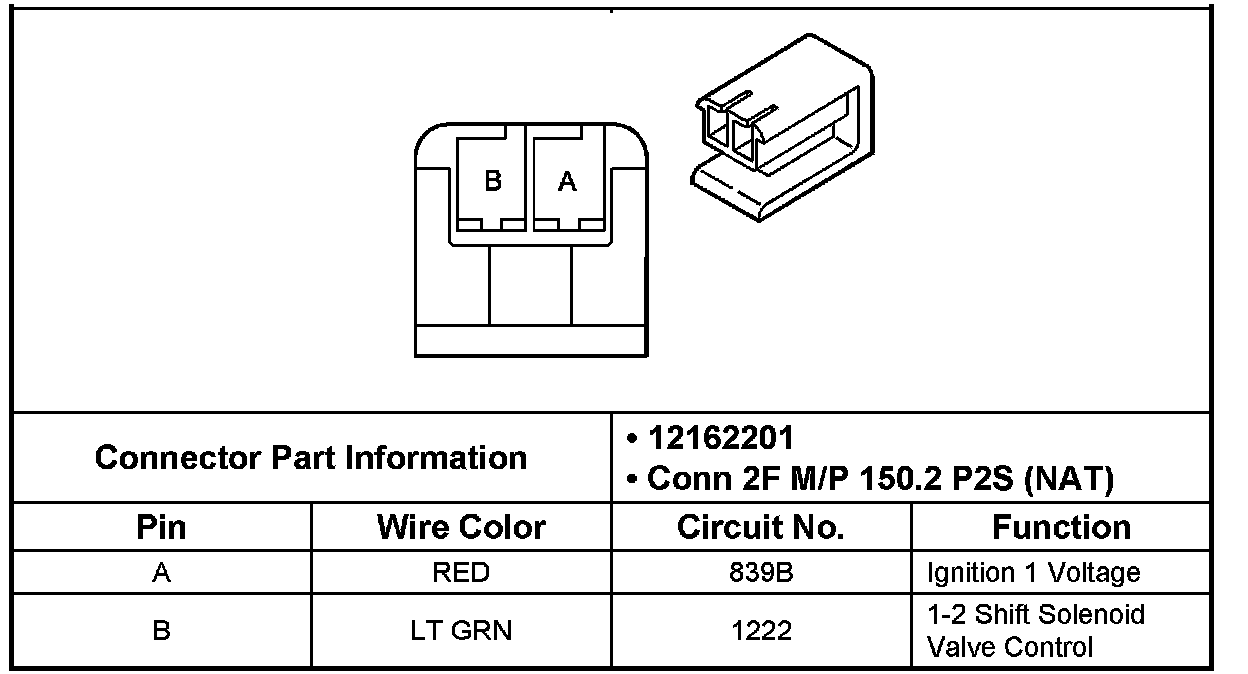

1-2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side:

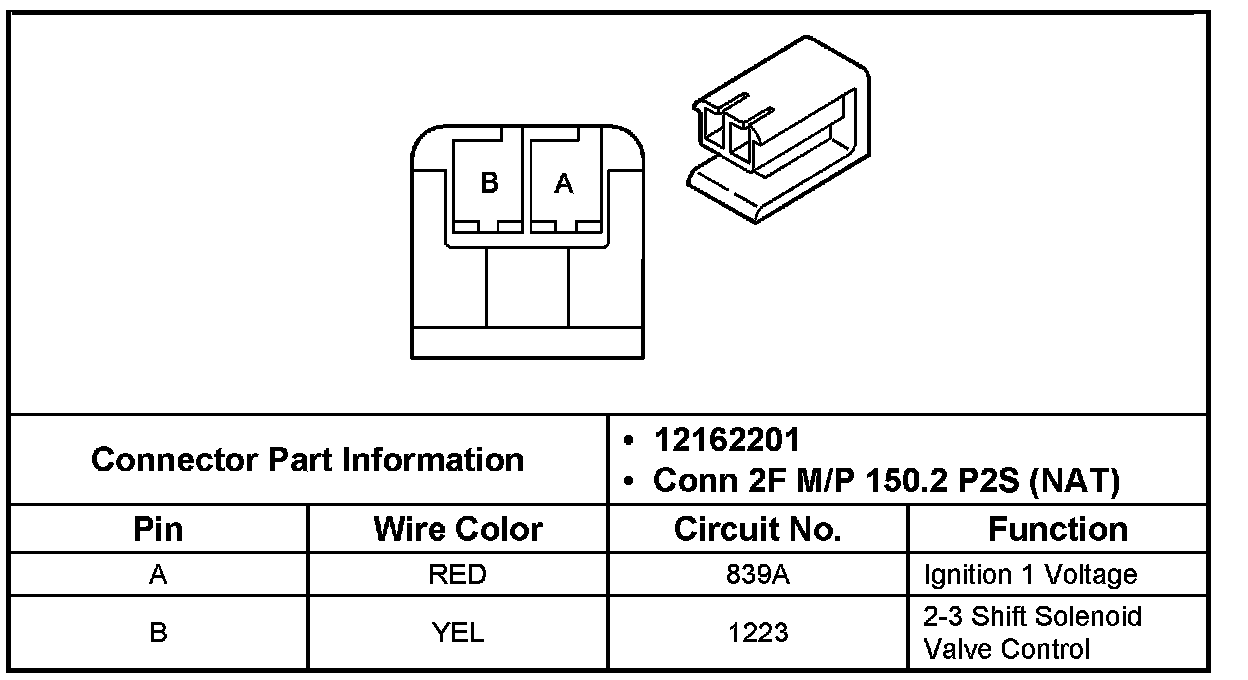

2-3 Shift Solenoid (SS] Valve Connector. Wiring Harness Side:

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Connector, Wiring Harness Side:

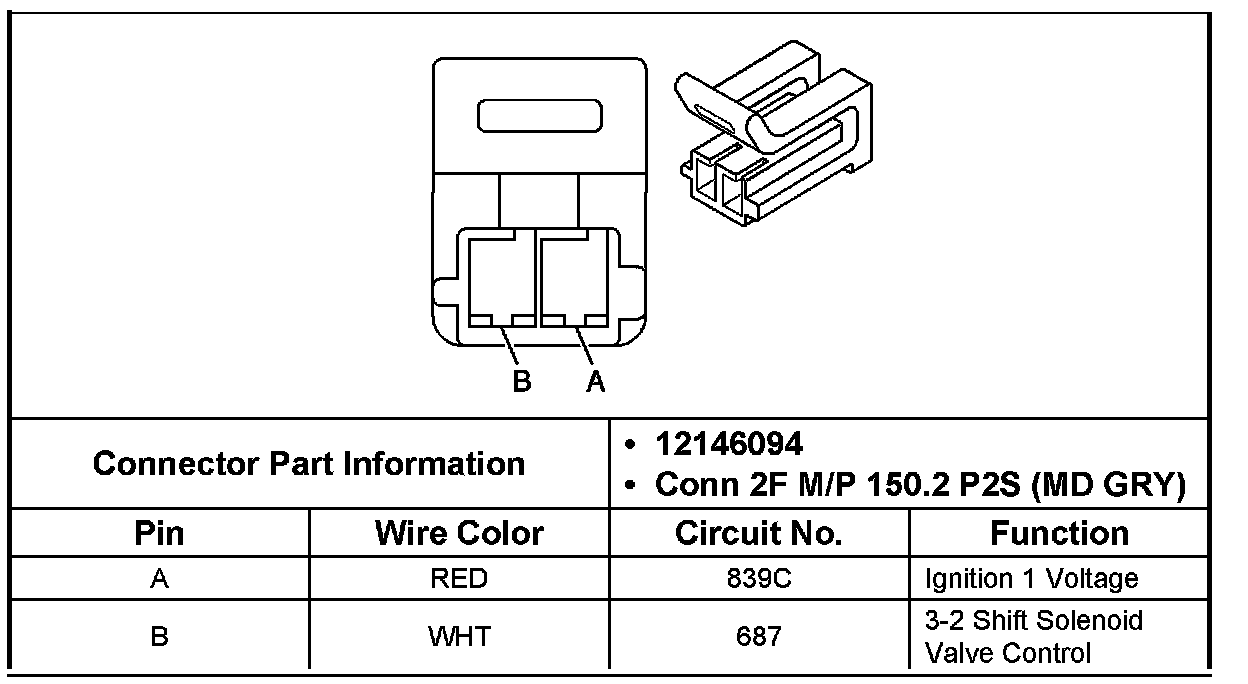

3-2 Shift Solenoid (SS) Valve Assembly Connector, Wiring Harness Side:

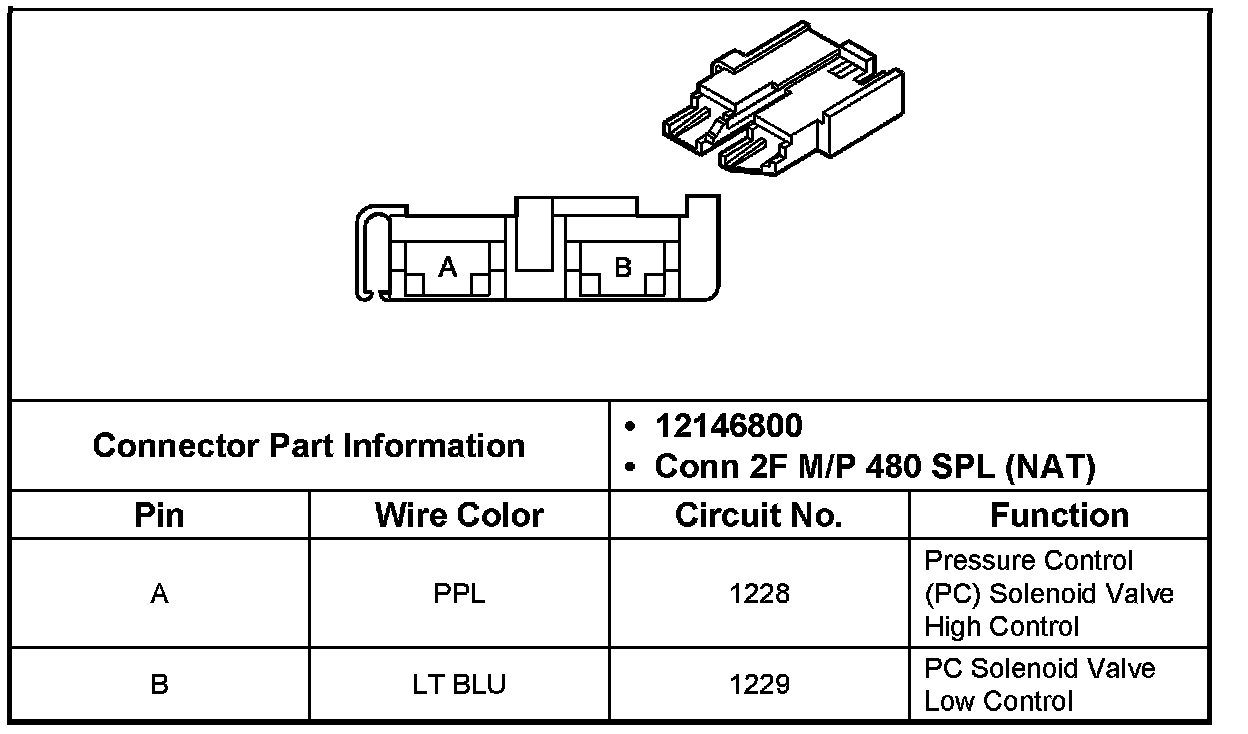

Pressure Control (PC) Solenoid Valve Connector. Wiring Harness Side:

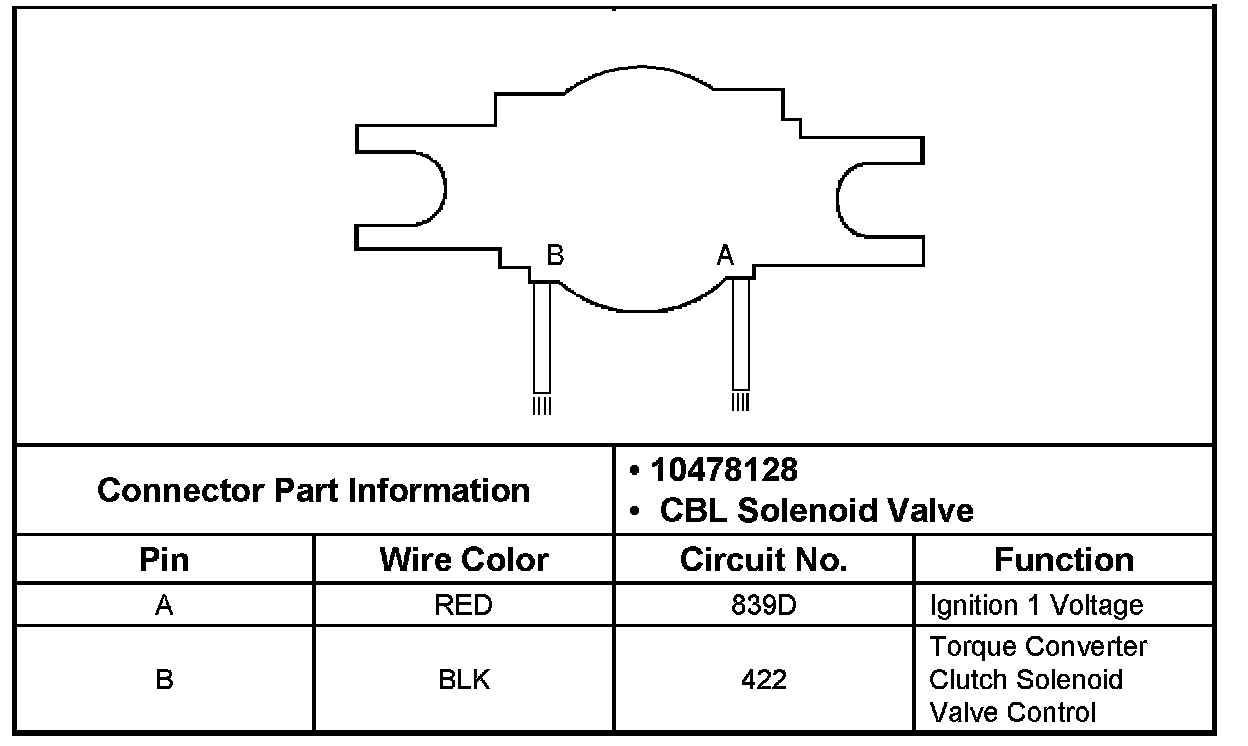

Torque Converter Clutch (TCC) Solenoid Valve Connector, Wiring Harness Side:
