Cooling System Connector End Views
Cooling System Connector End Views
Cooling System
Connector End Views

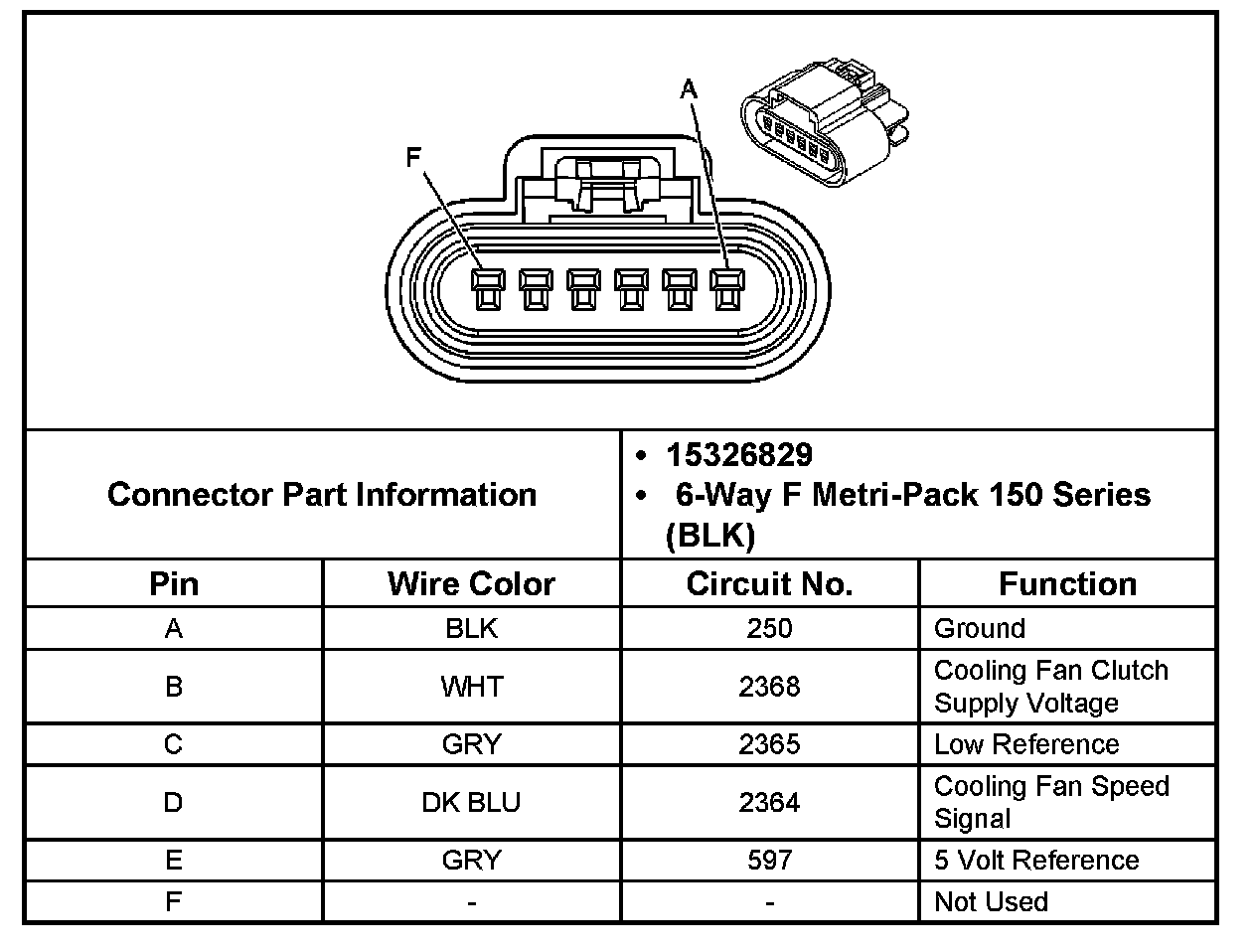

Cooling Fan:
