Ground Distribution

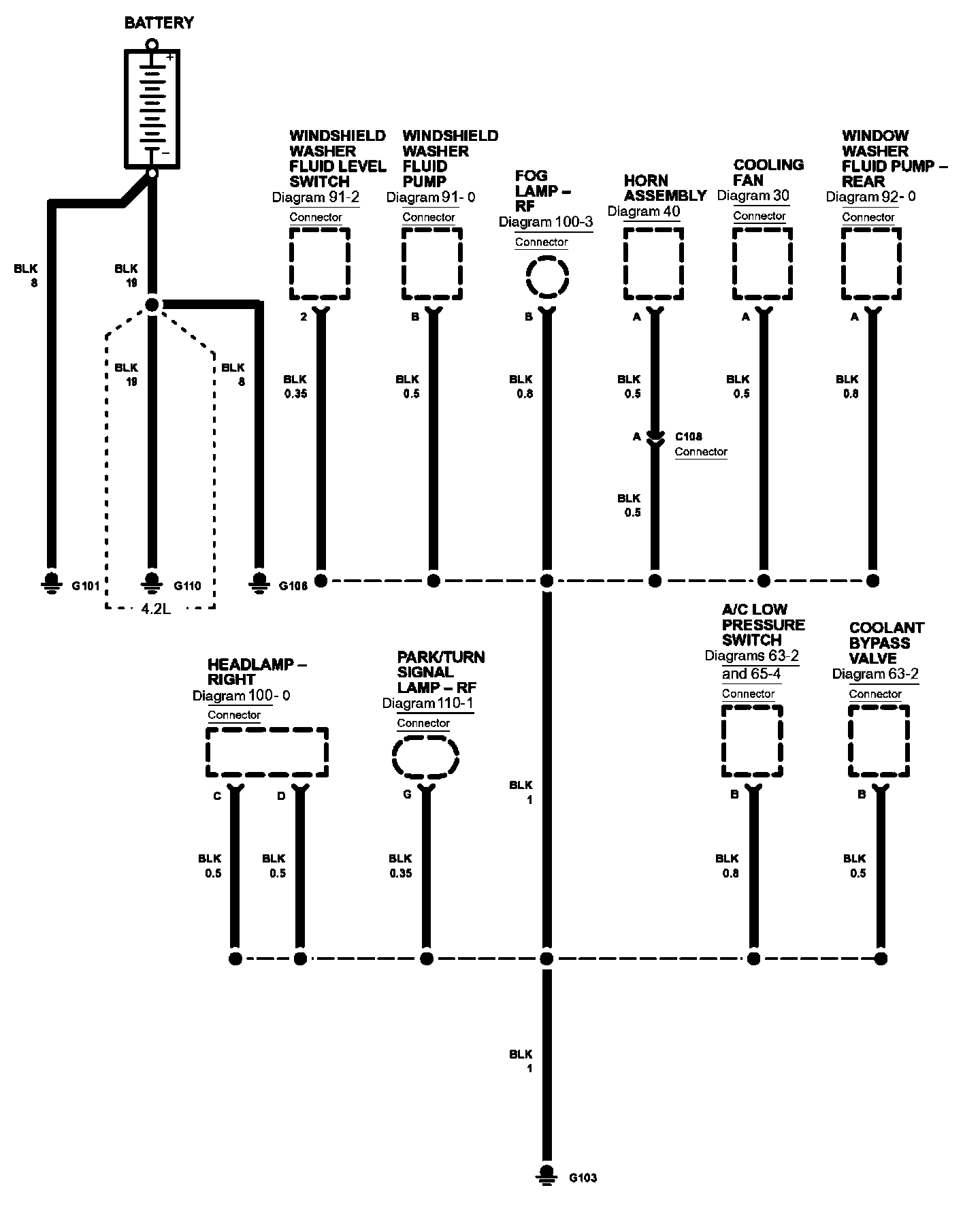

Diagram 14-0 (Ground G101, G103, G106 & G110):

Diagram 14-1 (Ground G102, G104 & G105):

Diagram 14-2 (Ground G107):

Diagram 14-3 (Ground G108):

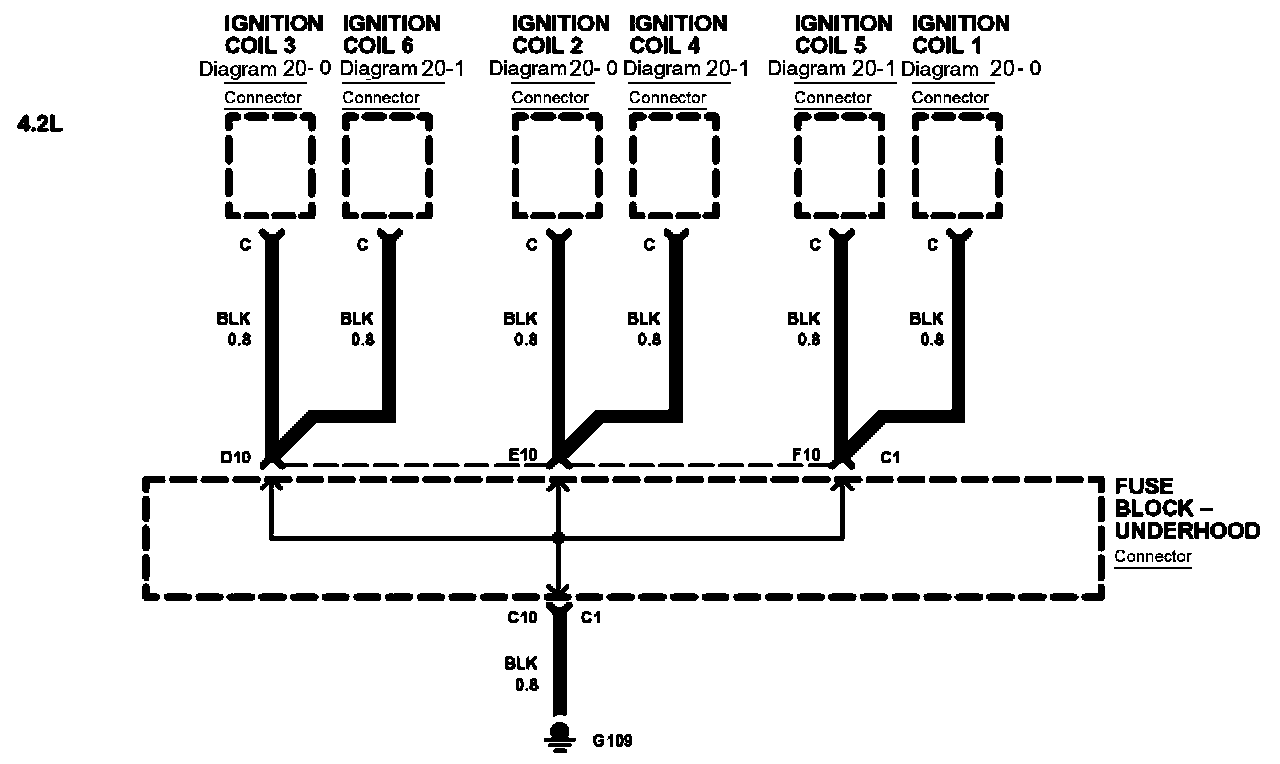

Diagram 14-4A (Ground G109):

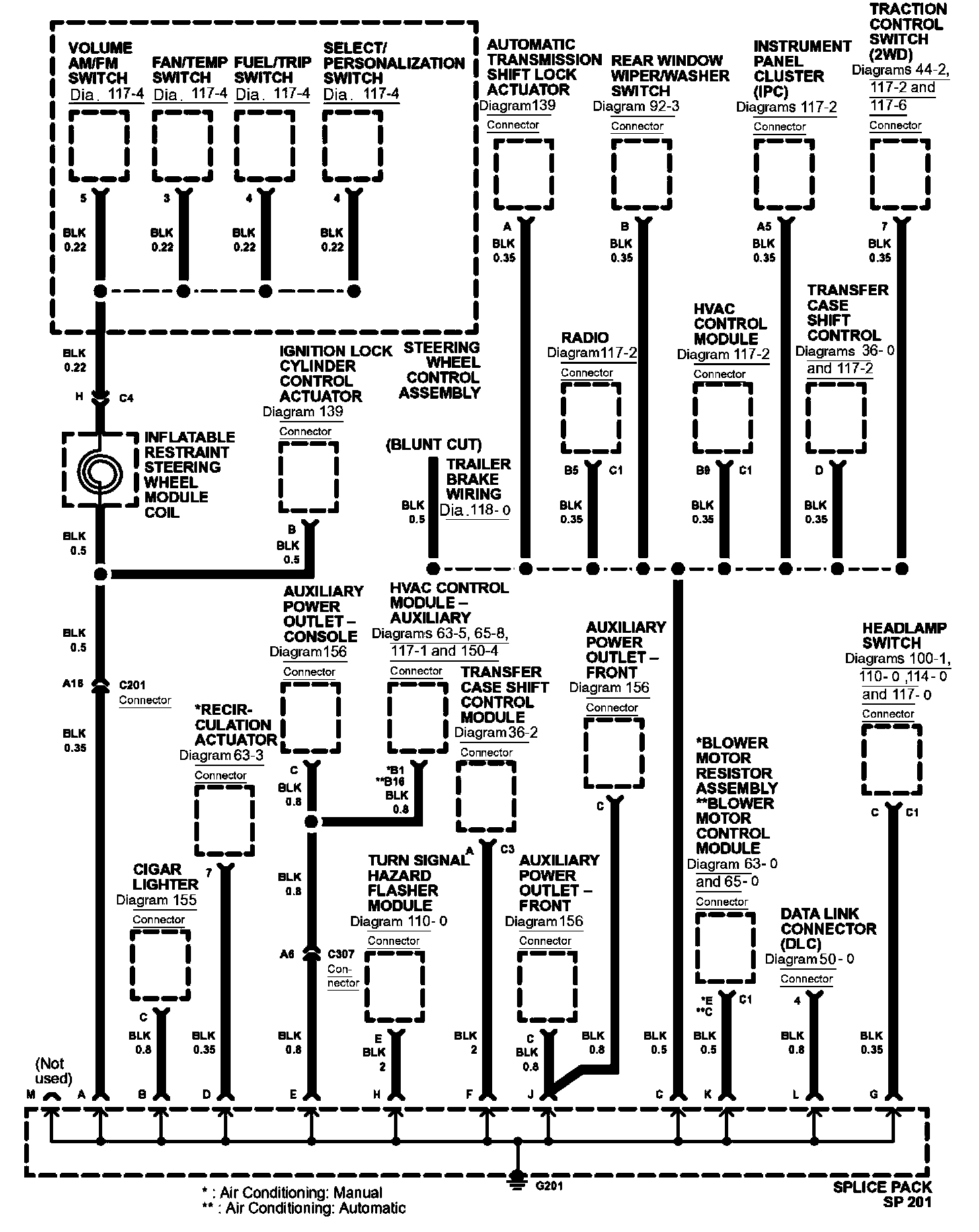

Diagram 14-5 (Ground G201):

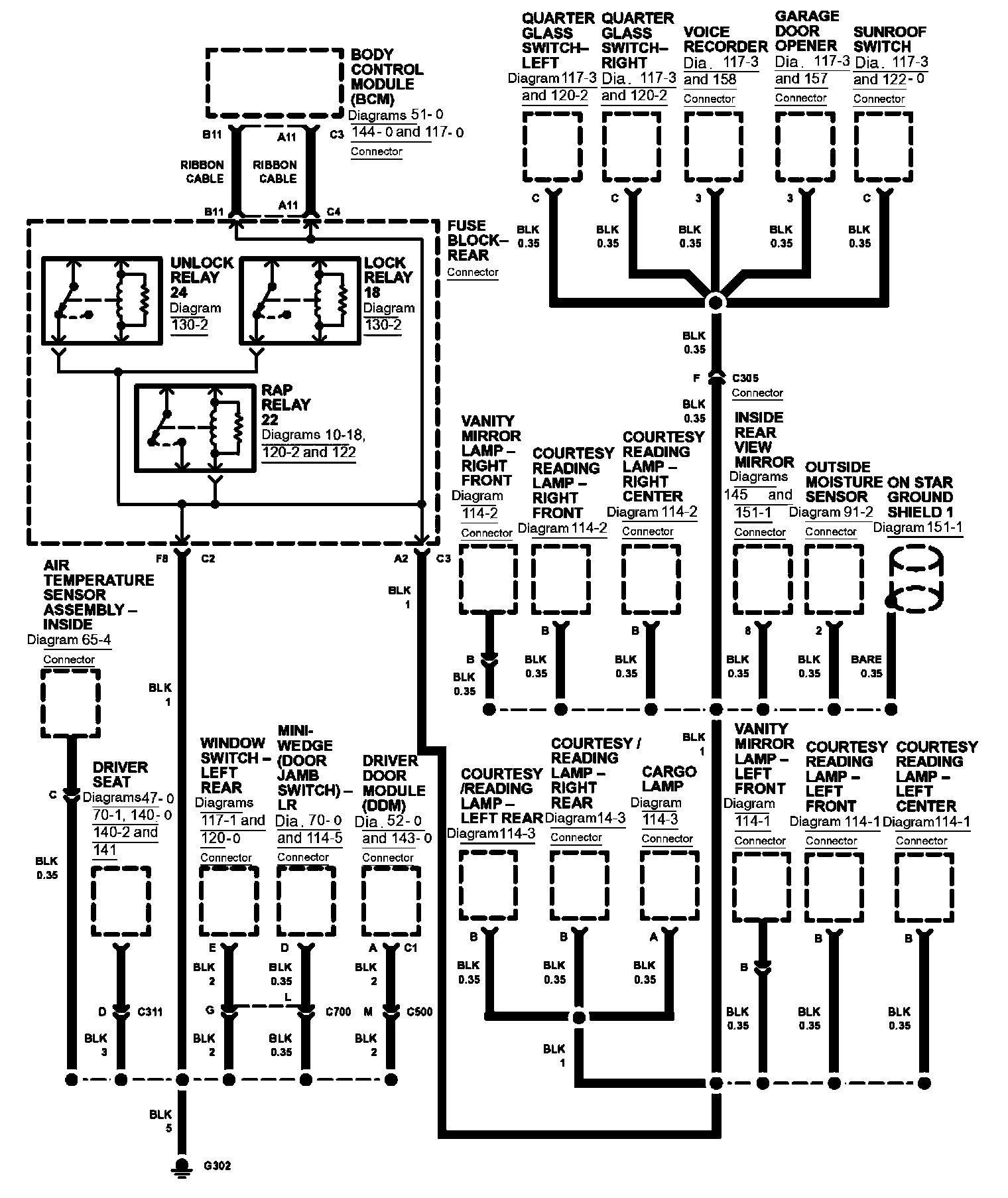

Diagram 14-6 (Ground G302):

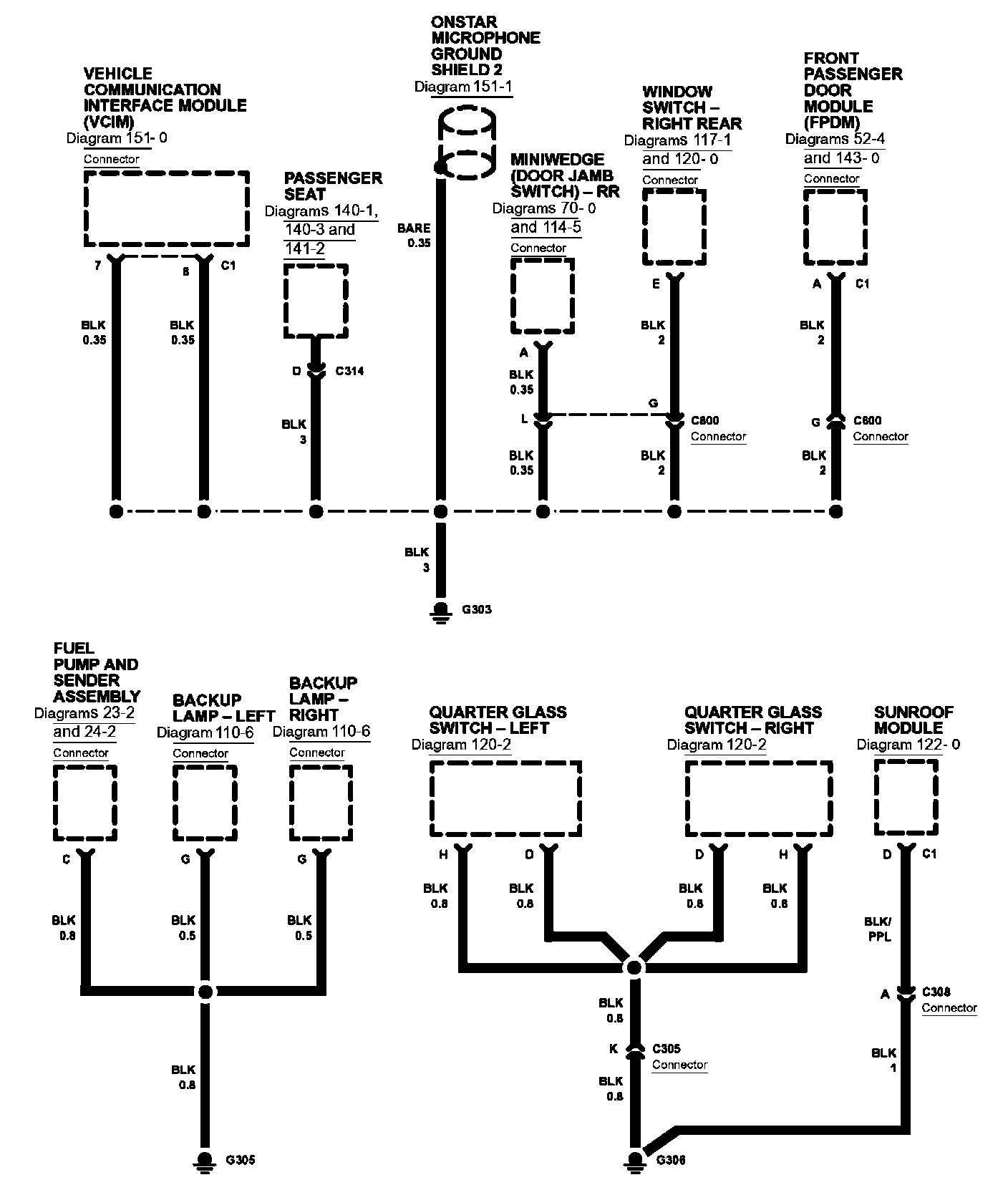

Diagram 14-7 (Ground G303, G305 & G306):

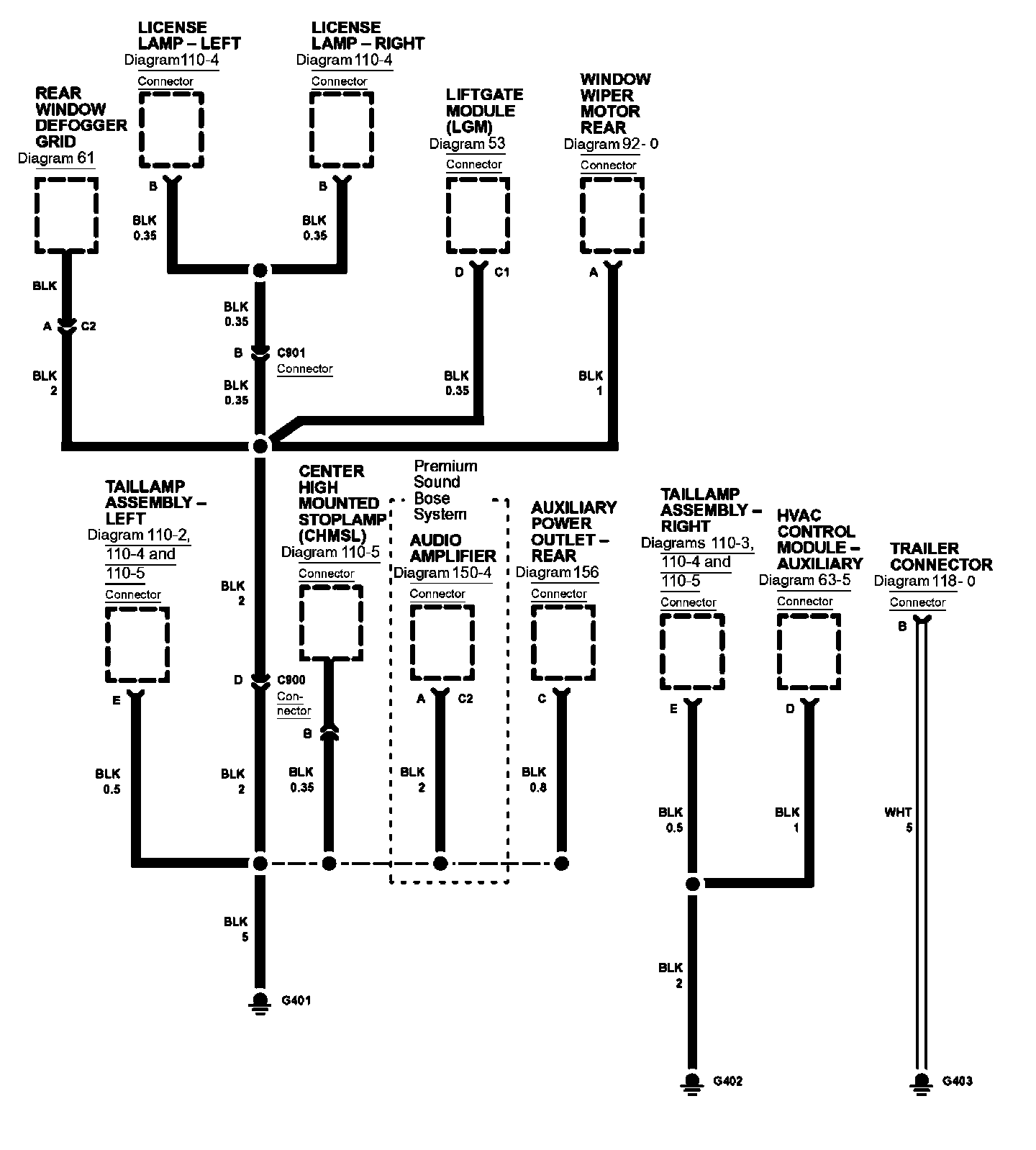

Diagram 14-8 (Ground G401, G402 & G403):

Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number


Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
