Evaporative Emissions System: Diagrams

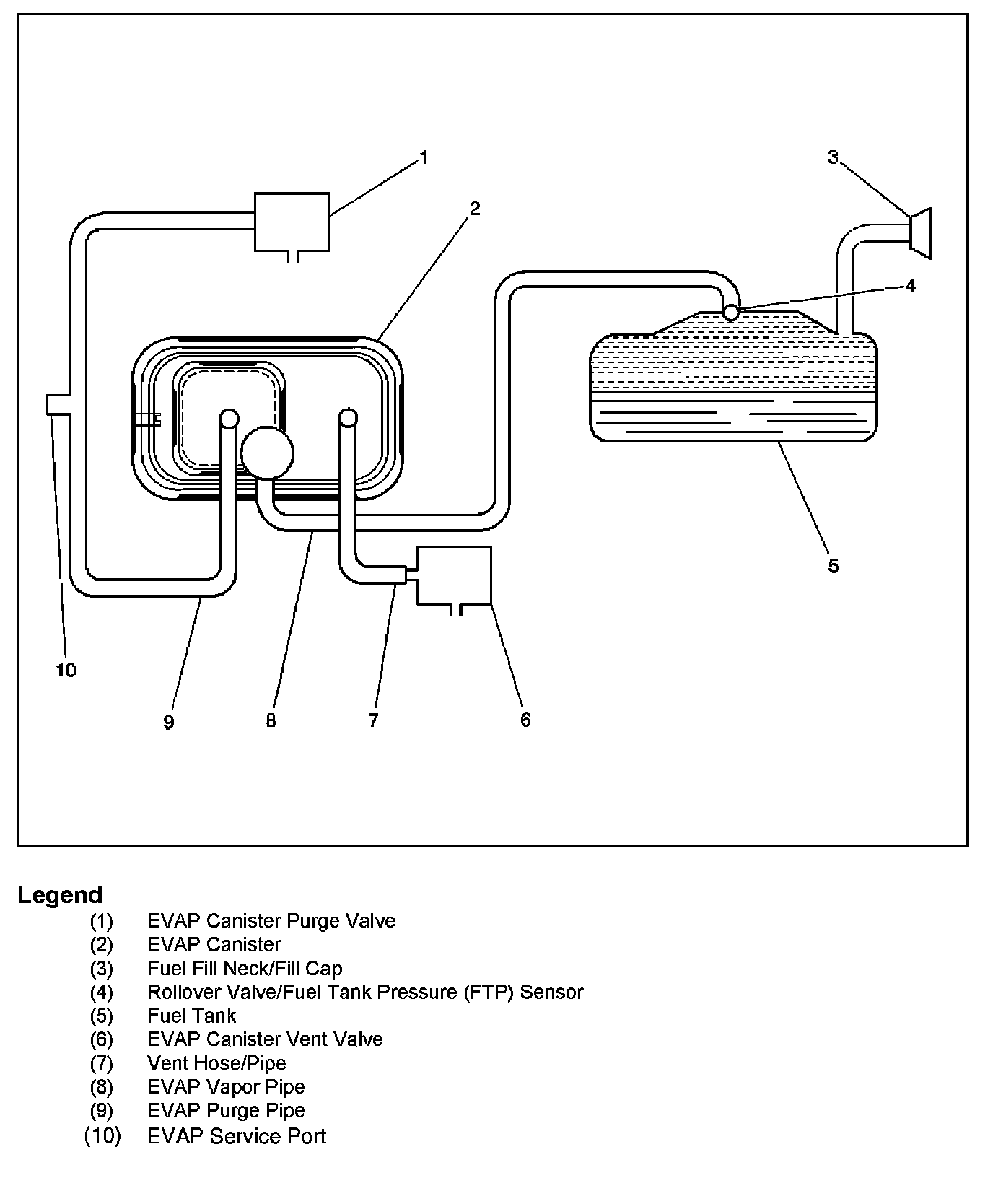

Evaporative Emissions (EVAP) Hose Routing Diagram (EVAP System Overview):
