Pull Handle Assembly Replacement - Rear No. 2

Pull Handle Assembly Replacement - Rear No. 2

Removal Procedure

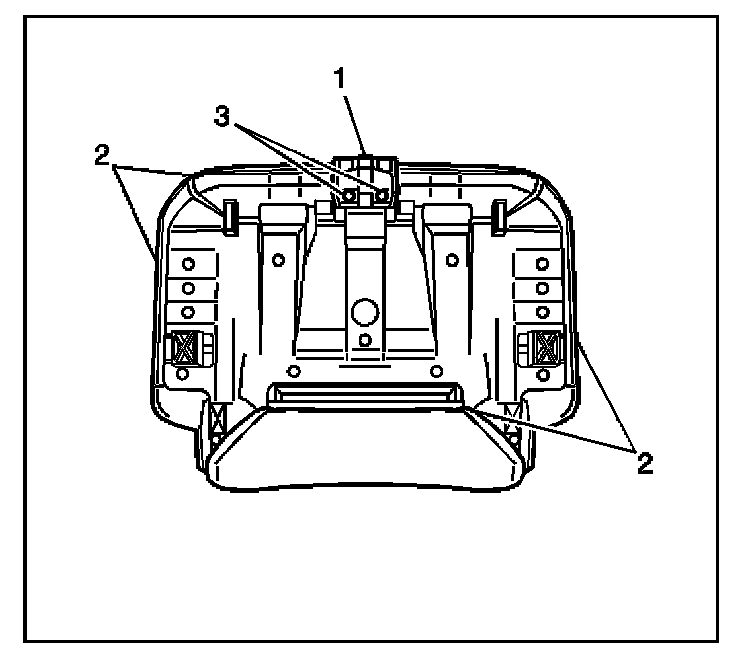

1. Remove the two screws (3) securing the seat pull handle (1) to the seat panel.
2. Remove the seat pull handle.

Installation Procedure

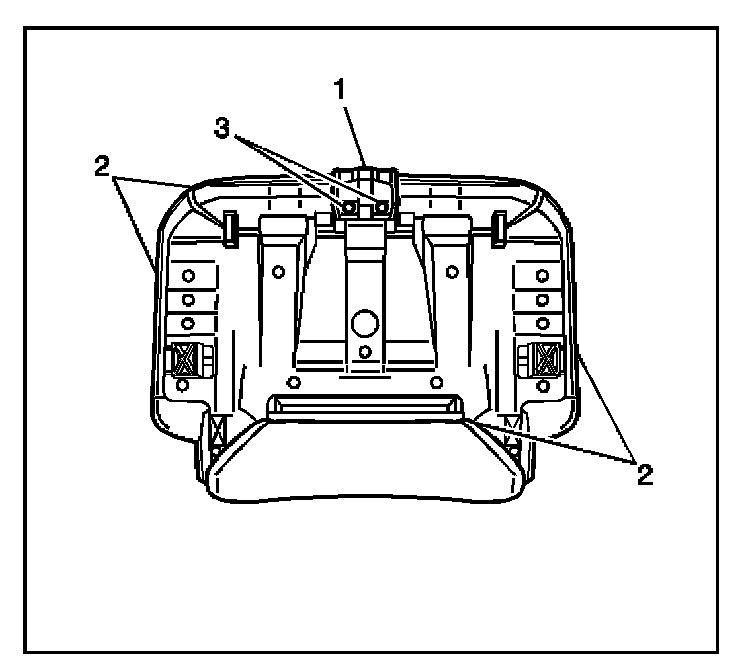

1. Position the seat pull handle (1) on the seat panel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the two screws (3) to the seat pull handle (1).

Tighten: Tighten the rear seat pull handle screws to 4 Nm (36 lb in).
