Antilock Brakes / Traction Control Systems

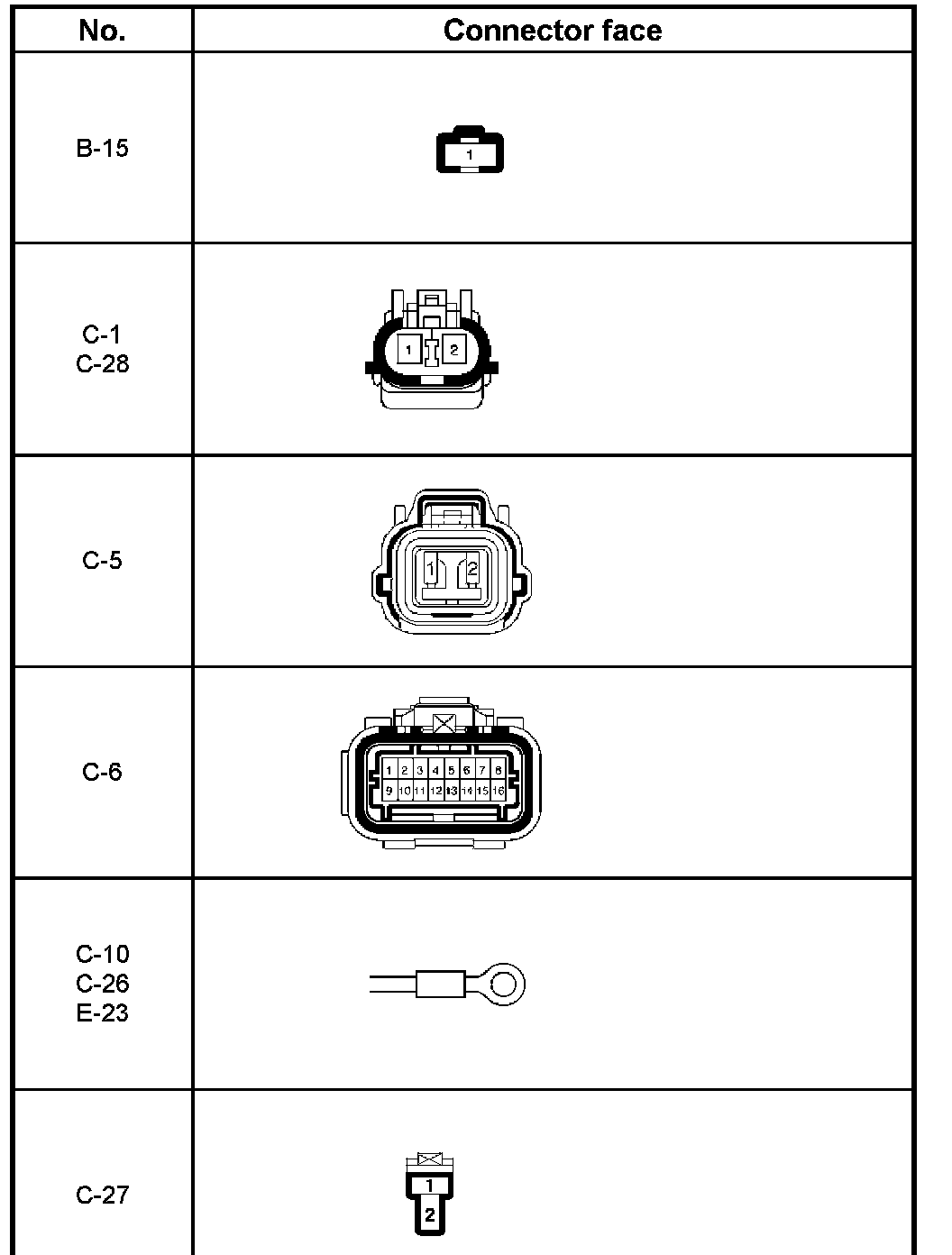

Connector ListConnector Face, E-23/B-15/C-1/C-28/C-5/C-6/C-10/C-26/C-27. 1 Of 4:

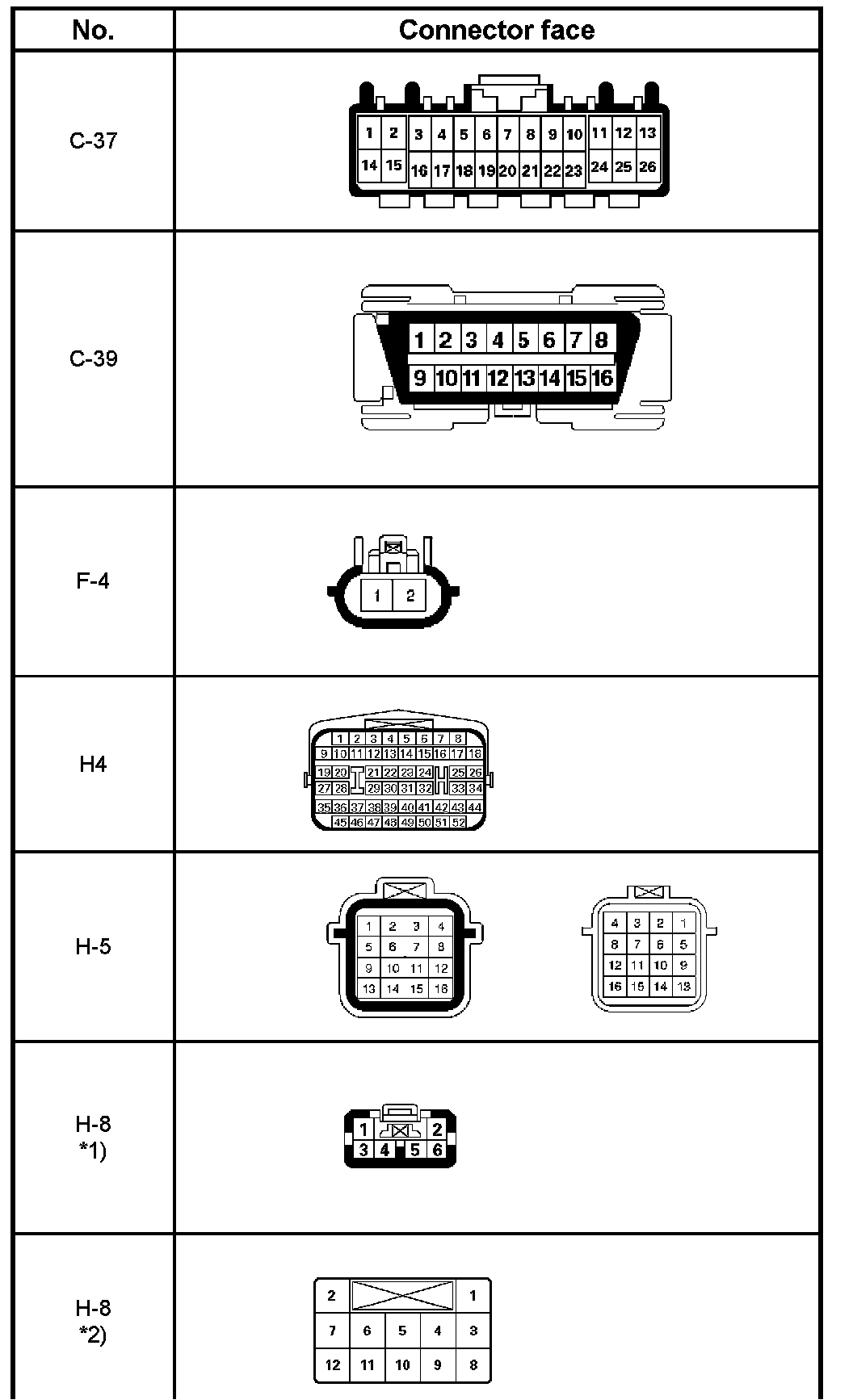

Connector Face, C-37,39/F-4/H-4,5,8. 2 Of 4:
*1) 2WD model WO/Intelligent SUS.
*2) 2WD model W/Intelligent SUS. or 4WD model.

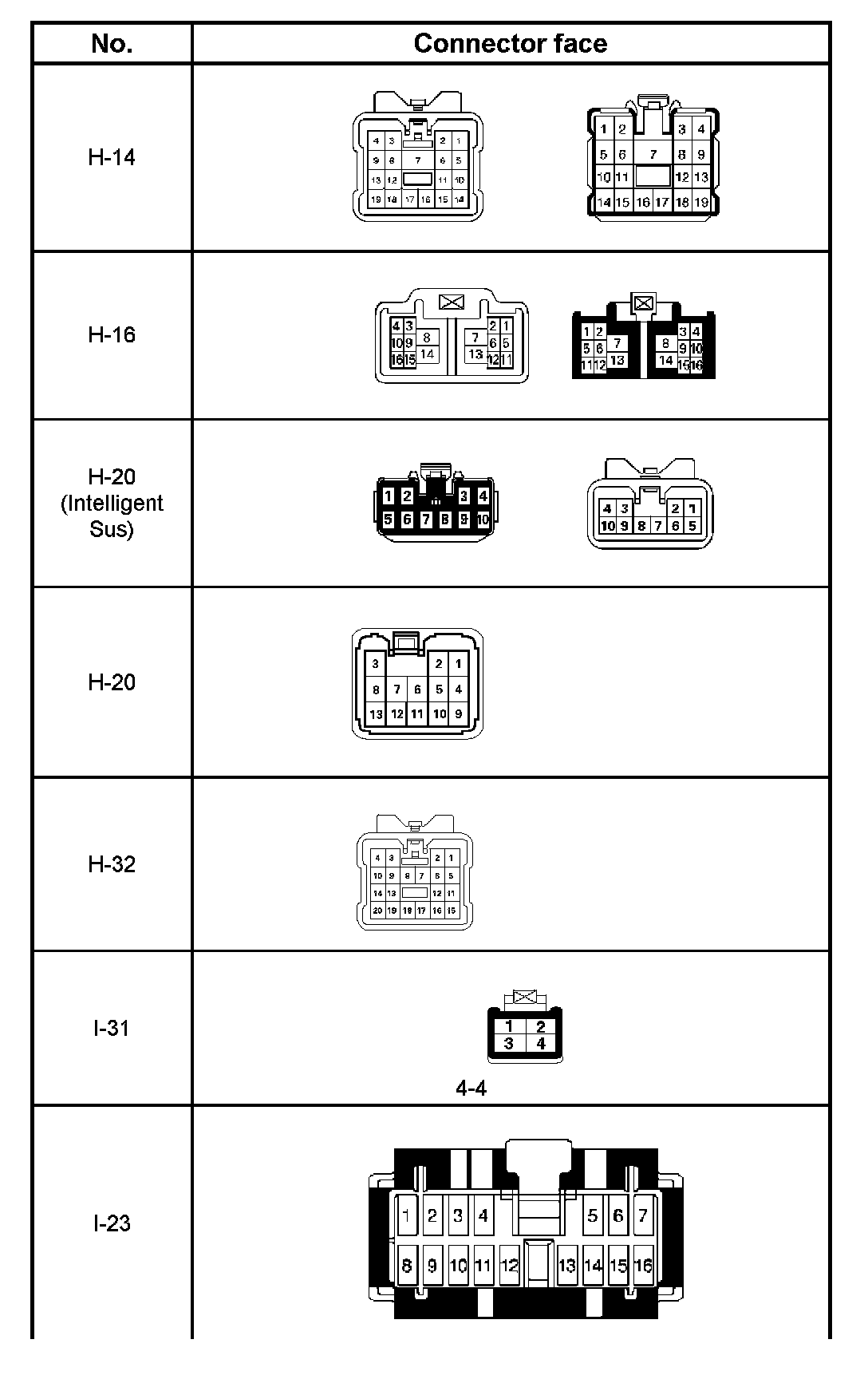

Connector Face, H-14,16,20,32/I-23,31. 3 Of 4:

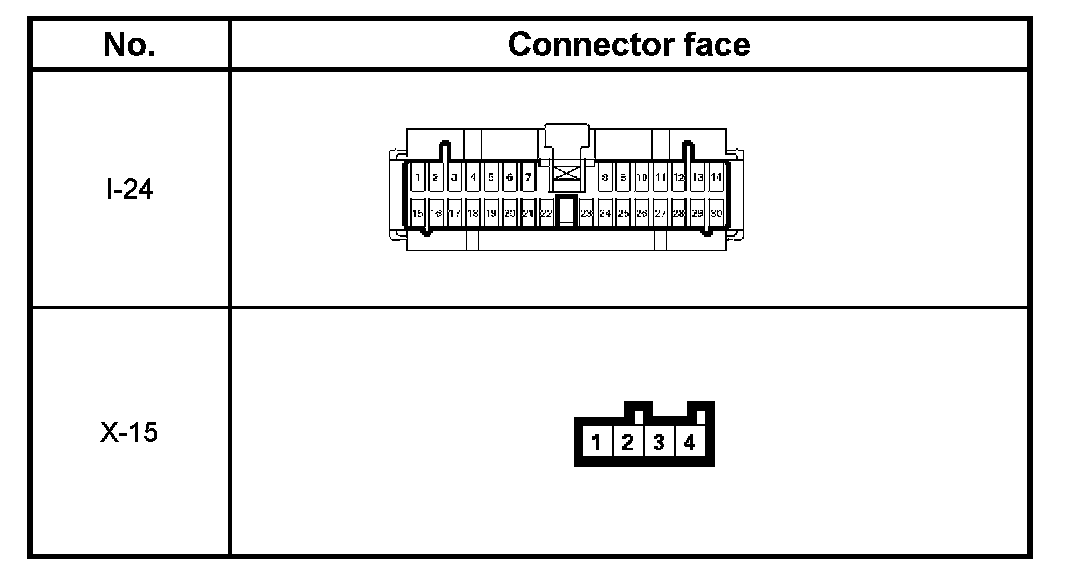

Connector Face, I-24/X-15 4 Of 4:
