Electronic Brake Control Module

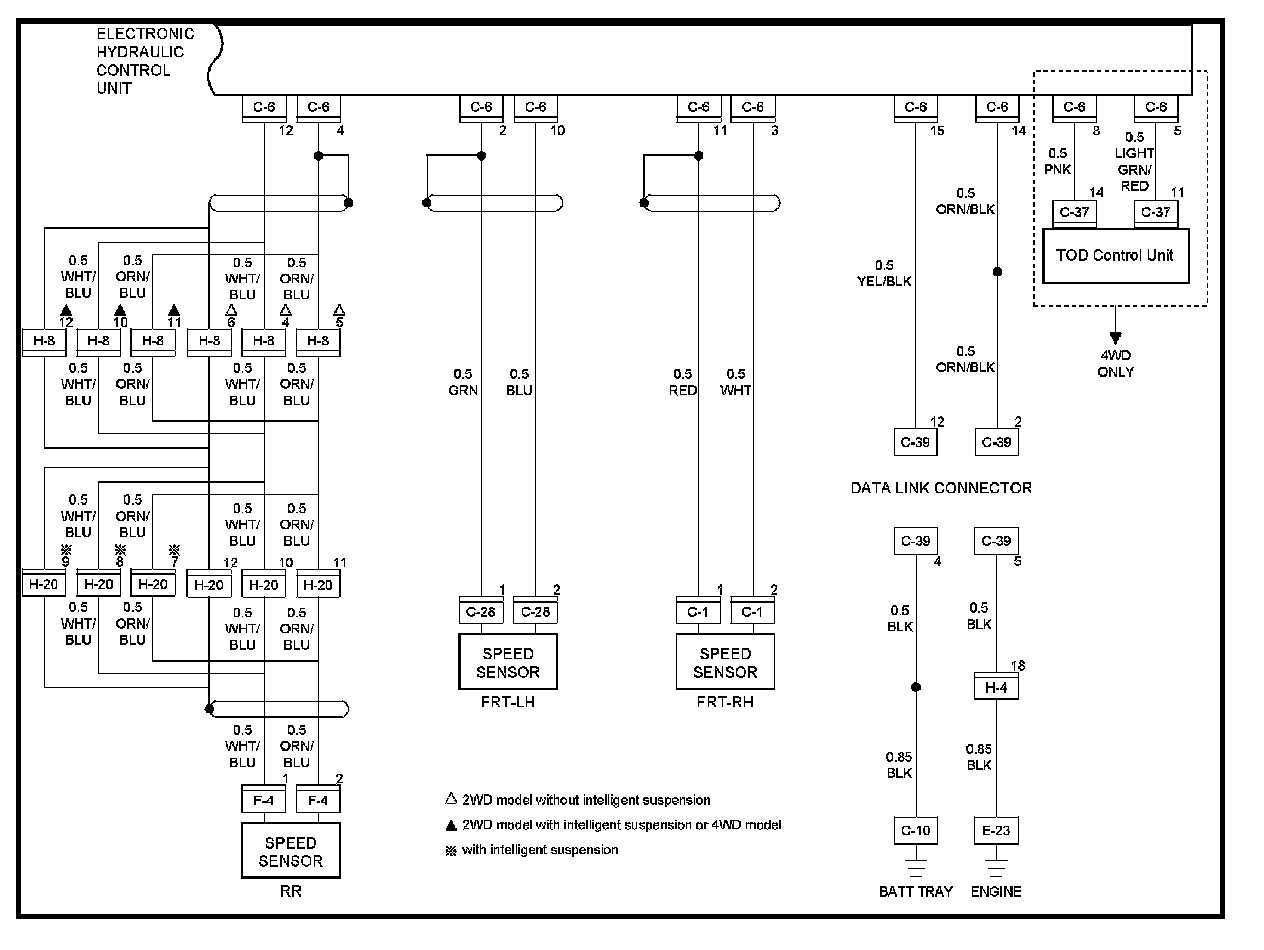

Antilock Brake System, Circuit Diagram 1 Of 2:

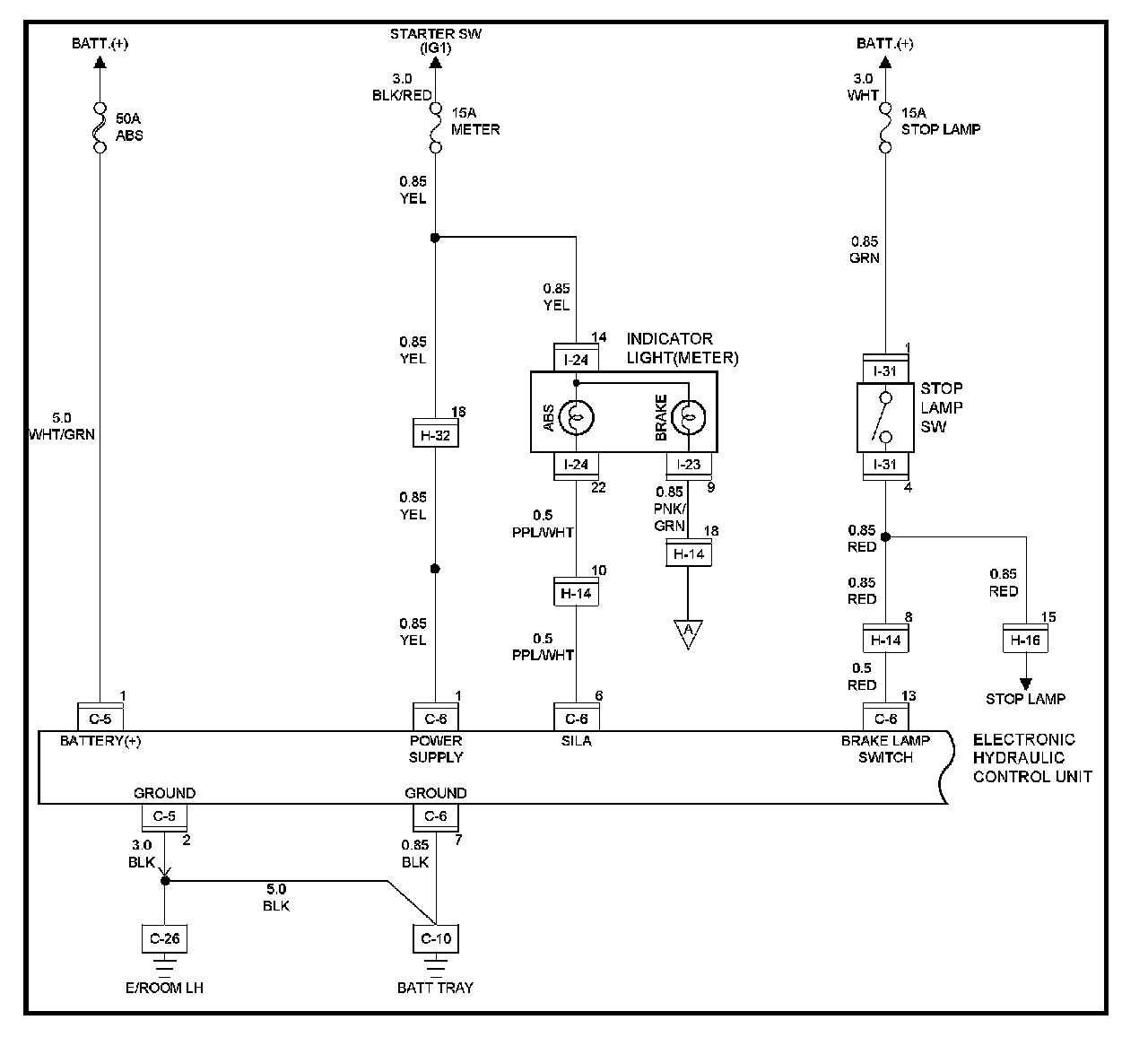

Antilock Brake System, Circuit Diagram 2 Of 2:
