Home >> Isuzu >> 2003 >> Axiom 2WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry >> Schematic Diagrams

Schematic Diagrams

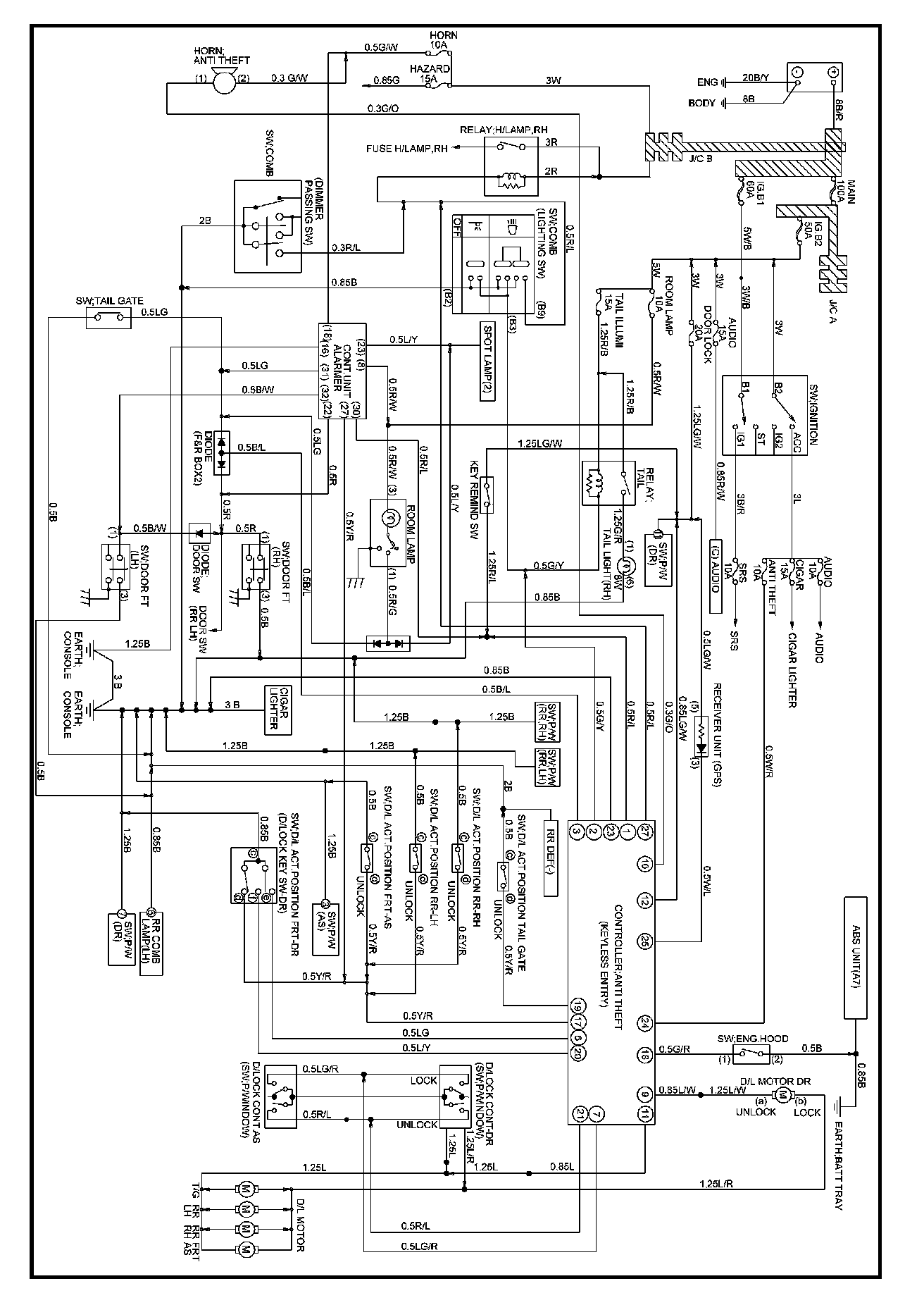

Anti-theft With Keyless Entry:
