Horn: Service and Repair
Removal
1.
Disconnect the battery ground cable.
2.
Remove the
horn
.
-
Disconnect the connector.
-
Remove the
horn
mounting bolt.

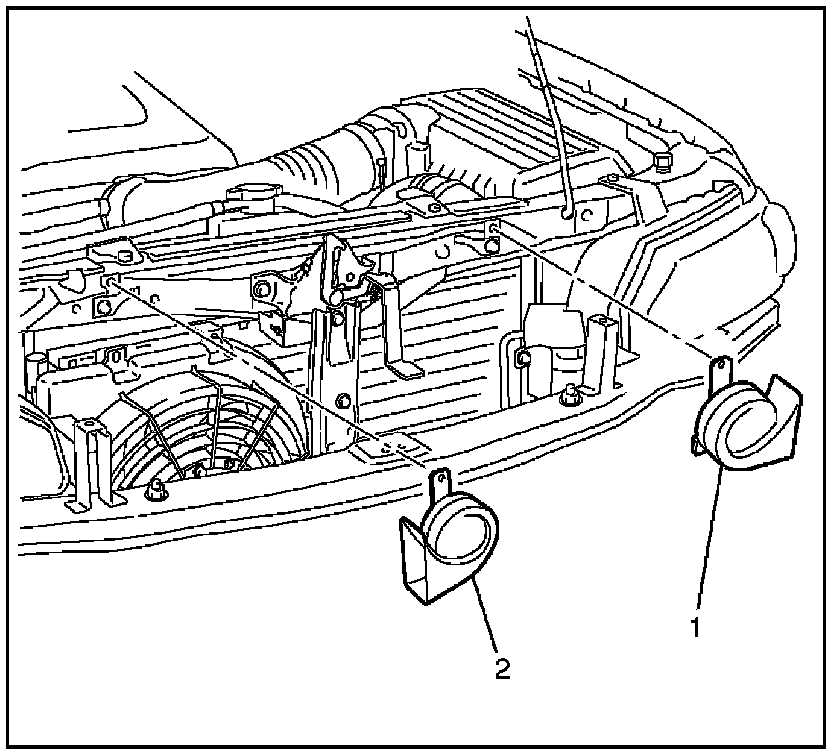

NOTE:
High (1), Low (2)
Installation
To install, follow the removal steps in the reverse order.
