Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
2003
>>
Axiom 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
Harness Locations

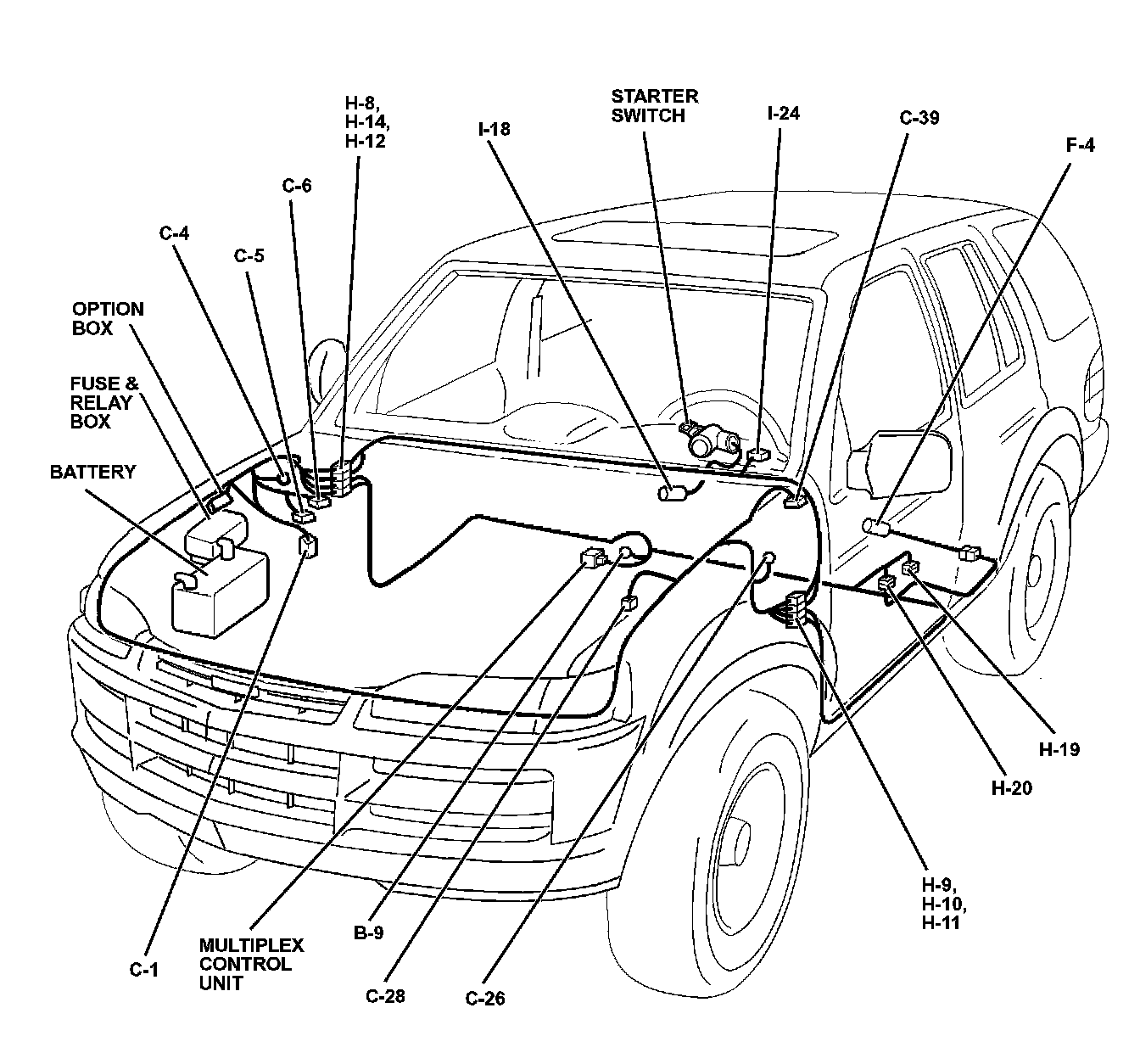

View 203-0:

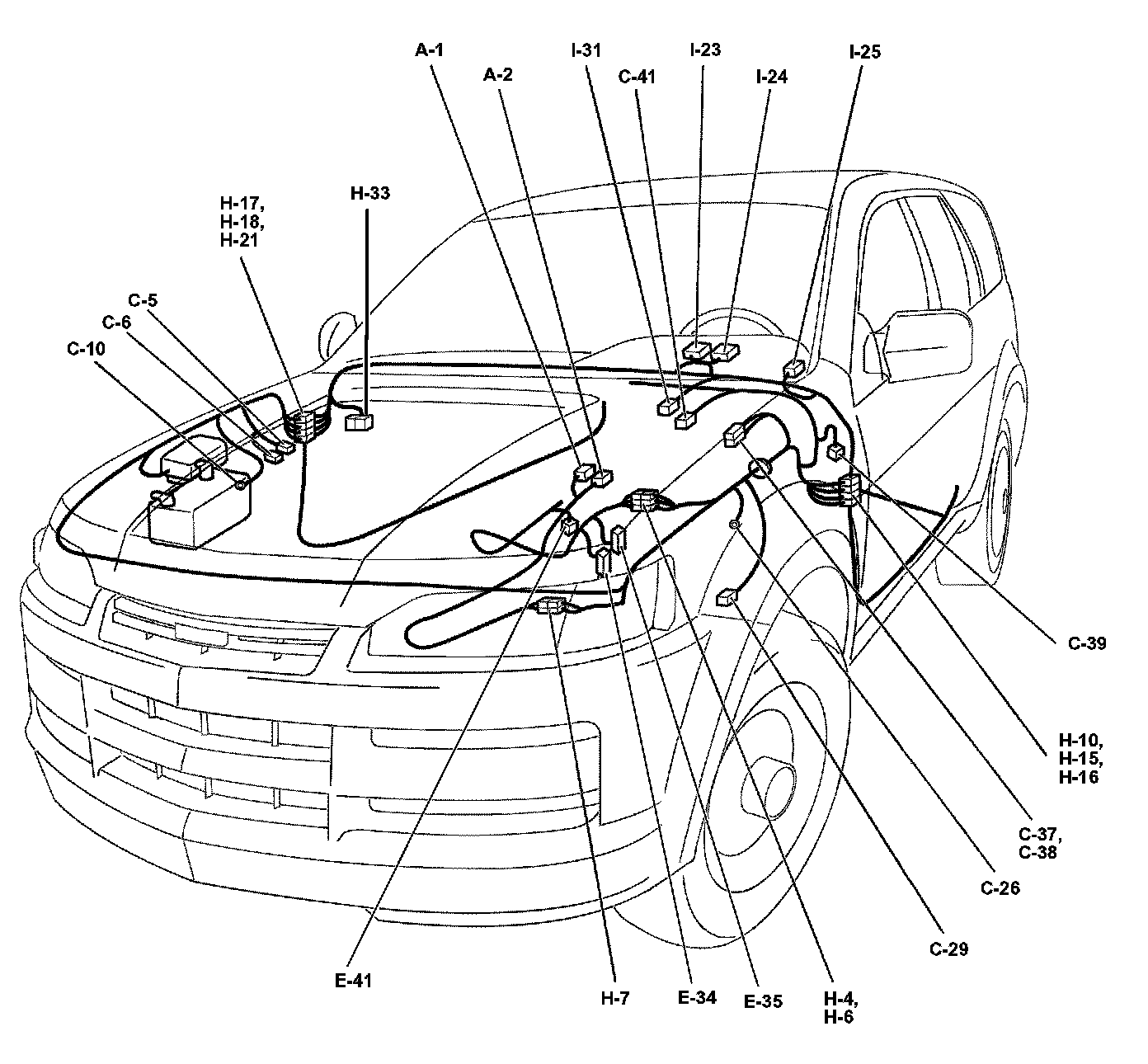

View 203-1:

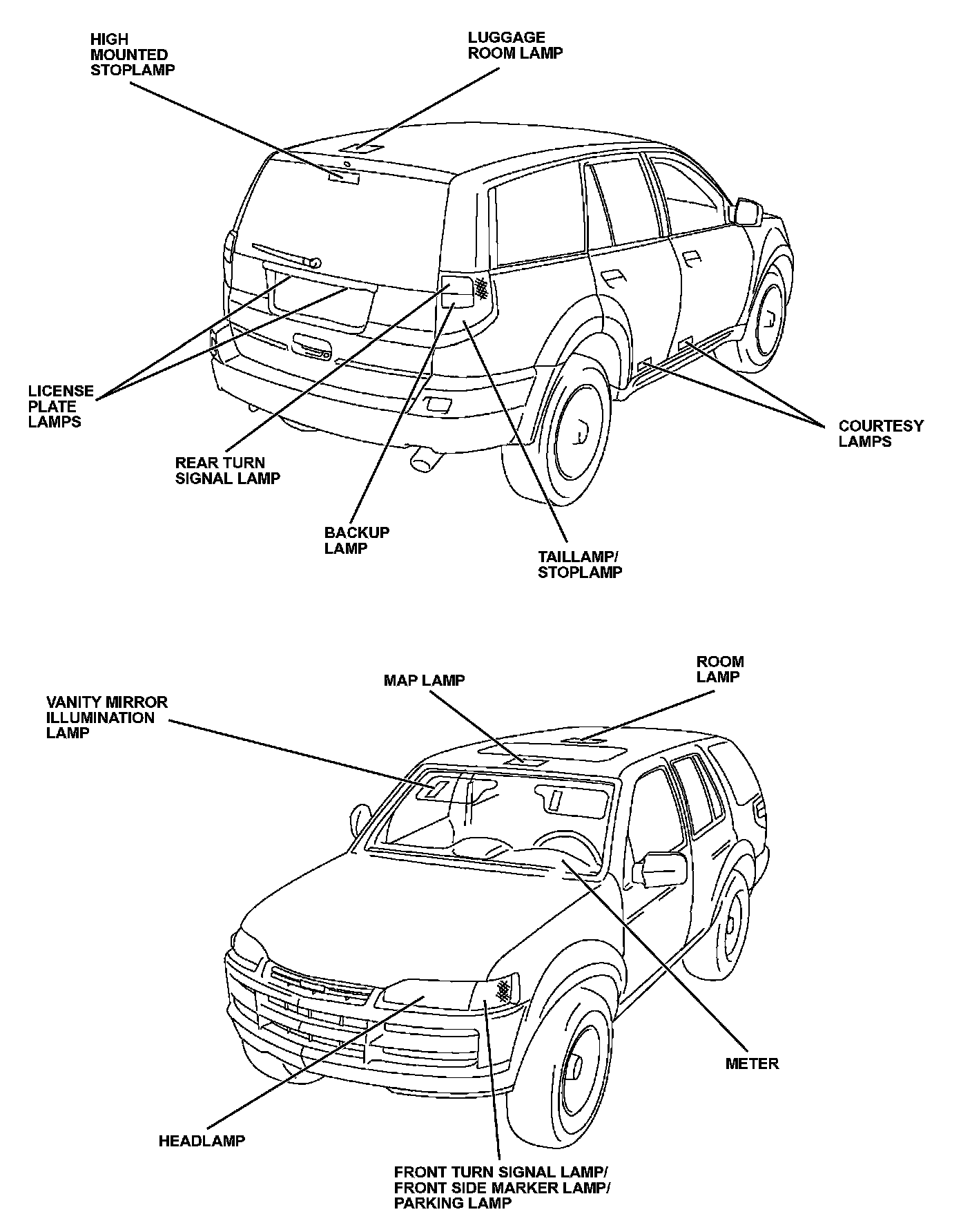

View 203-2:

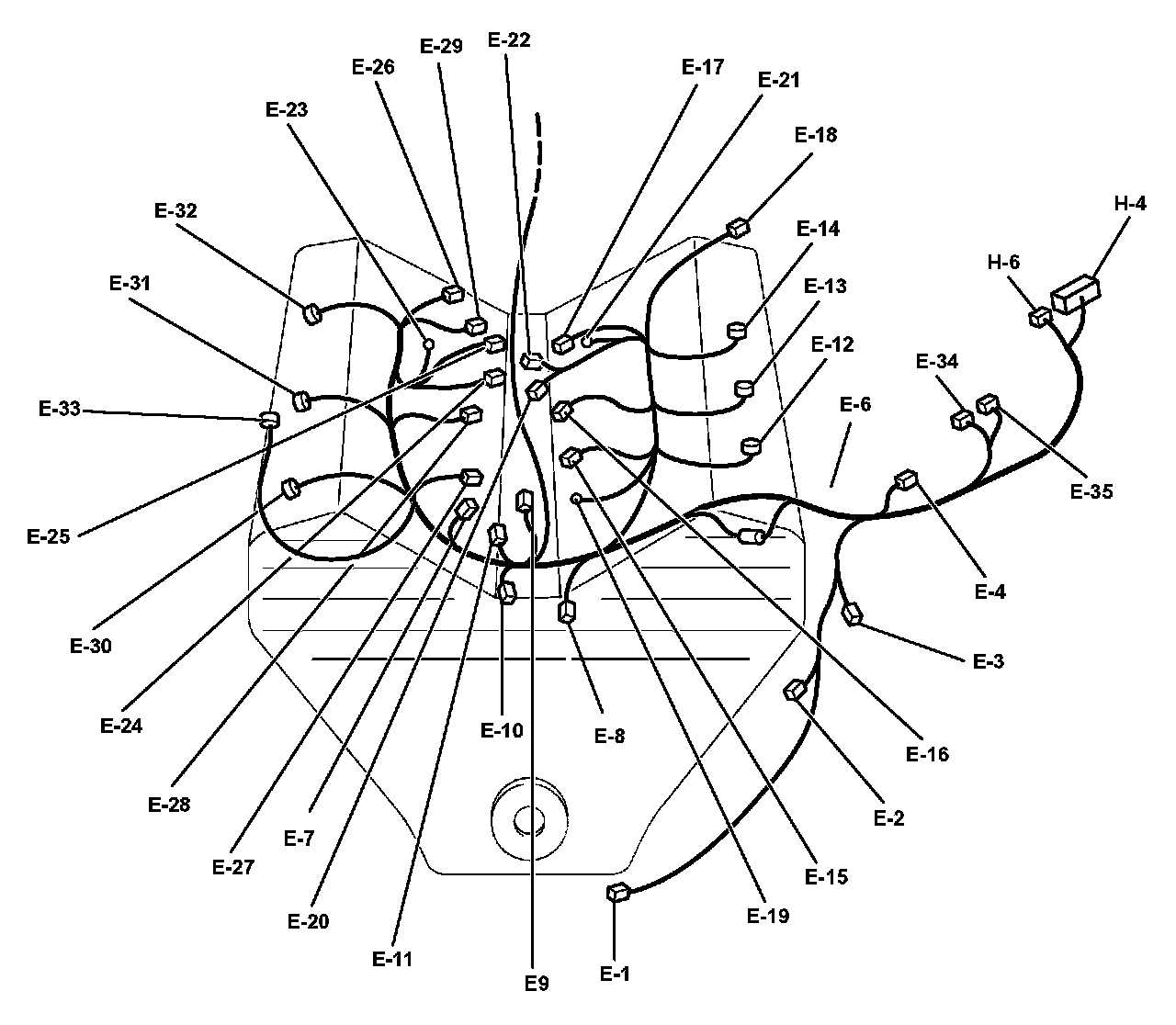

View 203-3:

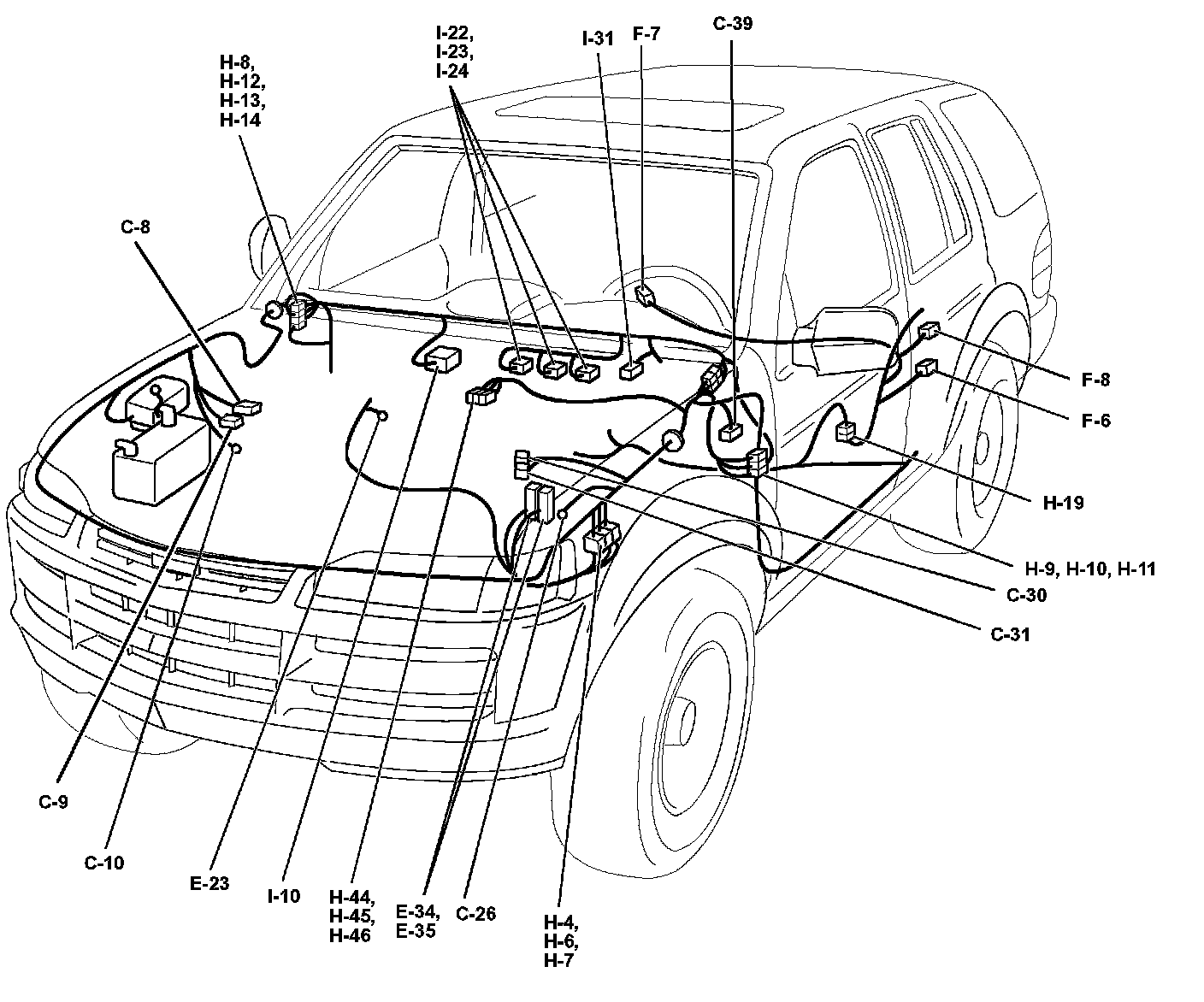

View 203-4:

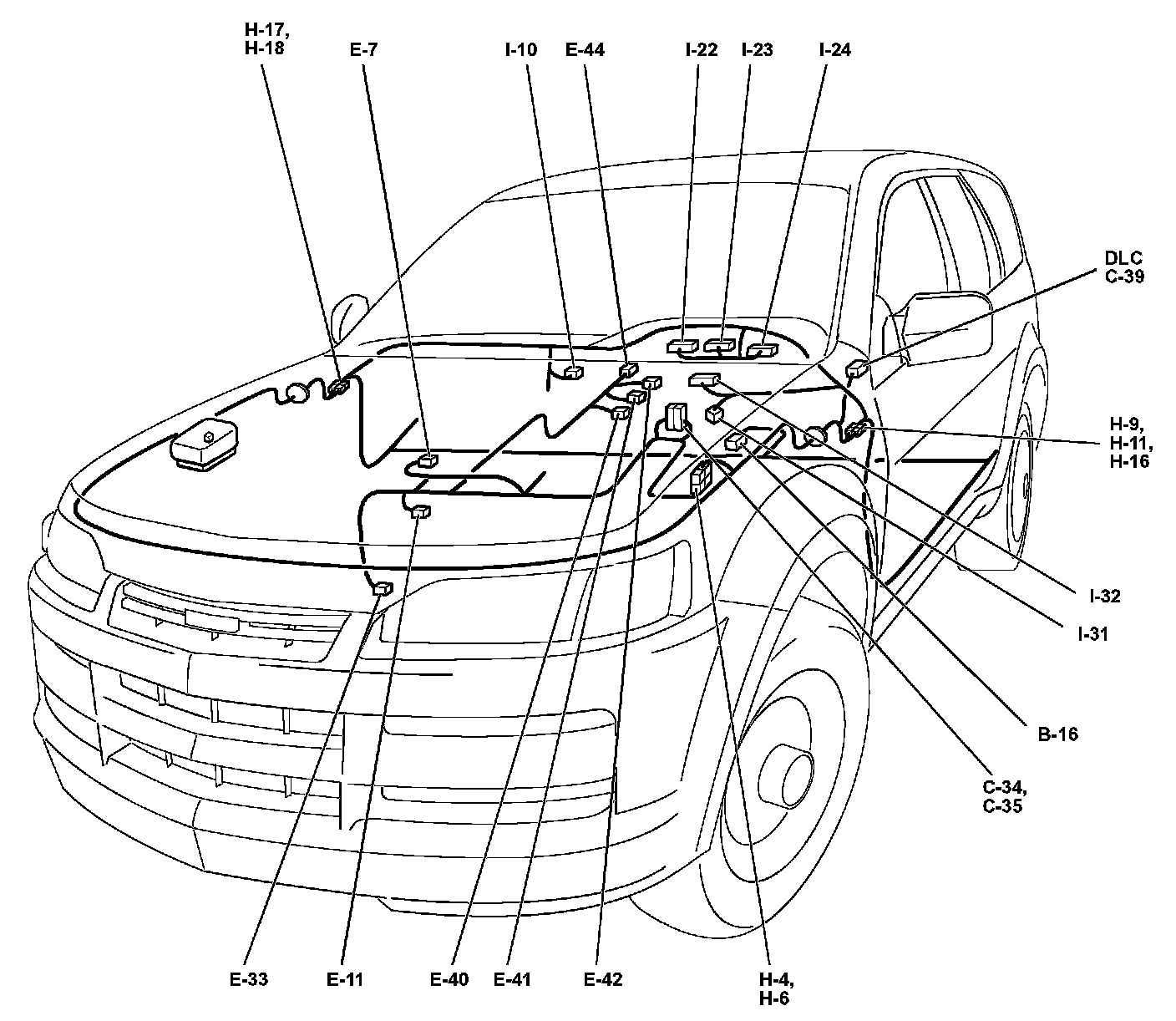

View 203-5:

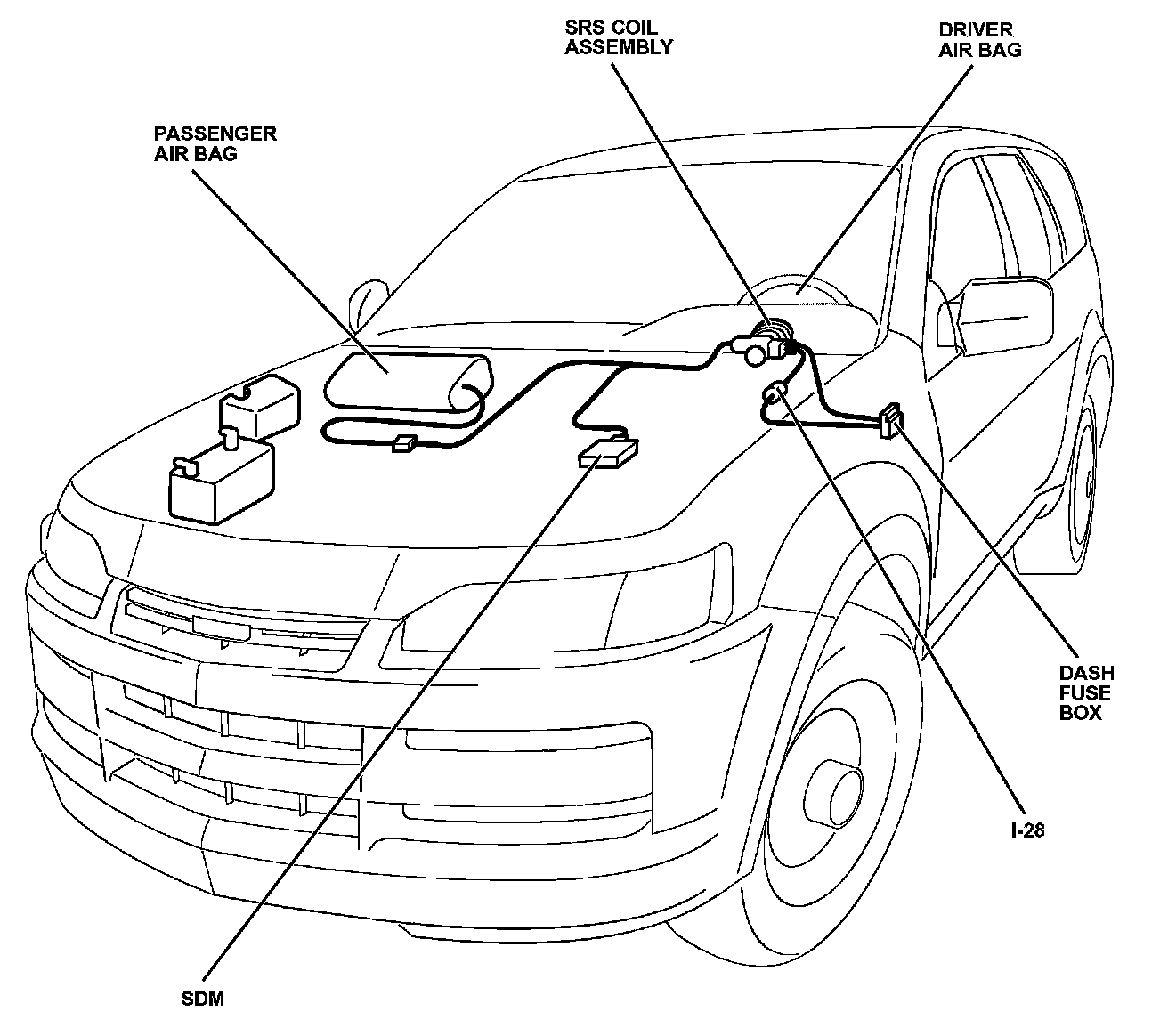

View 203-6:
