Component Locations
Relay/Fuse Box Location:

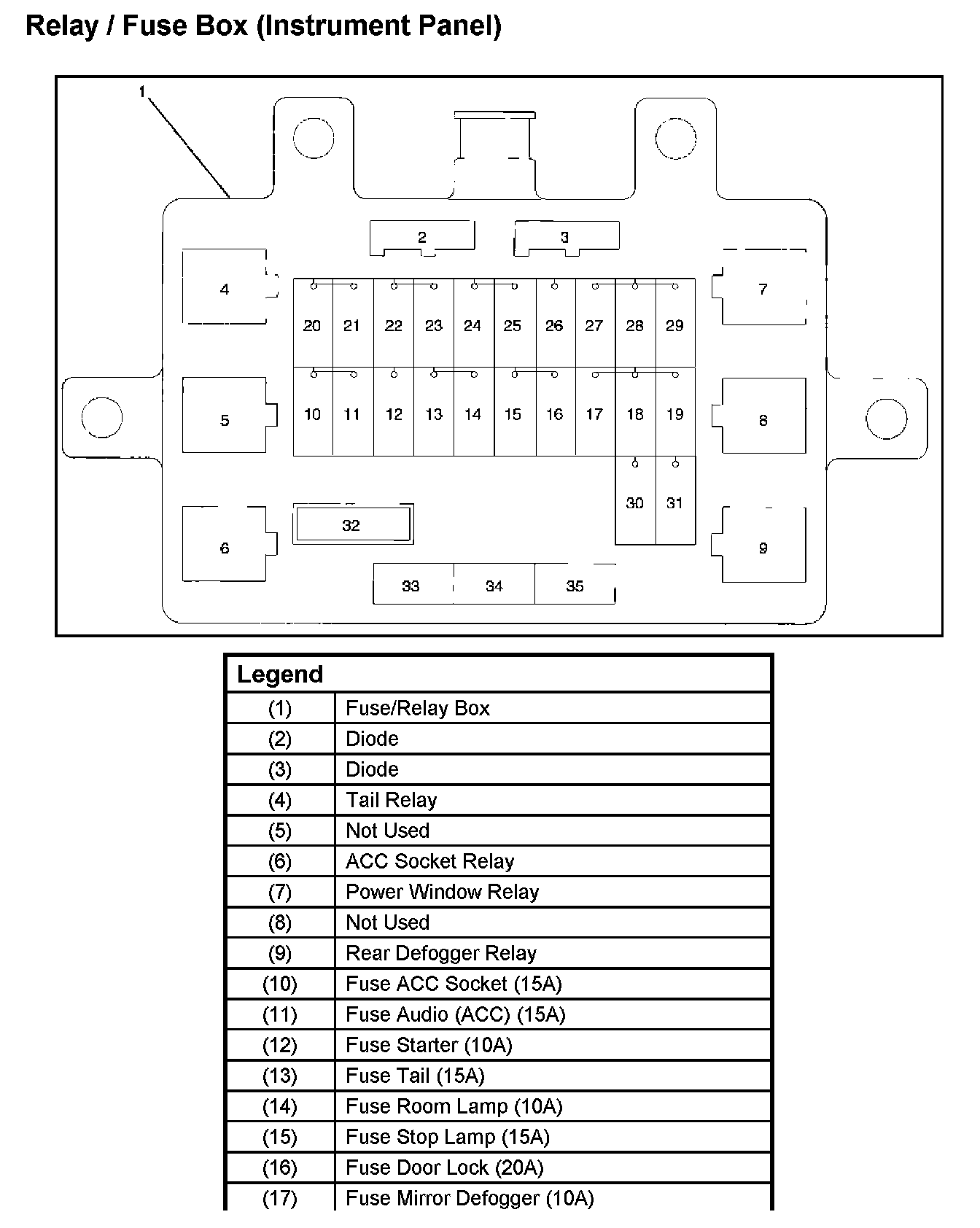

Relay/Fuse Box (Instrument Panel) Part 1:

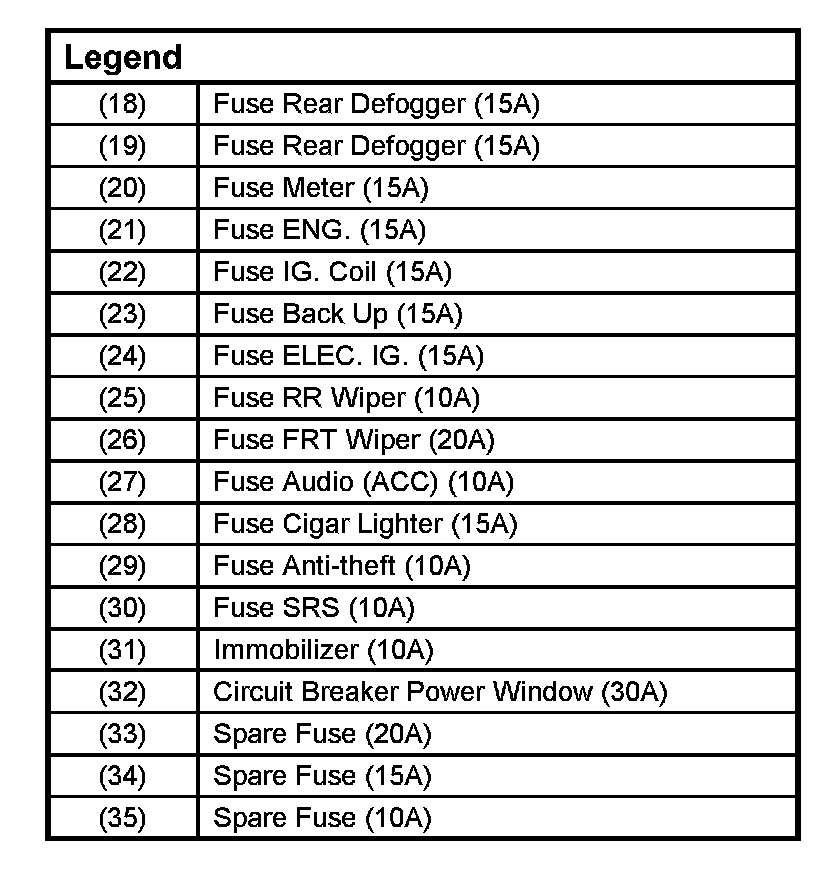

Relay/Fuse Box (Instrument Panel) Part 2:
Relay/Fuse Box (Engine Room) Part 1:

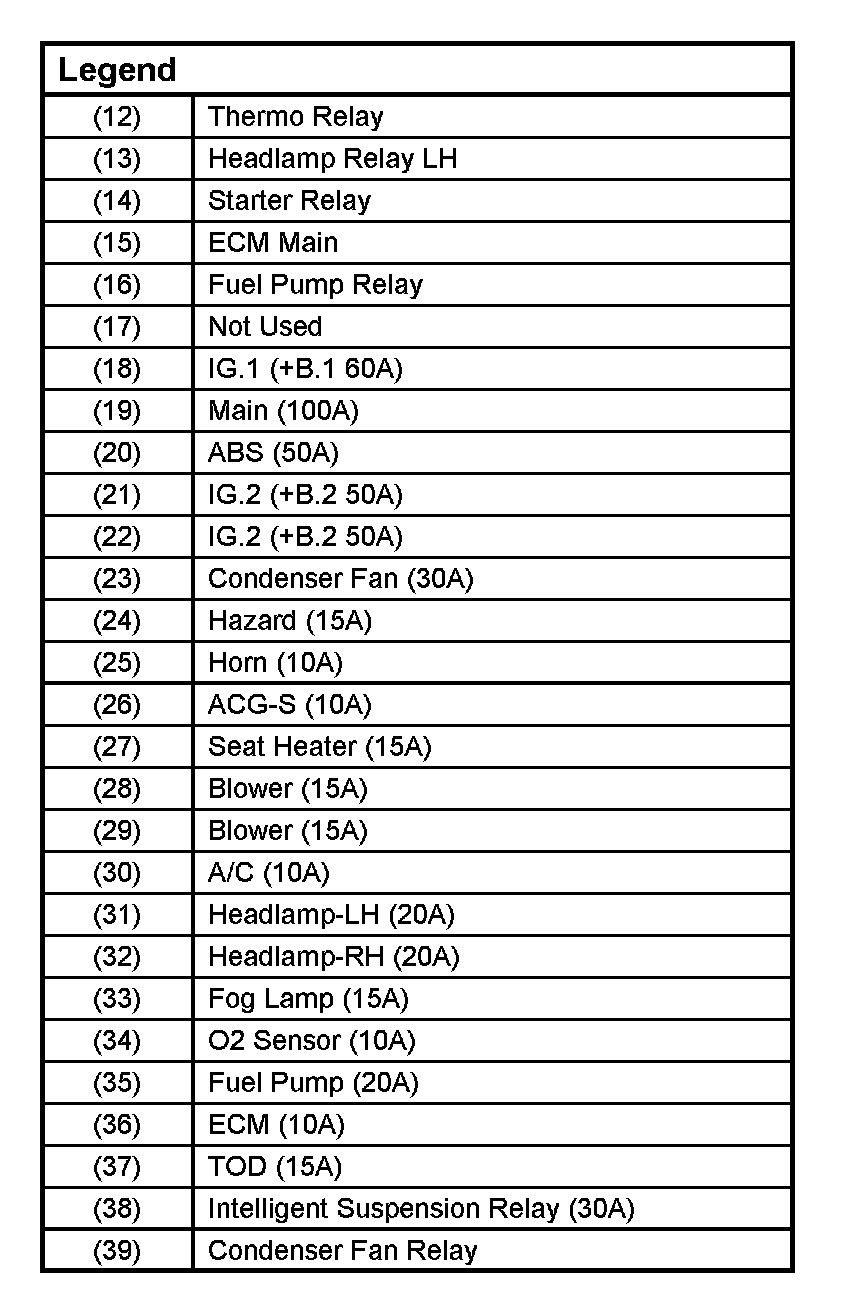

Relay/Fuse Box (Engine Room) Part 2:
