Wiring Harness Replacement - Rear Door

Wiring Harness Replacement - Rear Door

Removal Procedure

1. Remove the door trim panel.
2. Remove the water deflector.
3. Remove the speaker.
4. Disconnect the regulator motor electrical connector.
5. Disconnect the door latch assembly electrical connector.
6. Remove the second pillar trim.




7. From the inside of the door, release the rubber conduit retainer from the door by releasing the retaining tabs.

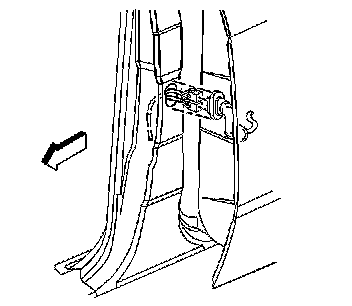

8. Using the pillar access hole, remove the door harness connector retainer from the second pillar by releasing the retaining tabs.
9. Disconnect the 6-way and the 8-way electrical connectors from the door wire harness connector.




10. Note the routing of the wire harness and release the wire harness attachments from the door.
11. Remove the wire harness from the door.

Installation Procedure




1. Install and route the wiring harness to the door as previously noted.
2. Ensure that the wiring harness attachments are fully seated.




3. Index the rubber conduit retainer to the door.
4. Seat the rubber conduit retainer to the door.
5. Connect the 6-way electrical connector to the upper portion of the door harness connector retainer.
6. Connect the 8-way electrical connector to the lower portion of the door harness connector retainer.
7. Align the door harness connector retainer to the second pillar.
8. Seat the door harness connector retainer retaining tabs to the second pillar.
9. Install the second pillar trim panel.
10. Connect the door latch assembly electrical connector.
11. Connect the regulator motor electrical connector.
12. Install the speaker.
13. Install the water deflector.
14. Install the door trim panel.
