Lock Actuator Replacement - Rear Door

Lock Actuator Replacement - Rear Door

Removal Procedure

1. Remove the door trim panel.
2. Remove the water deflector.
3. Remove the door latch assembly.

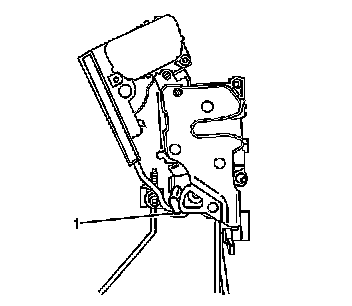

4. Remove the 2 screws that retain the actuator (1) to the lock.




5. Simultaneously lift up on and rotate the actuator away from the latch in order to disengage the rubber bumper (1) from the latch.
6. Remove the actuator from the latch.

Installation Procedure




1. Install the rubber bumper (1) to the latch.
2. Rotate the actuator toward the latch in order to fully engage the rubber bumper into the latch.

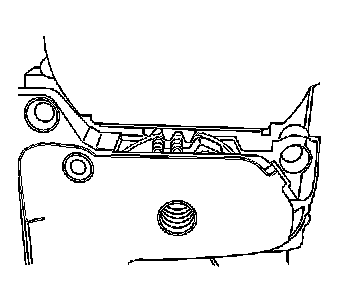

Important: Ensure that the first tooth of the gear on the actuator and the first tooth of the gear on the latch align and interlock properly.




3. Install the actuator to the top of the latch.





Notice: Refer to Fastener Notice in Service Precautions.

4. Install the 2 screws that retain the actuator (1) to the lock.

Tighten the screws to 0.75 N.m (6 lb in).

5. Install the lock to the door.
6. Install the water deflector.
7. Install the door trim panel.
