Motor Replacement - Power Mirror

Motor Replacement - Power Mirror

Removal Procedure




1. Remove the mirror face.

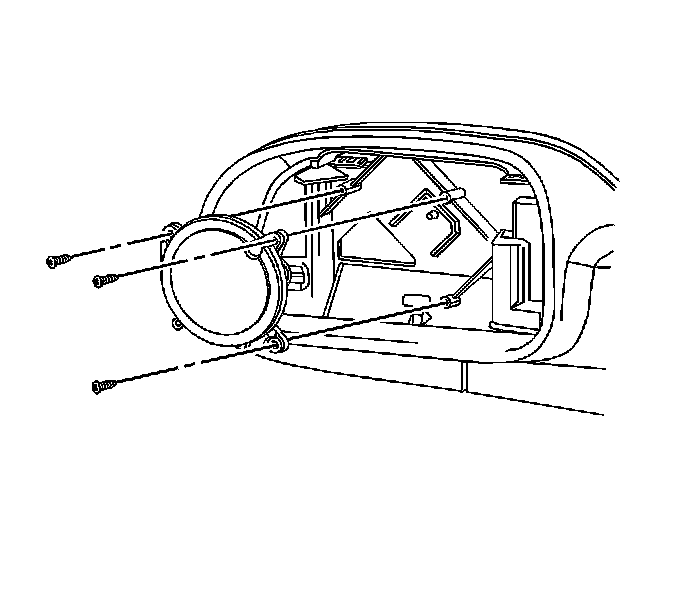

2. Remove the screws retaining the mirror to the mirror housing.
3. Remove the mirror motor from the housing.
4. Disconnect the electrical connector from the mirror motor.

Installation Procedure




1. Connect the electrical connector to the mirror motor.
2. Install the mirror motor to the mirror housing.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the screws retaining the mirror motor to the housing.

Tighten the mirror motor screws to 10 N.m (88 lb in).

4. Install the mirror face.
