Heater Core Case: Service and Repair

Heater Core Cover Replacement - Auxiliary

Removal Procedure
1. Remove the right rear quarter trim panel.

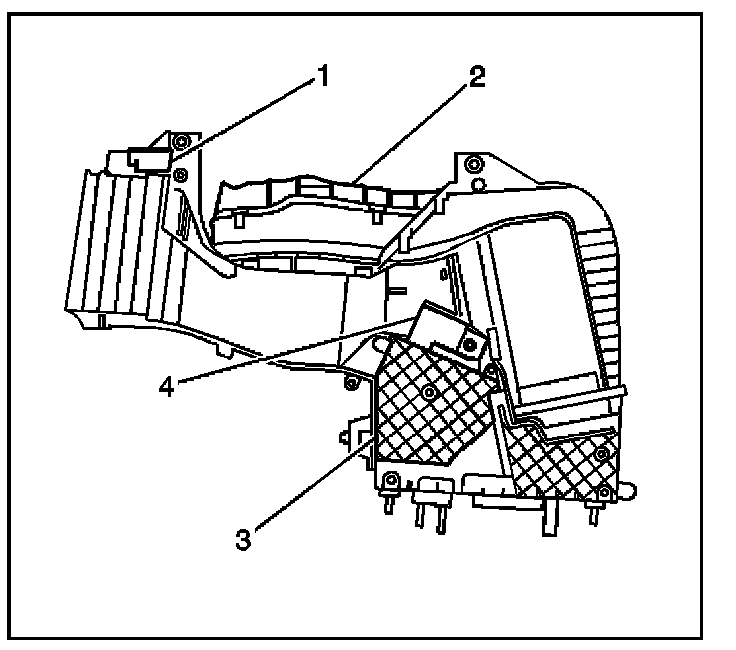

2. Remove the screws from the heater core cover-auxiliary (3).




3. Remove the heater core cover-auxiliary (3).

Installation Procedure

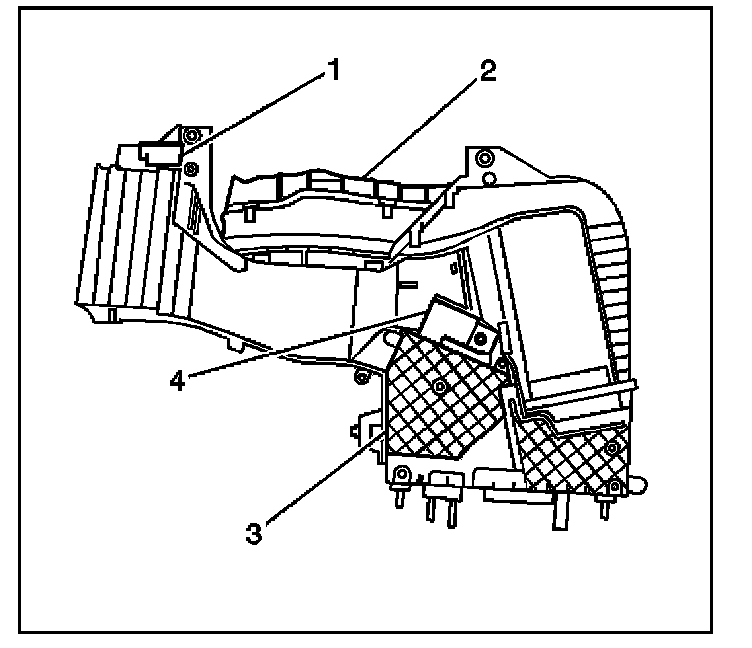

1. Install the heater core cover-auxiliary (3).

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws to the heater core cover-auxiliary.

Tighten
Tighten the screws to 2 Nm (18 lb in).




3. Install the right rear quarter trim panel.
