IP Carrier Replacement

Instrument Panel (I/P) Carrier Replacement

Removal Procedure
1. Remove the center floor console.
2. Remove the instrument panel (IP).
3. Remove the steering column with the steering wheel attached.
4. Remove the floor console bracket.

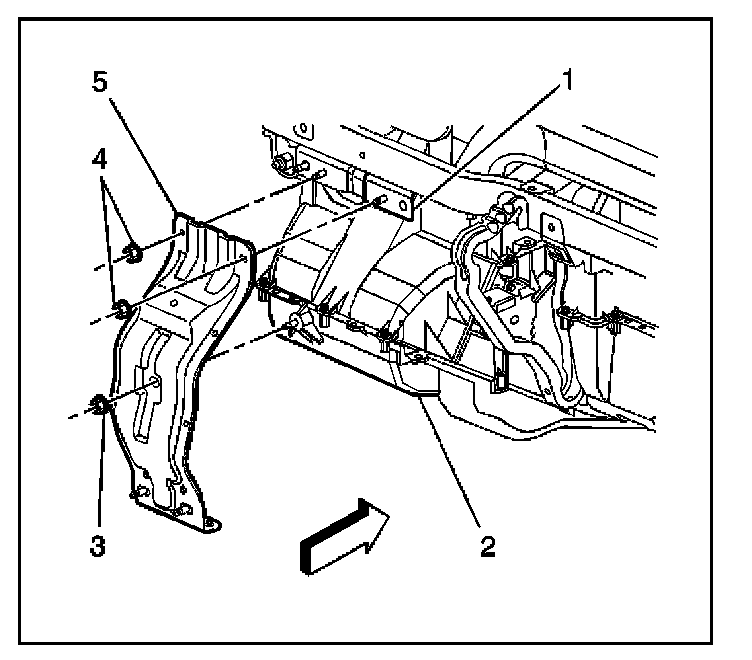

5. Remove the splice pack from the floor panel located on the right side of the HVAC center support bracket (5).




6. Remove the HVAC center support bracket (5) from the HVAC module (2).

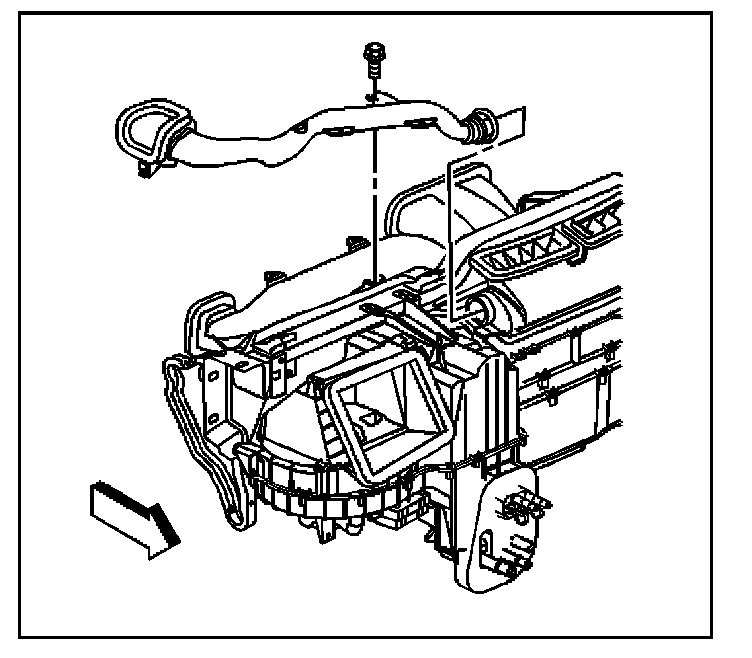

7. Remove the side window defogger duct.

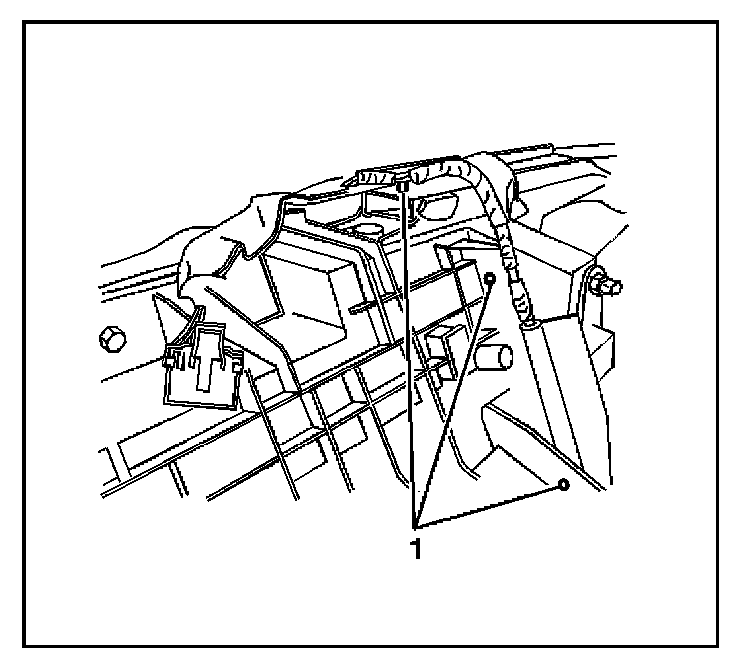

8. Remove the instrument panel cluster (IPC) wire harness attachments (1) from the steering column support bracket and IP carrier.




9. Remove the speaker wire harness attachments from the steering column support bracket and IP carrier.

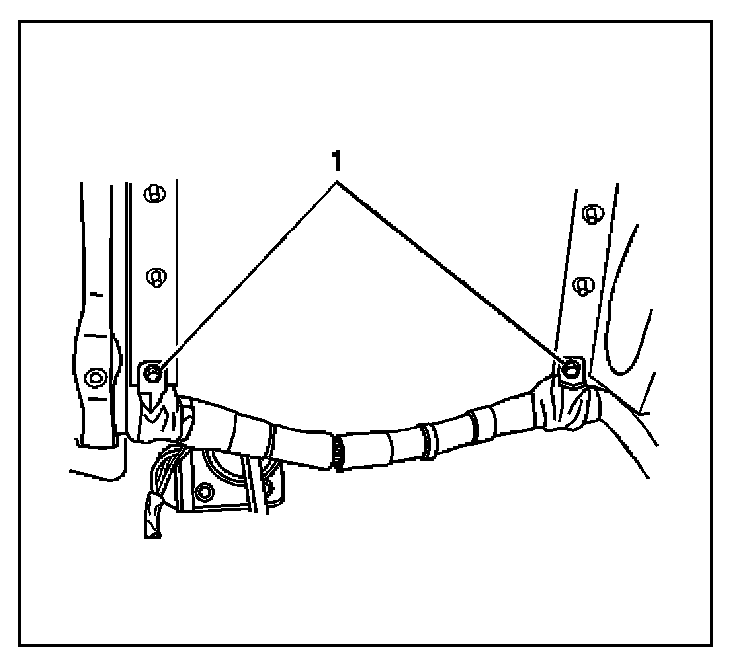

10. Remove the IP wiring harness retaining screws (1) from the IP support brackets, located near the steering column support bracket.

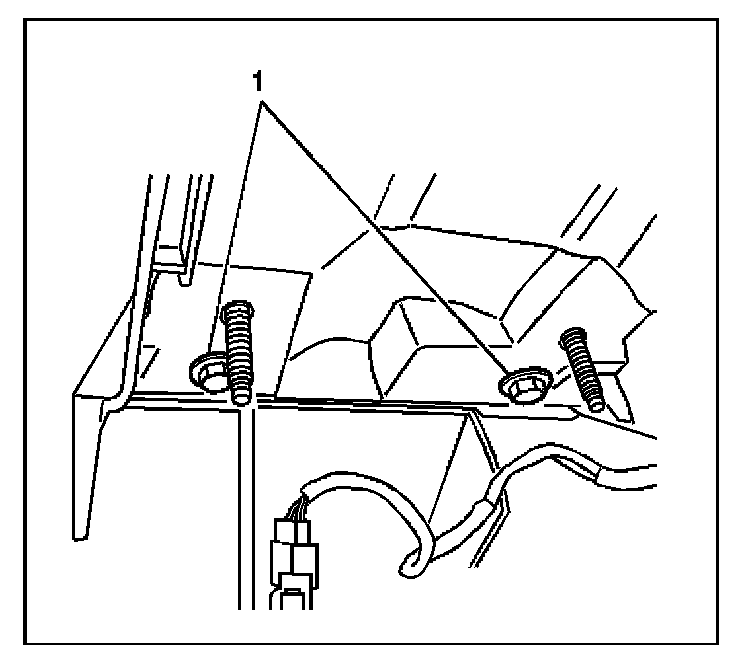

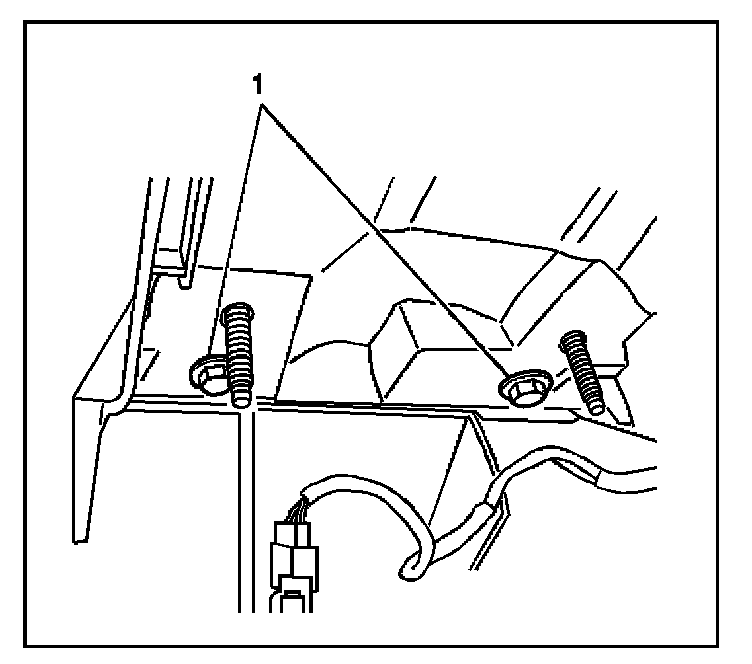

11. Remove the 2 bolts (1) located at the top of the steering column support bracket.

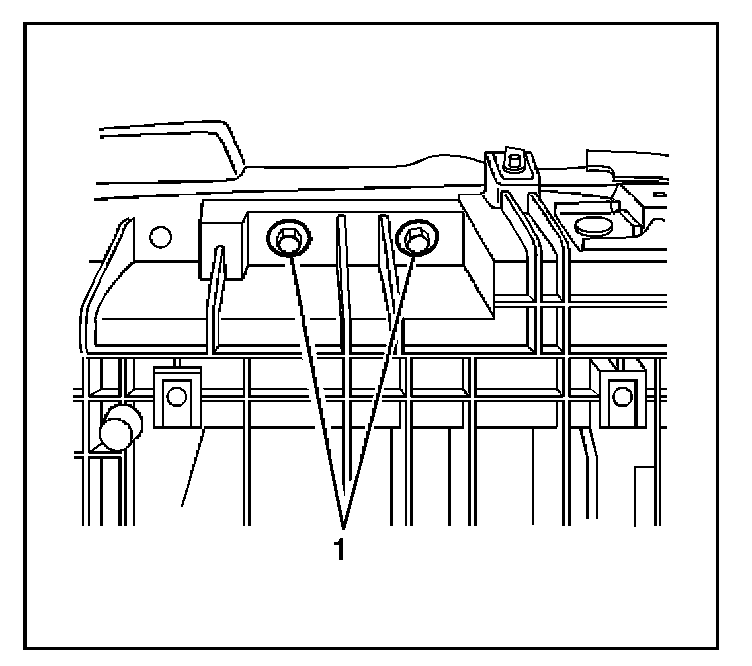

12. Remove the 2 bolts (1) located underneath the steering column support bracket.
13. Detach and remove the SIR harness from the IP carrier.
14. Disconnect the radio antenna cable located near the blower motor.

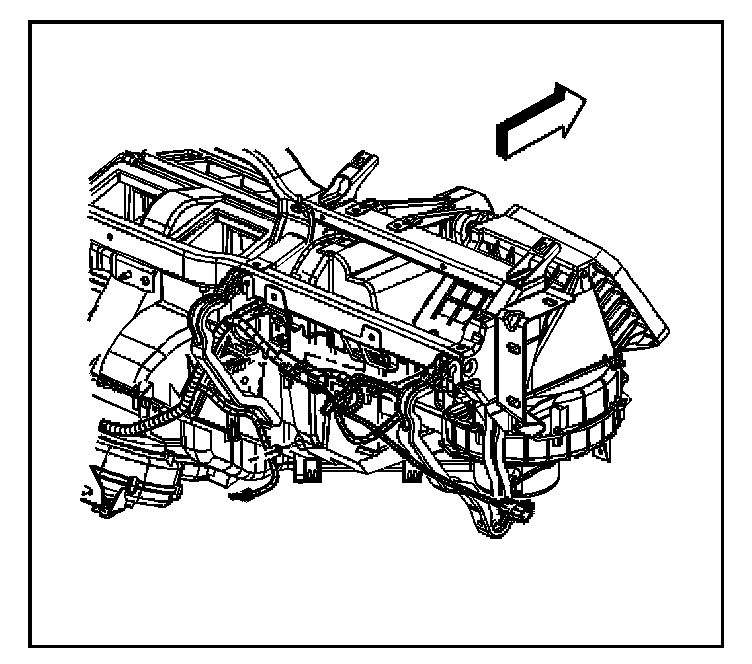

15. Detach and remove the IP wire harness from the right side of the IP carrier.
16. Remove the radio harness form the IP carrier.
17. Remove the temperature sensors from the ventilation ducts.




18. Remove the transfer case control module from the steering column support bracket.
19. Remove the upper and lower bolts retaining the IP carrier to the right cowl side carrier bracket.

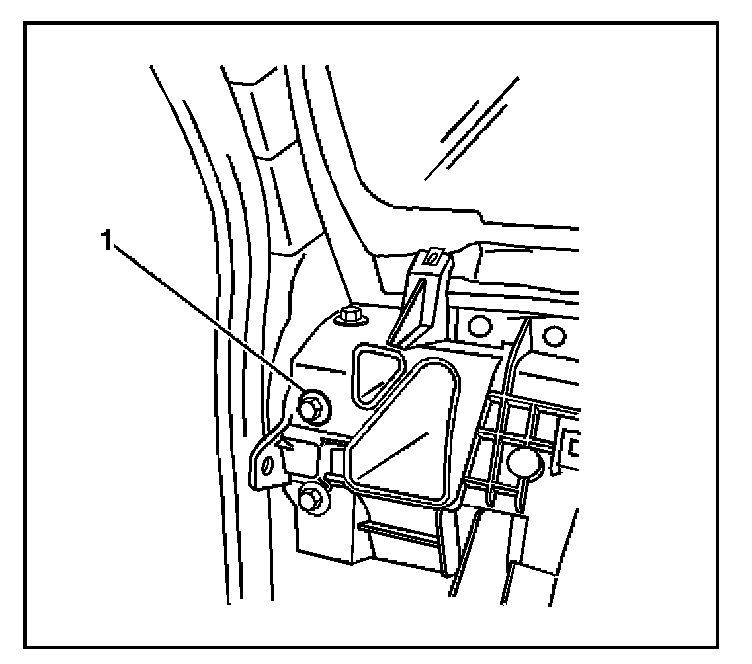

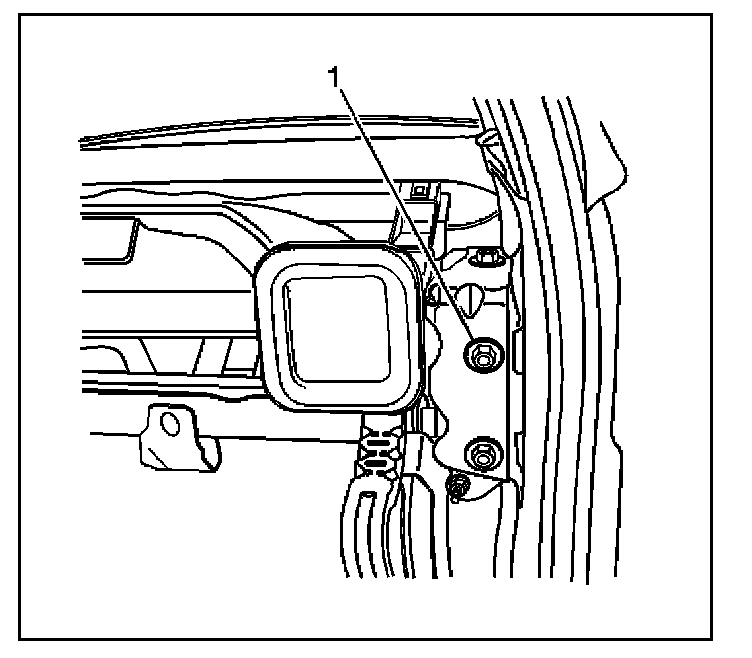

20. Remove the center bolt (1) that retains the IP carrier to the right cowl side carrier bracket.
21. Remove the upper and lower bolts retaining the steering column support bracket to the left cowl side carrier bracket.




22. Remove the center bolt (1) that retains the steering column support bracket to the left cowl side carrier bracket.

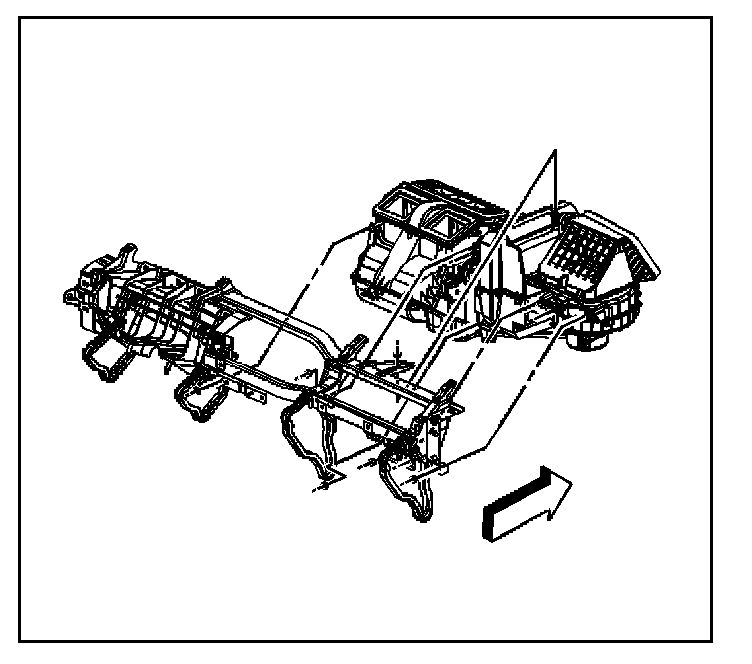

23. Remove the 6 nuts that retain the HVAC module to the IP carrier.




24. Remove the IP carrier and steering column support bracket assembly from the vehicle and place on a clean prepared surface.

Installation Procedure

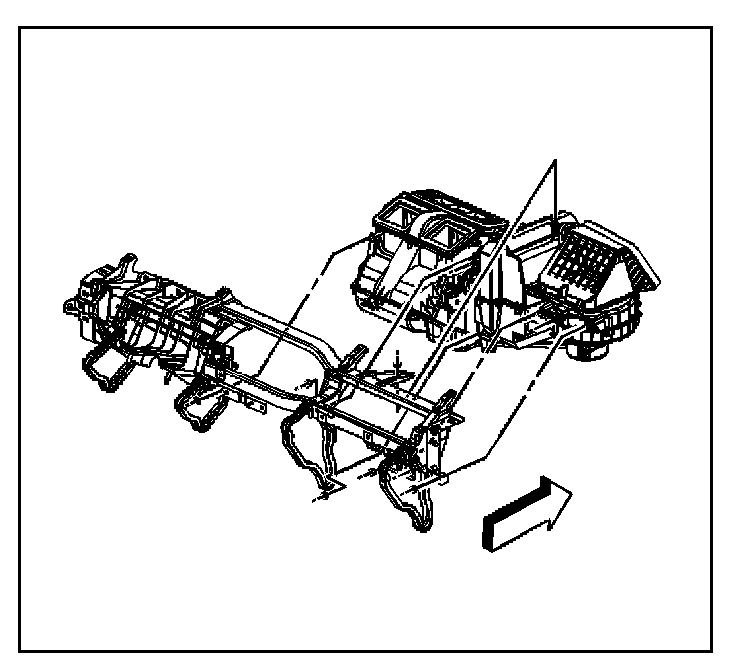

1. Install the IP carrier and steering column support bracket assembly to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.




2. Install the 6 nuts that retain the HVAC module to the IP carrier.

Tighten: Tighten the HVAC module to the IP carrier nuts to 10 Nm (88 lb in).

3. Install the center bolt (1) retaining the steering column support bracket to the left cowl side carrier bracket.




4. Install the upper and lower bolts retaining the steering column support bracket to the left cowl side carrier bracket.
5. Install the center bolt (1) retaining the IP carrier to the right cowl side carrier bracket.




6. Install the upper and lower bolts retaining the IP carrier to the right cowl side carrier bracket.

Tighten: Starting with the center bolts (1), tighten the 6 cowl side carrier bracket bolts to 50 Nm (36 lb ft).

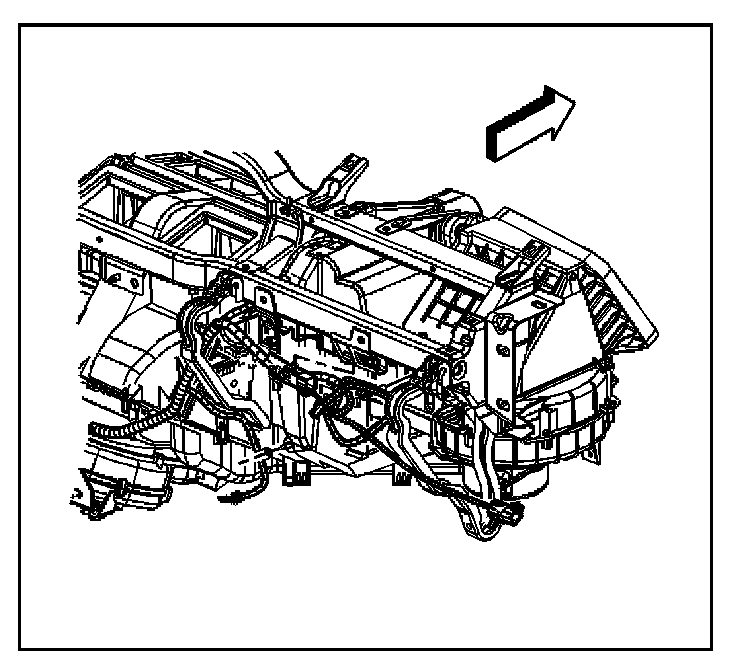

7. Install and attach the IP wire harness to the IP carrier.
8. Connect the radio antenna cable located near the blower motor.
9. Install the SIR harness to the IP carrier.
10. Install the radio harness to the IP carrier.
11. Install the temperature sensors to the ventilation ducts.




12. Install the transfer case control module to the steering column support bracket.




13. Install the 2 bolts (1) located at the top of the steering column support bracket.

Tighten: Tighten the upper steering column support bracket bolts to 50 Nm (36 lb ft).




14. Install the 2 bolts (1) located underneath the steering column support bracket.

Tighten: Tighten the lower steering column support bracket bolts to 50 Nm (36 lb ft).




15. Install the IP wire harness retaining screws (1) to the IP support bracket located near the steering column support bracket.

Tighten: Tighten the IP wire harness screws to 2.5 Nm (22 lb in).

16. Install the IPC wire harness attachments (1) to the steering column support bracket and IP carrier.




17. Install the speaker wire harness attachments to the steering column support bracket and IP carrier.
18. Install the side window defogger duct.




19. Install the screw retaining the defogger duct to the IP carrier.

Tighten: Tighten the defogger duct screw to 2.5 Nm (22 lb in).

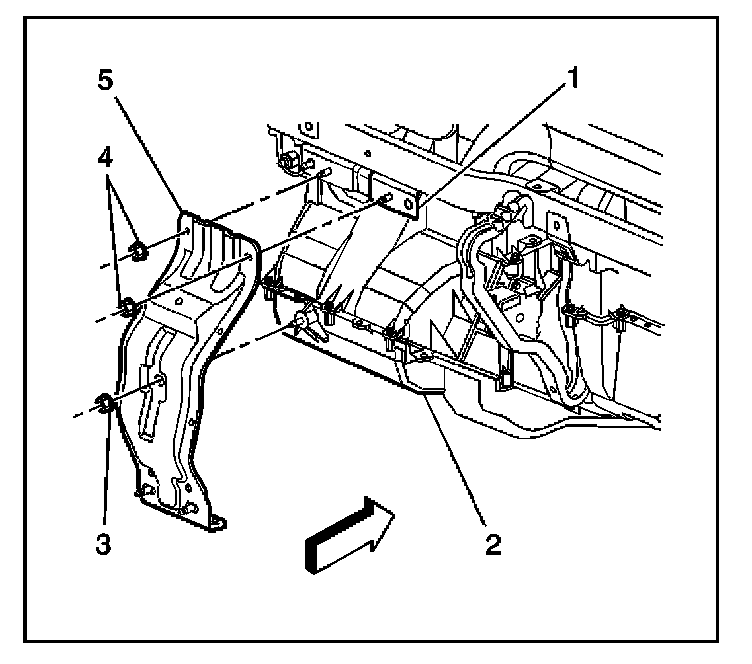

20. Install the HVAC center support bracket (5) to the HVAC module.
21. Install the nuts retaining the HVAC center support bracket to the HVAC module (2).

Tighten: Tighten the center support bracket nuts to 10 Nm (88 lb in).

22. Install the splice pack to the floor panel.

Tighten: Tighten the splice pack retaining bolt to 10 Nm (88 lb in).

23. Install the steering column.
24. Install the IP.




25. Install the center floor console.
