Dome Lamp: Service and Repair

Dome Lamp Replacement

Removal Procedure
1. Remove the dome lamp lens.

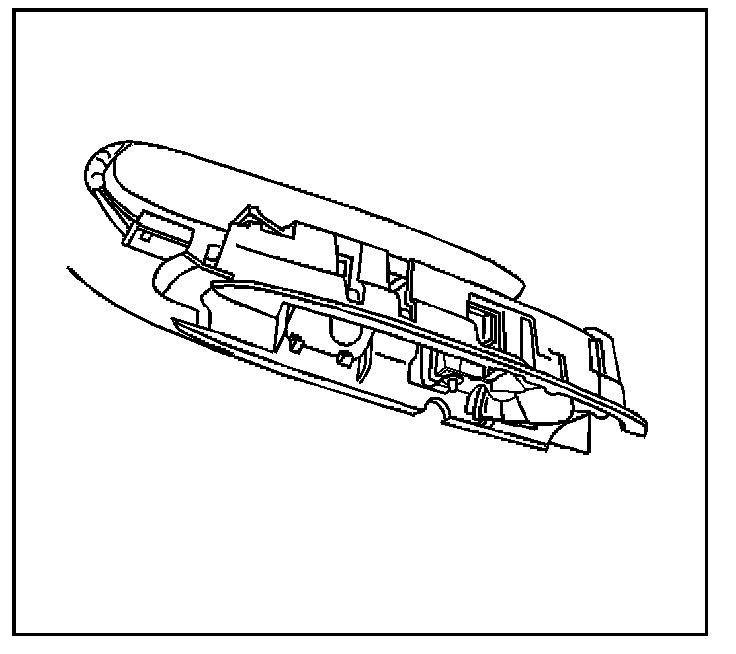

2. Carefully grasp the sides of dome lamp and move forward 15 mm (1/2 in) in order to release the rear retaining tab.
3. Lower the dome lamp from the headliner.
4. Disconnect the electrical connector.




5. Remove the dome lamp from the headliner.

Installation Procedure
1. Position the dome lamp to the headliner.
2. Connect the electrical connector to the dome lamp.
3. Position the retaining tab above the headliner and move rearward 15 mm (1/2 in).




4. Install the dome lamp lens.
