Heated Oxygen Sensor/Oxygen Sensor (HO2S/O2S) System Set Procedure

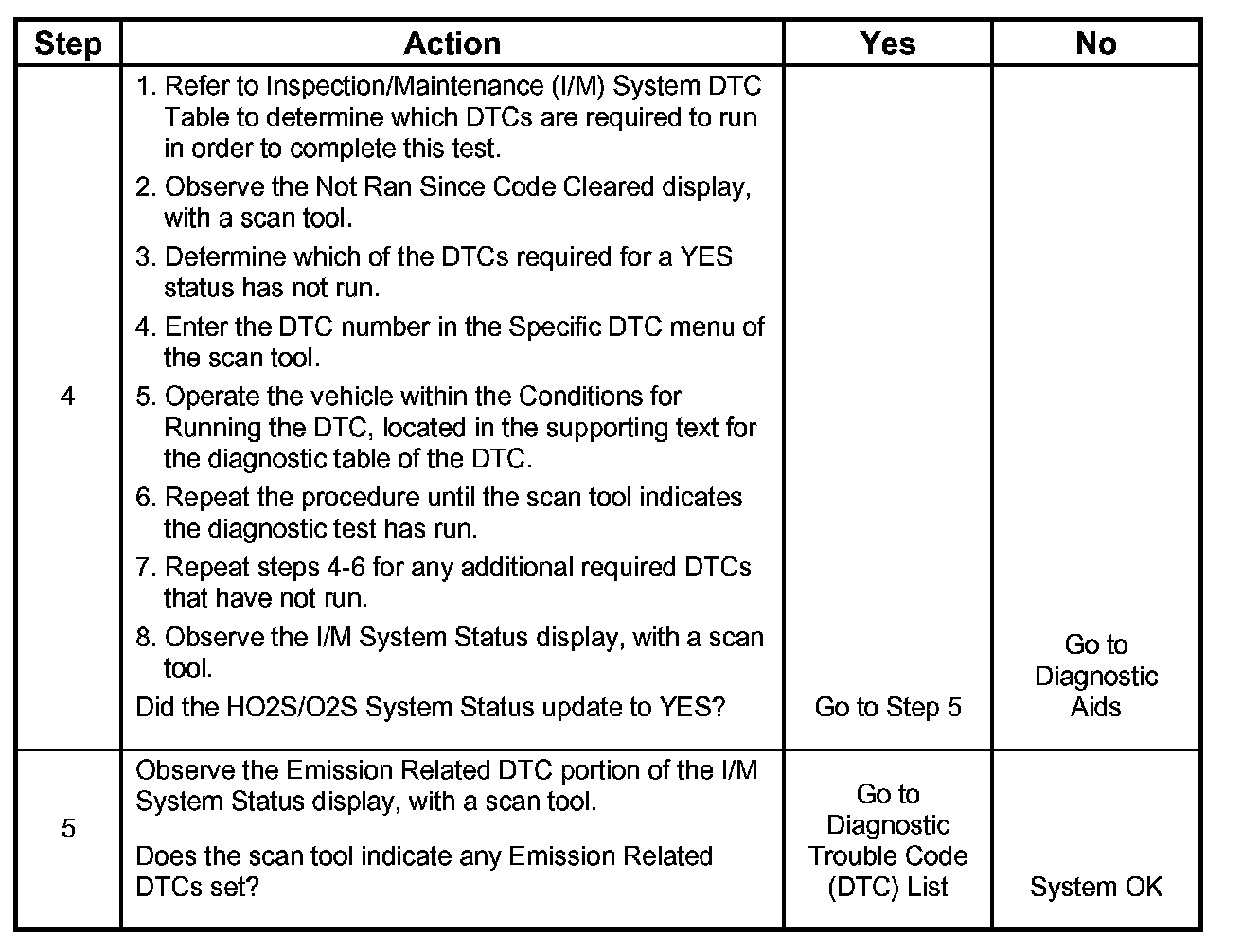

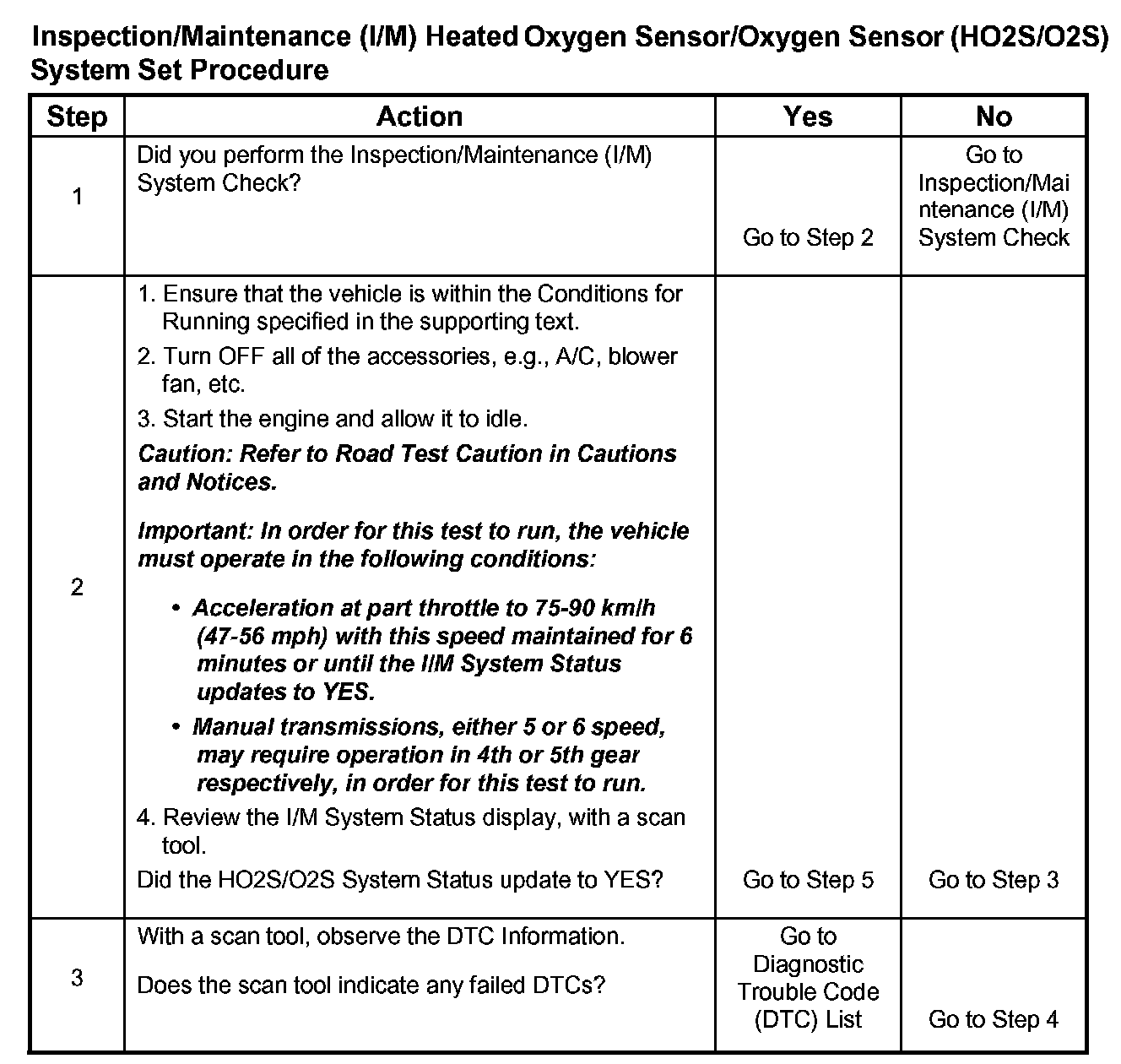

Inspection/Maintenance (I/M) Heated Oxygen Sensor/Oxygen Sensor (HO2S/O2S) System Set Procedure
Description
The purpose of this test is to satisfy the enable criteria necessary to execute I/M readiness diagnostics for the oxygen sensor (02S, HO2S) system. The test may be used to set the I/M System Status to YES.
Conditions for Running
- The engine coolant temperature (ECT) is more than 57°C (135°F).
- The engine is running in Closed Loop fuel control.
- The engine has been running for more than 160 seconds.
- The battery voltage is between 9-18 volts.
Diagnostic Aids
If the status does not update, the test outlined in this procedure can be repeated until the I/M System Status updates to YES.
The I/M System Status does not indicate whether the test has passed or failed, only that a decision was made. When all of the diagnostics for a specific system have run and passed, the I/M System Status will update to YES. If a test for a specific system has failed, the I/M System Status will update to YES, indicating a determination was made, even if all of the required tests have not run. When a failure occurs, the Emission Related DTC portion of the I/M System Status display will indicate the malfunction indicator lamp (MIL) is requested. The I/M System Status also registers the number of diagnostic trouble codes (DTCs).
The first failure of a type BDTC does not constitute a final determination of pass or fail, and will not update the I/M System Status to YES. A second trip is required, and all the conditions to run must be met in order for the test to run again. These conditions may include a partial to complete engine cool down.
The I/M System Status will update only when an emission related DTC fails the second time, or when all of the tests pass.
If there is an impending failure, the system may require more time to run the diagnostic than was allotted in the set procedure. If the test does not run after numerous attempts and no DTC is set, review the appropriate scan tool data list and the service information for an indication of why the test does not complete. Some tests may abort due to changes in the conditions while the test is running. For example, changes in engine load, such as a cooling fan or an A/C compressor clutch turning ON, may cause the test to abort.
If a diagnostic test is difficult to run, maintain necessary enable conditions until the system status updates to YES.
