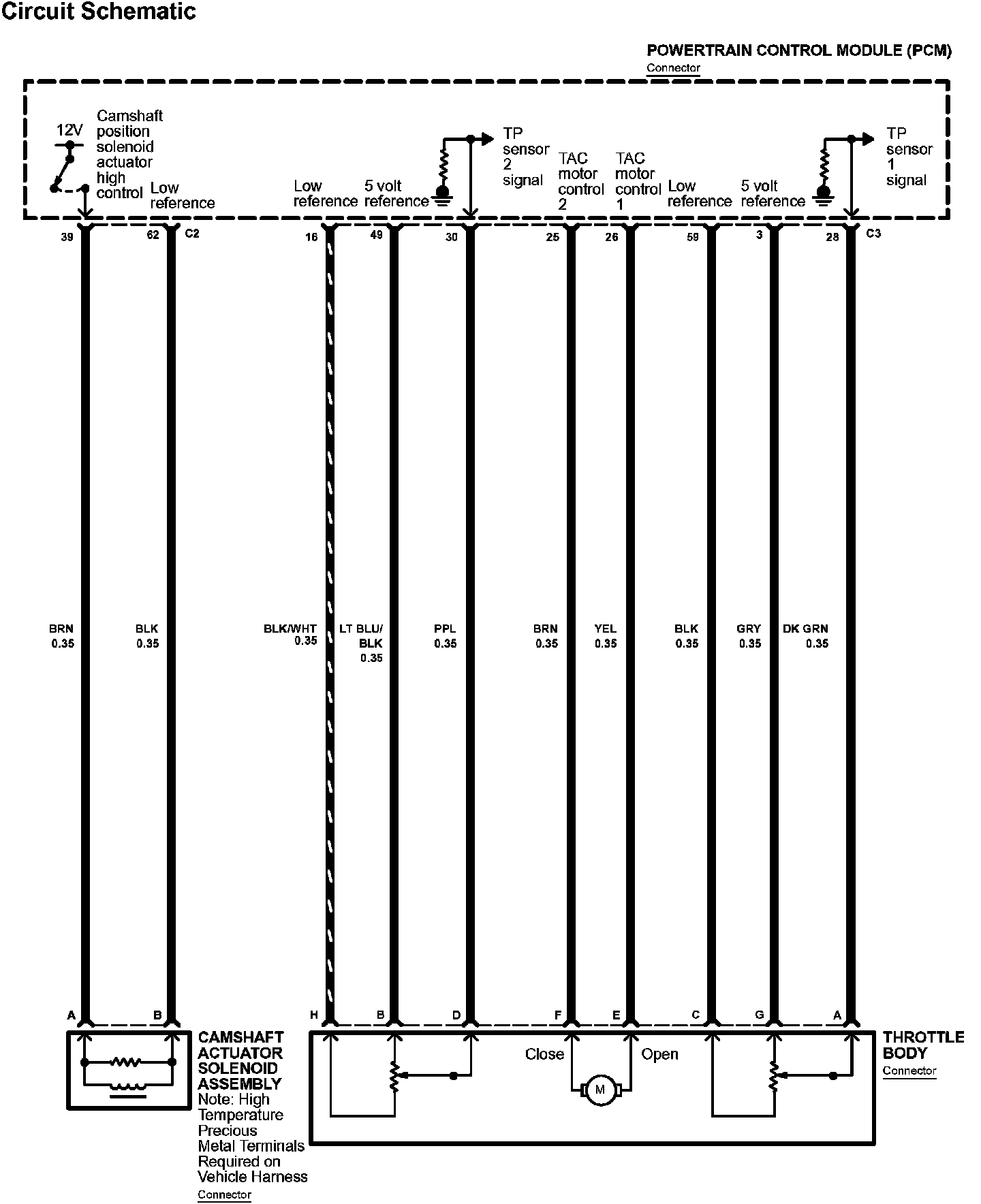

Diagram 23-5

Diagram 23-5:

Next Diagram Diagram 23-6


Previous Diagram Diagram 23-4


Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number


Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
