Oil Pump Removal

Oil Pump Removal

Tools Required
^ J37789-A Oil Pump Remover and Installer
^ J39119 Oil Pump Remover and Installer Adapter

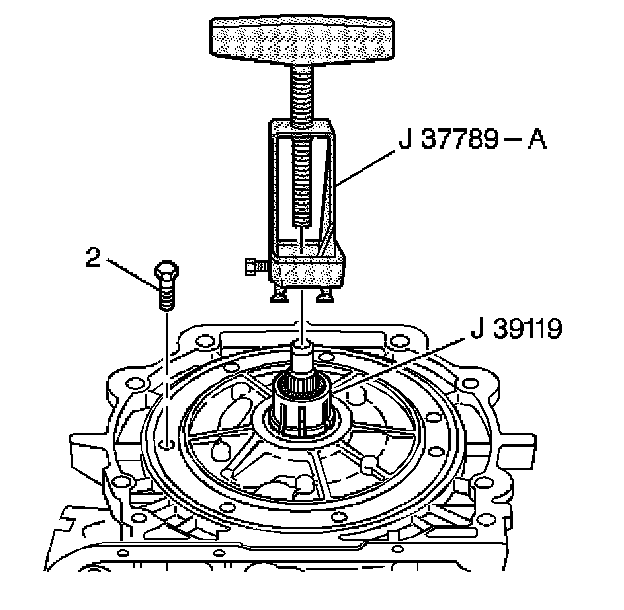

1. Remove all pump bolts (2).
2. Install J39119 over stator shaft until it locks under splines.
3. Install J37789-A.

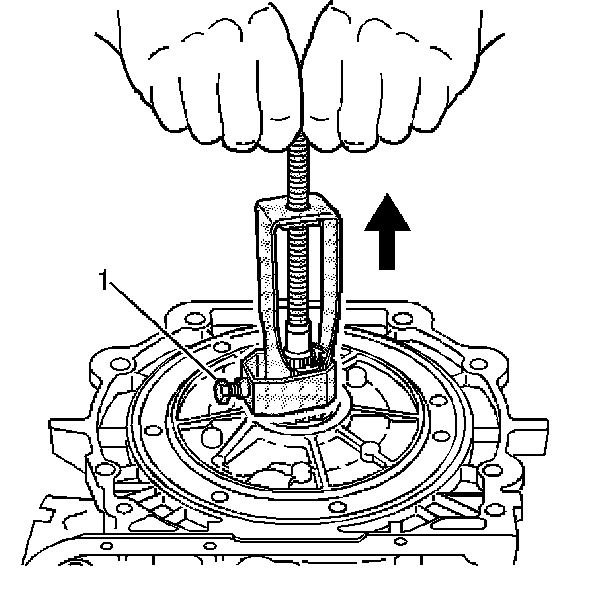

4. To prevent slipping, securely fasten the J37789-A around the J39119 by tightening the bolt (1) with a wrench.





5. Turn the T-handle on top of J37789-A.
6. Lift the pump out of the case.

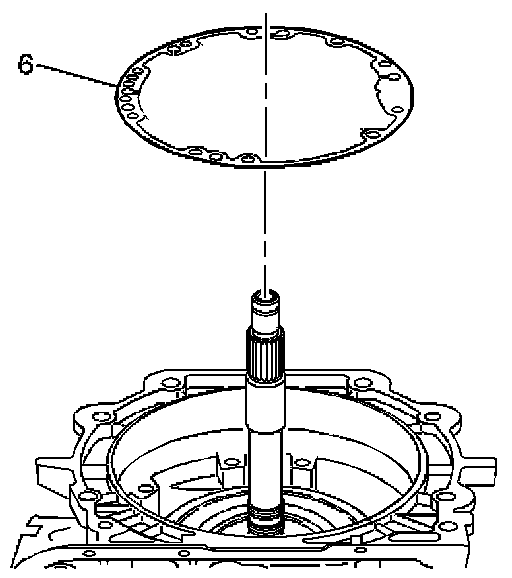

7. Remove the pump cover to case gasket (6).
