Differential Side Bearings Replacement
Differential Side Bearings ReplacementTools Required
^ J22912-01 Split-Plate Bearing Puller
^ J21784 Side Bearing Installer
^ J8092 Universal Driver Handle- % in - 10
^ J22888-D Side Bearing Remover Kit
Removal Procedure
1. Remove the differential assembly.
2. Remove the differential side bearings by performing the following steps:
2.1. Install the differential assembly in a vise.

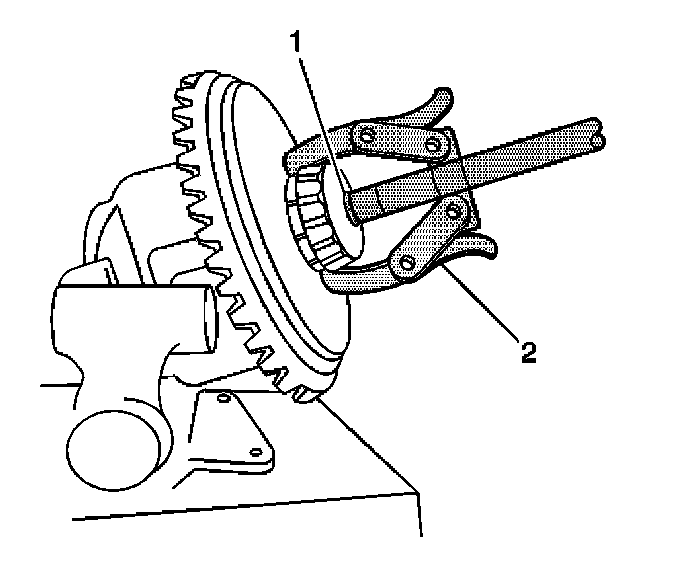

2.2. Install the J22888-20A (2) and the J8107-4 (1) as shown.
2.3. Remove the differential side bearings using the J22888-20A.
3. Remove the differential assembly from the vise.
Installation Procedure
1. Install the differential side bearings by doing the following:
1.1. In order to protect the differential case, install the J8107-4 in the case on the side opposite the bearing installation.

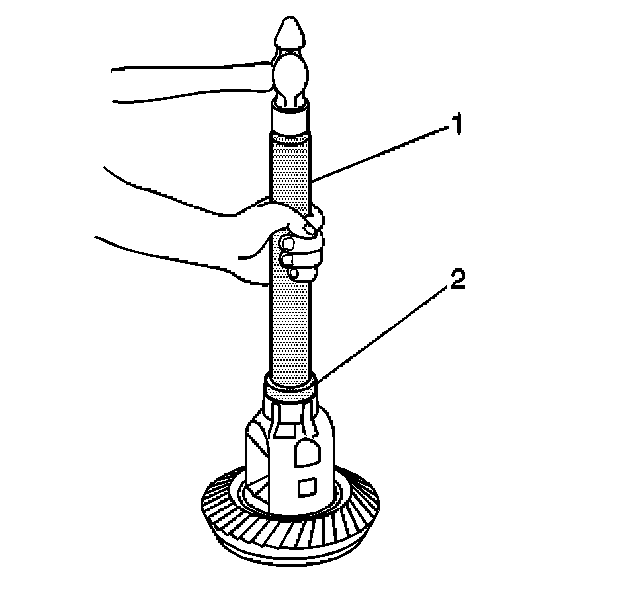

1.2. Install the J21784 (2) and the J8092 (1) onto the differential case bearing as shown.
1.3. Drive the bearing onto the case using the J21784 and the J8092.
2. Install the differential assembly.
