Rear Door: Service and Repair

Rear Door Assembly

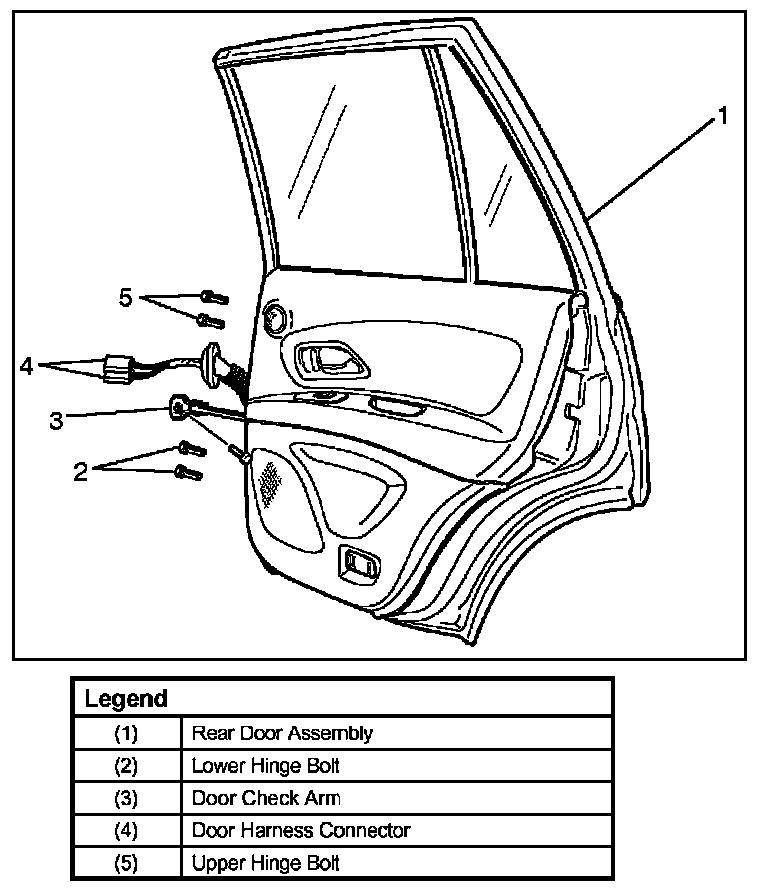

Parts Location:

Removal
1. Disconnect the battery ground cable.
2. Apply a setting mark on the body side hinge.

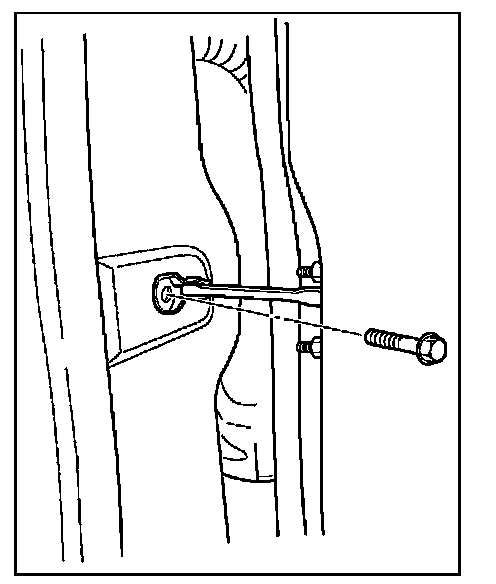

3. Remove the door check arm bolt.







4. Remove the upper and lower hinge bolts.
- Position a wood block under the door for protection and support the door assembly with hands during removal or installation.

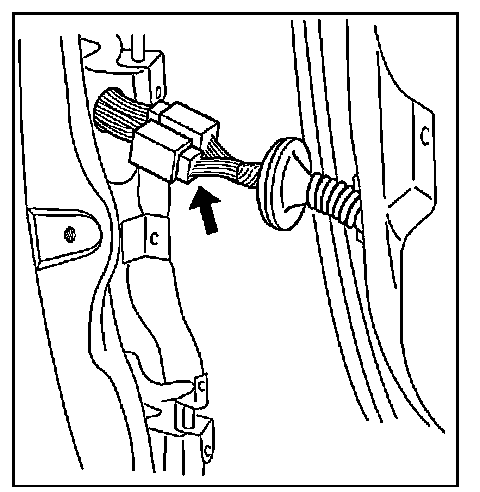

5. Remove the door harness connectors.
- Pull the door harness grommet out in order to disconnect the door harness connectors.







6. Remove the rear door assembly.

Installation
To install, follow the removal steps in the reverse order, noting the following points:
1. Align the door fitting to the body by referring to Front Door Assembly.
2. Tighten the door hinge bolts to the specified torque.
Torque: 34 N.m (25 lb ft)

3. Tighten the door check arm bolt and nuts to the specified torque.
Torque: 9 N.m (78 lb in)
