Transmission Control Systems

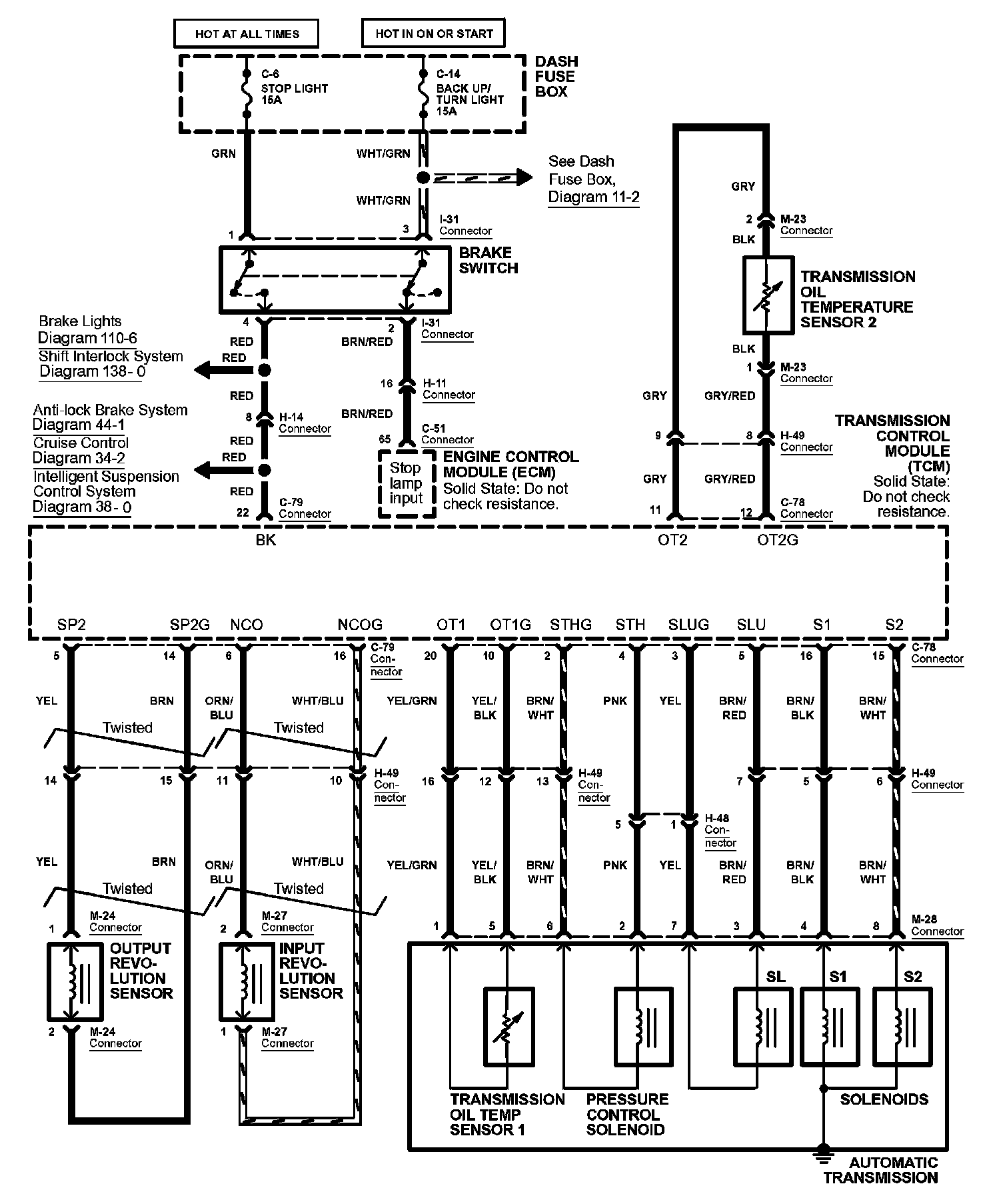

Diagram 39-0:

Diagram 39-1:

Diagram 39-2:

Diagram 39-3:

Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number


Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
