Headlamp: Service and Repair

Headlight Assembly

Removal

1. Disconnect the battery ground cable.

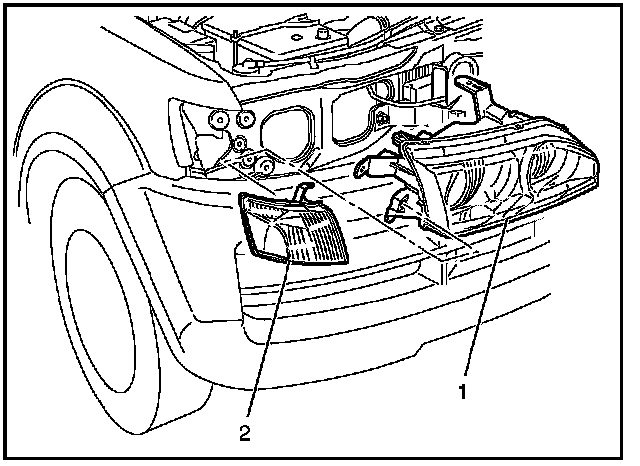

2. Remove the front combination light (2).
- Remove the screw.
- Disconnect the connector.

3. Remove the headlight assembly (1).
- Disconnect the connector.
- Remove four screws.

Installation

To install, follow the removal steps in the reverse order, noting the following point:
1. After installing the headlight, be sure to adjust the headlight aim.
