Fuel Filter: Service and Repair

FUEL FILTER

REMOVAL

CAUTION: Before removing the fuel injectors, be absolutely sure to eliminate the fuel pressure in the fuel rail. To do this, remove the pump relay and start the engine. Wait for the engine to stall.

When repair to the fuel system has been completed, start engine and check the fuel system for loose connection or leakage.

1. Disconnect battery ground cable.




2. Remove Fuel filler cap(1).




3. Use compressed air to remove any dirt on the fuel quick connect fittings prior to disconnecting the fittings.
When disconnecting the fuel pipe, cover the area with a cloth to prevent fuel from splashing as the fuel pipe may still have some pressure in it.

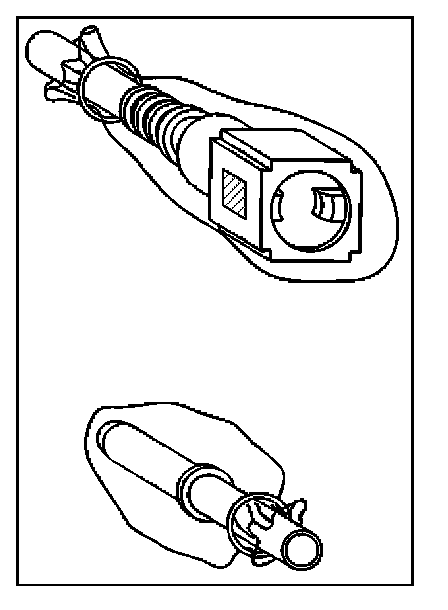

4. For removal of the quick connector, pull out the connector with the other hand while pressing the square relieve button of the connector, as illustrated.

NOTE: Do not use tools of any kind. Only use bare hands when disconnecting the connector. Use a lubricant (light oil) and/or push and pull the connector until the pipe is disconnected.




5. Cover the connectors that was removed with a plastic bag, to prevent dust or rain water from entering.

INSTALLATION
1. Install the fuel filter in the proper direction
2. Install the filter holder fixing bolt.




3. Connect the hoses on engine side (1) and fuel tank side (2).
4. Replace the port and connector if scratch, dent or crack is found.
5. Remove any dirt build up on the port when installing the connector. Replace the connector, if there is any forms of rust, dent, scratch.




6. After cleaning the port, insert it straight into the connector until it clicks. After it clicks, try pulling it out to make sure that it is not drawn and is securely locked.
7. Install fuel filler cap.
8. Connect the battery ground cable.
