With Tech 2 Scan Tool
Tech 2 OBD II ConnectionIn order to access OBD II Transmission Control Module (TCM) data, use of the Tech 2 scan tool kit (7000086) is required.
1. The electronic diagnosis equipment is composed of:
1. Tech 2 hand held scan tool unit (7000057) and DLC cable (3000095).
2. SAE 16/19 Pin Adapter (3000098)(1), RS232 Loop Back Connector (3000112)(2), and PCMCIA Card (3000117)(3).
2. Connecting the Tech 2
^ Before operating the Isuzu PCMCIA card with the Tech 2, the following steps must be performed:
1. The Isuzu System PCMCIA card (1) inserts into the Tech 2 (5).
2. Connect the SAE 16/19 adapter (3) to the DLC cable (4).
3. Connect the DLC cable to the Tech 2 (5)
4. Mark sure the vehicle ignition is off.
5. Connect the Tech 2 SAE 16/19 adapter to the vehicle DLC.
6. The vehicle ignition turns on.
7. Verify the Tech 2 power up display.
NOTE: The RS232 Loop back connector is only to use for diagnosis of Tech 2 and refer to user guide of the Tech 2.
8. The power up screen is displayed when you power up the tester with the Isuzu systems PCMCIA card. Follow the operating procedure.
Once the test vehicle has been identified an "Application (Powertrain) Menu" screen appears. Please select the appropriate application.
Part 1:
Part 2:
The following table shows, which functions are used for the available equipment versions.
Diagnostic Trouble Codes
The purpose of the "Diagnostic Trouble Codes" mode is to display stored TCM trouble codes.
When "Diagnostic Trouble Codes" is selected an "Application Menu" screen appears.
Clear DTC Information
The purpose of the "Clear DTC Information" mode is to command the clearing of stored TCM trouble codes.
When "Clear DTC Information" is selected, a "Clear DTC Information", warning screen appears. This screen informs you that by cleaning DTC's, "all stored DTC information in controller will be erased".
Do you want to clear DTC's (Yes/No).
Press either the Yes or No key when answering.
After clearing codes, confirm system operation by test driving the vehicle.
Allow the vehicle to shift through all four forward gears in a manner which attempts to repeat the failure condition.
NOTE: When the trouble has not been repaired and the trouble code cannot be erased, check the vehicle again.
DTC Information
When "DTC Information" is selected, an "Application Menu" appears with a list of DTC information function keys addressing DTC specifics and their origins.
Function key selections may vary for particular vehicle and/or system.
Data Display
The purpose of the "Data Display" mode is to continuously monitor data parameters.
The current actual values of all important sensors and signals in the system are display through F1 mode.
When "Data Display" is selected an "Application Menu" appears. Please select either "Engine" or "Transmission Data Display".
See "Transmission Data" on next page.
Snapshot
When "Snapshot" is selected an "Application Menu" appears.
When "Transmission Snapshot" application is selected from the "Application Menu", a "Snapshot Menu" appears, displaying several options. "Snapshot" options may vary from one system to another.
"Snapshot" allows a recording of all vehicle parameters. There parameters may then be replayed at a future point in time.
This action allows you to focus on making the condition occur, rather than trying to view all of the data in anticipation of the fault. The snapshot will collect parameter information around a trigger point that you select.
When a snapshot is taken. It is recorded onto the PCMCIA memory card. When the Tech 2 is powered down. Snapshots are not lost.
Actuator Tests
The purpose of "Actuator Tests" mode is to check for correct operation of electronic system actuators.
Lamps
You can operate the lamps by pressing the "ON" and "OFF" buttons.
Preconditions: none
Solenoid
Solenoid 1-2/3-4, Solenoid 2-3, TCC Solenoid
You can operate the solenoids by pressing the "ON" and "OFF" buttons.
Preconditions: P-N position, no vehicle speed, no engine speed
Pressure Control Solenoid (PCS)
You can set desired PCS Current using the "Increment" (+20) and "Decrement" (-20) button. The PC Solenoid Data informs about PCS Current, Pressure and Duty Cycle.
Preconditions: P-N position, no engine speed, no vehicle speed
NOTE: Freeze Frame is an element of the Diagnostic Management System which stores various vehicle information at the moment an emission-related fault is stored in memory and when the MIL is commanded on. These data can help to identity the cause of a fault. Refer to Storing And Erasing Freeze Frame Data for more detailed information.
Part 1:
Part 2:

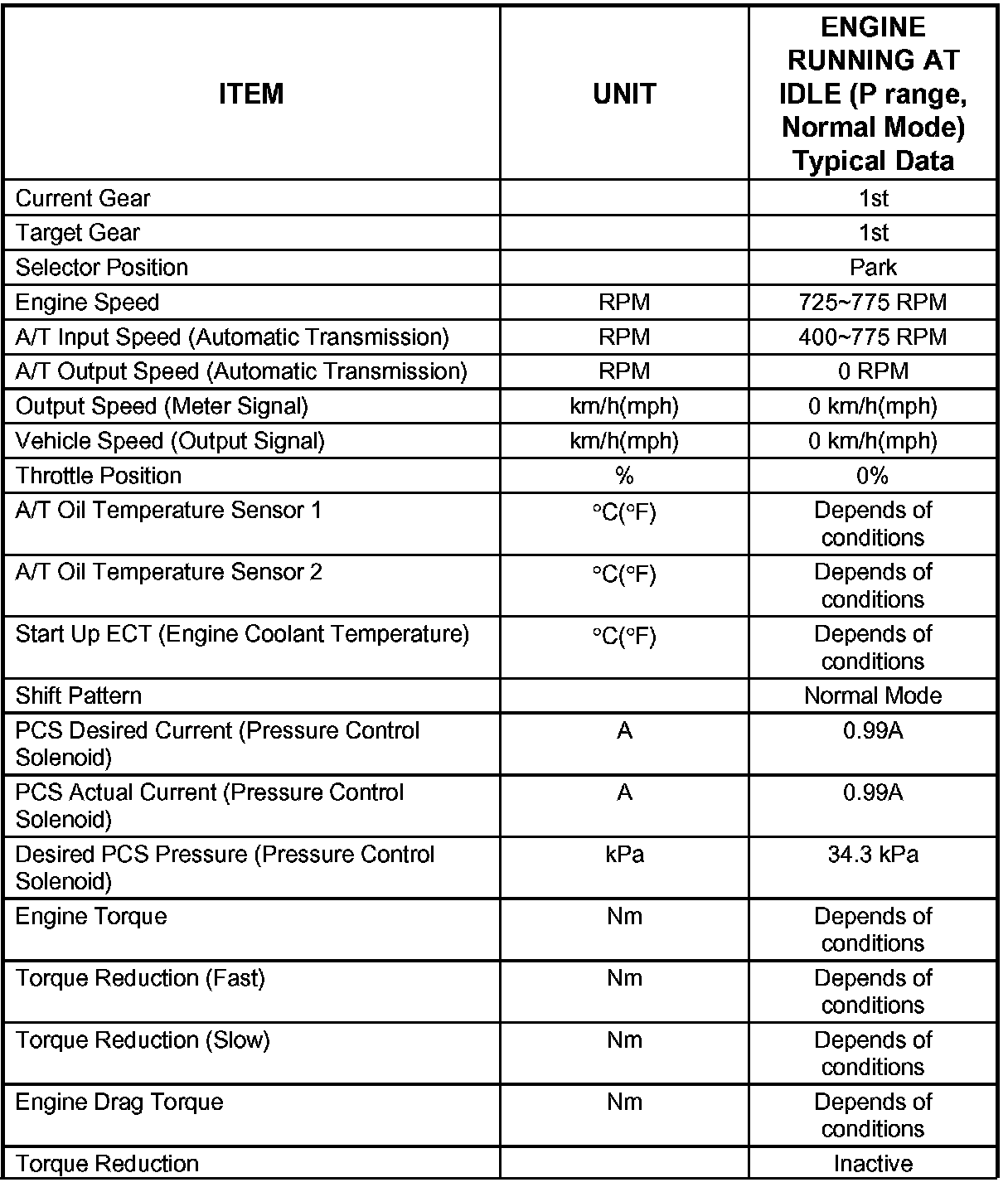

TRANSMISSION DATA
Part 1:
Part 2:
Additional Data List 1
Part 1:
Part 2:
Additional Data 2
SNAPSHOT DISPLAY WITH TIS2000
Procedures for transferring and displaying Tech 2 snapshot data by using TIS2000 "Snapshot Upload" function is described.
Snapshot data can be displayed with "Snapshot Upload" function included in TIS2000.
By analyzing these data in various methods, trouble conditions can be checked.
Snapshot data is displayed by executing the three steps shown:
1. Record the snapshot data, in Tech 2.
2. Transfer the snapshot data to PC.
After recording the snapshot in Tech 2, transfer the data from Tech 2 to PC by the below procedures.
1. Start TIS2000.
2. Select "Snapshot Upload" on the TIS2000 start screen.
3. Select "Upload from trouble diagnosis tool (transfer from diagnosis tester)" or click the corresponding icon of the tool bar.
4. Select Tech 2, and transfer the recorded snapshot information.
5. Select the transferred snapshot.
6. After ending transfer of the snapshot, data parameter list is displayed on the screen.
3. Snapshot data is displayed with TIS2000 "Snapshot Upload" function.
Snapshot is stored in the PC hard disk or floppy disk, and can be displayed any time.
Stored snapshot can be displayed by the below procedures.
1. Start TIS2000.
2. Select "Snapshot Upload" on the TIS2000 start screen.
3. Select "Open the existing files" or click the corresponding icon of the tool bar.
4. Select the transferred snapshot.
5. Open the snapshot, to display the data parameter list on the screen.
Graph display Values and graphs (Max. 3 graphs):
1. Click the icon for graph display. "Graph Parameter" window opens.
2. Click the first graph icon of the window upper part, and select one parameter from the list of the window lower part. Selected parameter is displayed nest to the graph icon. Graph division can be selected in the field on the parameter right side.
3. Repeat the same procedures with the 2nd and 3rd icons.
4. After selecting all parameters to be displayed (Max. parameters), click "OK" button.
5. Parameter selected is displayed in graph form on the right of the data parameter on the screen.
6. Graph display can be moved with the navigation icon.
7. For displaying another parameter by graph, click the parameter of the list, drug the mouse to the display screen while pressing the mouse button and release the mouse button. New parameter is displayed at the position of the previous parameter. For displaying the graph display screen in full size, move the cursor upward on the screen. When the cursor is changed to the magnifying glass form, click the screen. Graph screen is displayed on the whole screen.
Display of graphs on one screen (Max. 6 graphs):
1. Click the 6 graph icon. "Graph Parameter" window opens.
2. Click the graph icon, select the parameter to be displayed from the list and change divisions according to necessity.
3. Repeat the same procedures with the graph icons, from the 2nd to 6th.
4. Click the "OK" button to display.
5. In this case, parameters are displayed only in graph form. All parameters are displayed in one graph.
6. The graph display screen can be moved with the navigation icon.
SERVICE PROGRAMMING SYSTEM (SPS)
The procedure to program the control unit by using the Service Programming System (SPS) software contained in TIS2000 is explained.
NOTE:
^ If the Engine Control Module (ECM) was programmed, the Immobilizer System must be linked to the ECM: Refer to section 11 "Immobilizer System-ECM replacement" for the ECM "Immobilizer linking procedure.
^ Should Tech 2 display "SPS Procedure was not successful", engine will not start, but no DTCs are present, low battery voltage or poor electrical connections should be the primary suspects. Perform the SPS procedure again after rectifying the fault/s.
IMPORTANT: Perform the following checks before attempting to program the control unit:
^ The Tech 2 PCMCIA card is programmed with the latest software release.
^ The latest release of TIS2000 is loaded on the PC.
^ The vehicle battery is fully charged.
^ The control unit to be programmed is connected to the vehicle.
1. Preparations of TIS 2000
1. Connect Tech 2 to P/C.
2. Check to see if Hardware Key is plugged into Port.
3. Activate TIS 2000 by P/C.
4. On the activating screen of TIS2000, choose "Service Programming System"
5. On the screen of "Diagnostic Tester and Processing Program Selection", choose the one that will comply with the following.
^ Tech 2 in use
^ New programming by the existing module or new programming by the replaced/new module.
^ Fixing position of the control unit.
6. Upon completion of the selection, push the button of "Next".
2. Demand of Data
1. Connect Tech 2 to the vehicle. When activated by turning on the power of Tech 2, push the "Enter" switch.
2. Turn on the ignition switch (without starting the engine)
3. In the main menu of Diagnostic Tester, push "F1: Service Programming System (SPS)".
4. Push "F0: Request Info" of Tech 2.
5. Where vehicle data has been already saved in Tech the existing data come on display. In this instance, as Tech 2 starts asking whether to keep the data or to continue obtaining anew data from the control unit, choose either of them.
6. If you select "continue", you have to select "Model Year", "Vehicle Type".
7. After that. then push button and turn Ignition switch tuned on, off, on following Tech 2 display. Tech 2 will read information from controller after this procedure.
8. During obtaining information, Tech 2 is receiving information from the control unit ECM and TCM (A/T only) at the same time. With VIN not being programmed into the new control unit at the time of shipment, "obtaining information" is not complete (because the vehicle model, engine model and model year are specified from VIN). For the procedure get additional information on vehicles, instruction will be provided in dialog form, when TIS2000 is in operation.
9. Following instructions by Tech 2, push the "Exit" switch of Tech 2, turn off the ignition of the vehicle and turn off the power of Tech 2, thereby removing from the vehicle.
3. Data Exchange
1. Connect Tech 2 to P/C, turn on the power and click the "Next" button of P/C.
2. Check VIN of the vehicle and choose "Next".
3. Select "System Type" for required control unit.
^ Engine (Programming for ECM or PCM)
^ Transmission (Programming for TCM)
4. When a lack of data is asked from among the following menu, enter accordingly.
Select following Menu
^ Model Year
^ Model
^ Engine type
^ Transmission type
^ Destination code (vehicles for general export)*1
^ Immobilizer
* 1: How to read the destination code
Destination code can be read from ID Plate affixed on vehicles, while on VIN plate the destination code is described at the right-hand edge of Body Type line. In Fig.-3, the destination code can be read as "ER8" (USA).
5. After choosing the data, click the "Next" button.
6. When all the necessary information is entered, the "details" of software within the database that match the entered data will appear for confirmation. Click the "Program" switch and then download the new software onto Tech 2.
7. "Data Transfer" comes on display. The progress of downloading will be displayed on the screen in the form of bar graph.
8. Upon finishing the data transfer, turn off the power of Tech 2, removing from P/C.
4. Programming of TCM
1. Check to see if batteries are fully charged, while ABS connectors shall be removed from the vehicle.
2. Connect Tech 2 to Vehicle Diagnostic Connectors.
3. Turn on the power of Tech 2 and the title screen comes on display.
4. Turn on the ignition (without allowing the engine to start)
5. On the title screen of Tech 2, push the "Enter" button.
6. Choose "F1: Service Programming System" on the main screen and then choose"FI: Program ECU".
7. While data is being transferred, "Downloading" will be displayed on the Tech 2 screen.
8. Upon finishing the data transfer, Tech 2 will display "Reprogramming Successful". Push the "Exit" button to bring program to completion.
9. Following "Procedure 2: Demand of Data", try over again "Information Obtaining" and check to confirm if the data has been correctly re-loaded.
10. Upon finishing confirmation, turn off the ignition of the vehicle and then turn off the power of Tech 2, removing from the vehicle.
