Chart B - "Air Bag" Warning Lamp Comes "ON" Steady

Circuit Description
When the ignition switch is first turned "ON", "ignition 1" voltage is applied from the "MA01" meter fuse to AIR BAG", warning lamp which is connected to "SRS warning lamp", terminal "7". The "SRS-1" fuses apply system voltage to the "ignition 1" inputs, terminals 12". The SDM responds by flashing the "AIR BAG" warning lamp 7 times. If "ignition 1" voltage is less than 9 volts, the "AIR BAG" warning lamp will come "ON" solid with no DTCs set.

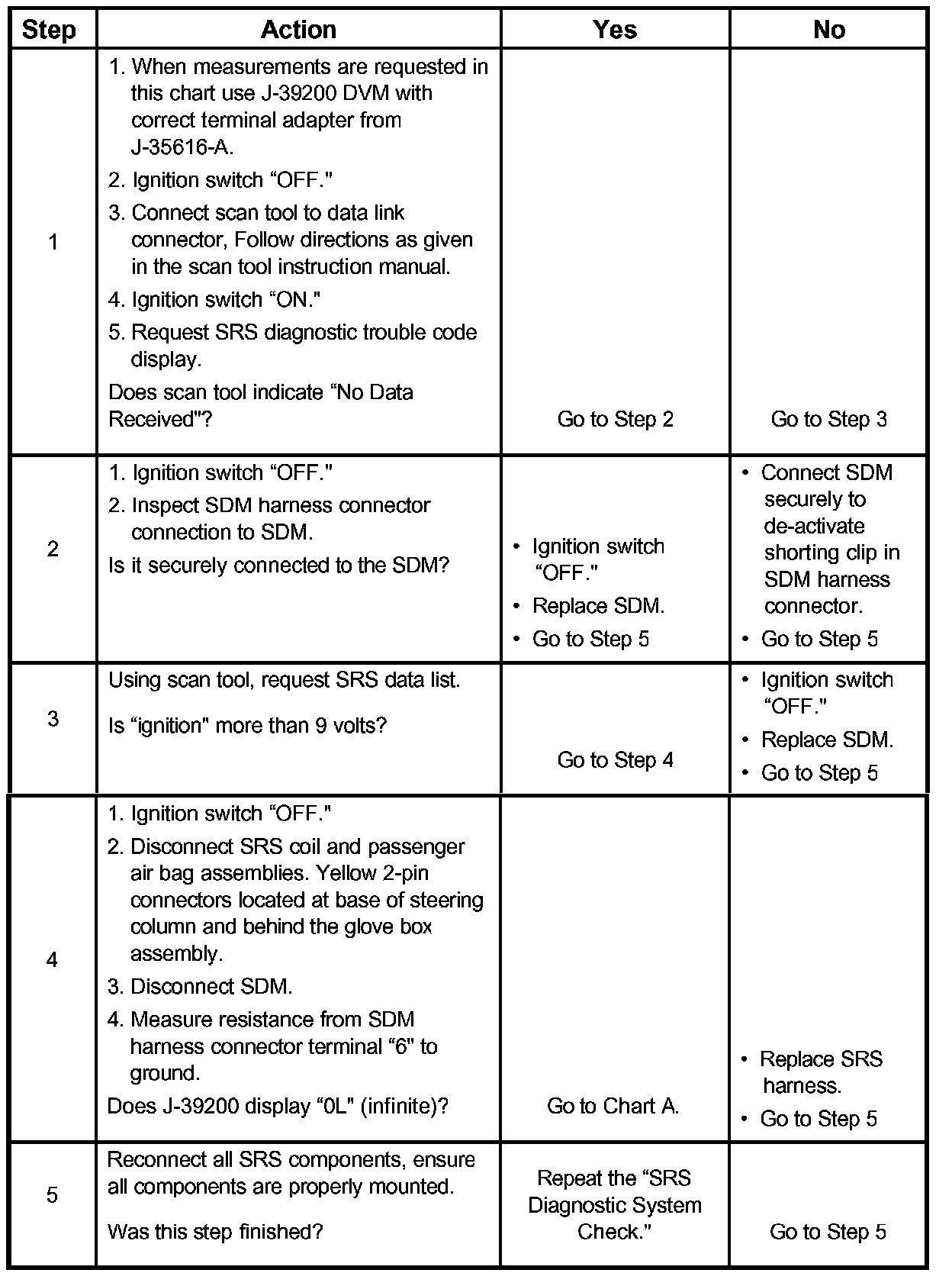

Step 1 - 5:

Chart Test Description
Number (s) below refer to step number (s) on the diagnostic chart.

2. This test checks for an open in the "ignition 1" circuit to the SDM.
3. This test checks for the voltage of "ignition 1."
4. This test determines whether the malfunction is a short to ground in CKT IB04 - GRN.
