Suspension Control Module: Service and Repair

Removal
1. Disconnect the battery ground cable.
2. Remove the front console assembly.
3. Disconnect the connector from the control unit.

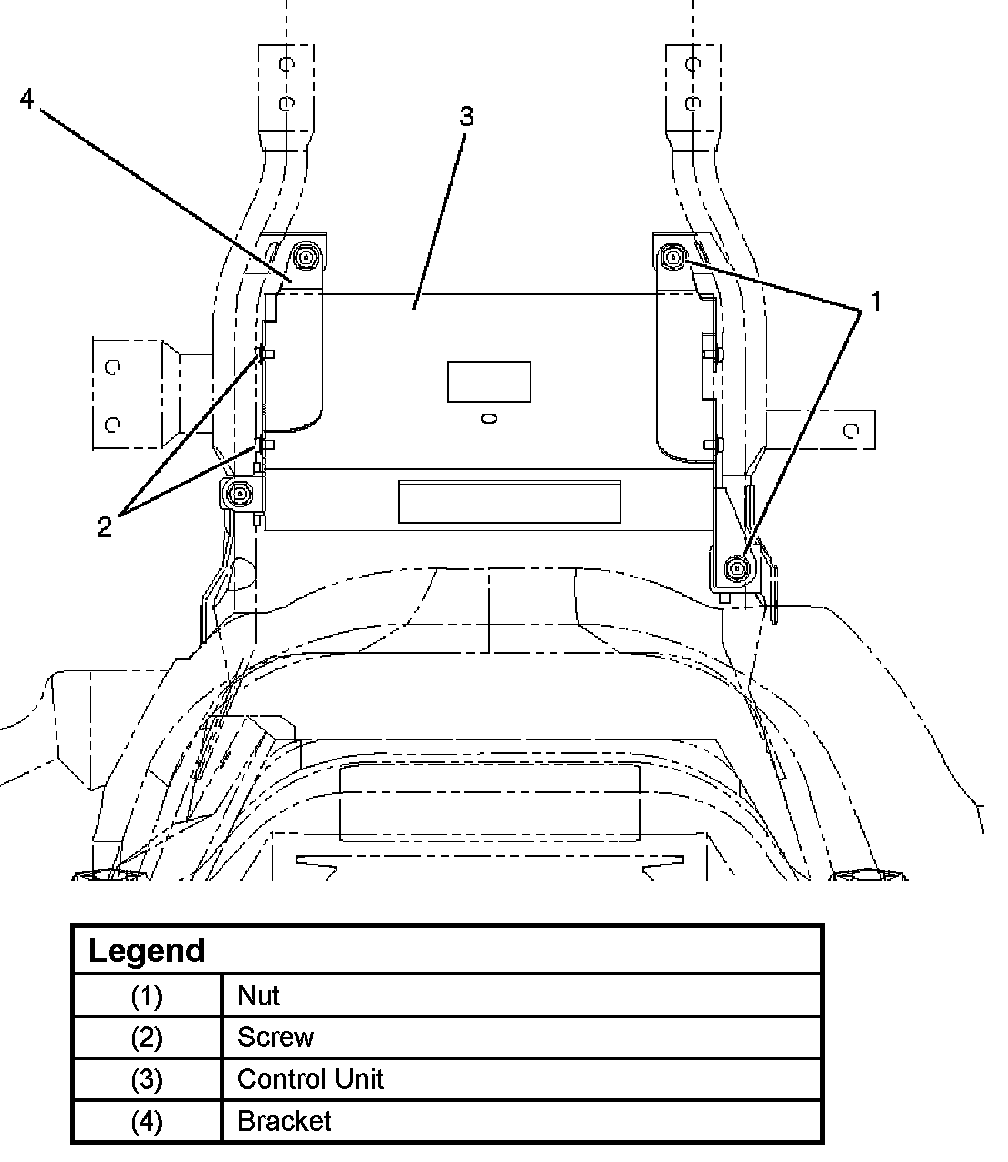

View A

4. Remove 4 nuts.
5. Disconnect the control unit with brackets.
6. Remove 4 screws.
7. Disconnect the control unit from the brackets.

Installation
To install, follow the removal steps in the reverse order, noting the following points.
Torque: Nut (1) 8 Nm (69 inch lbs.)
