Transmission Valve Body Assembly

Transmission Valve Body Assembly

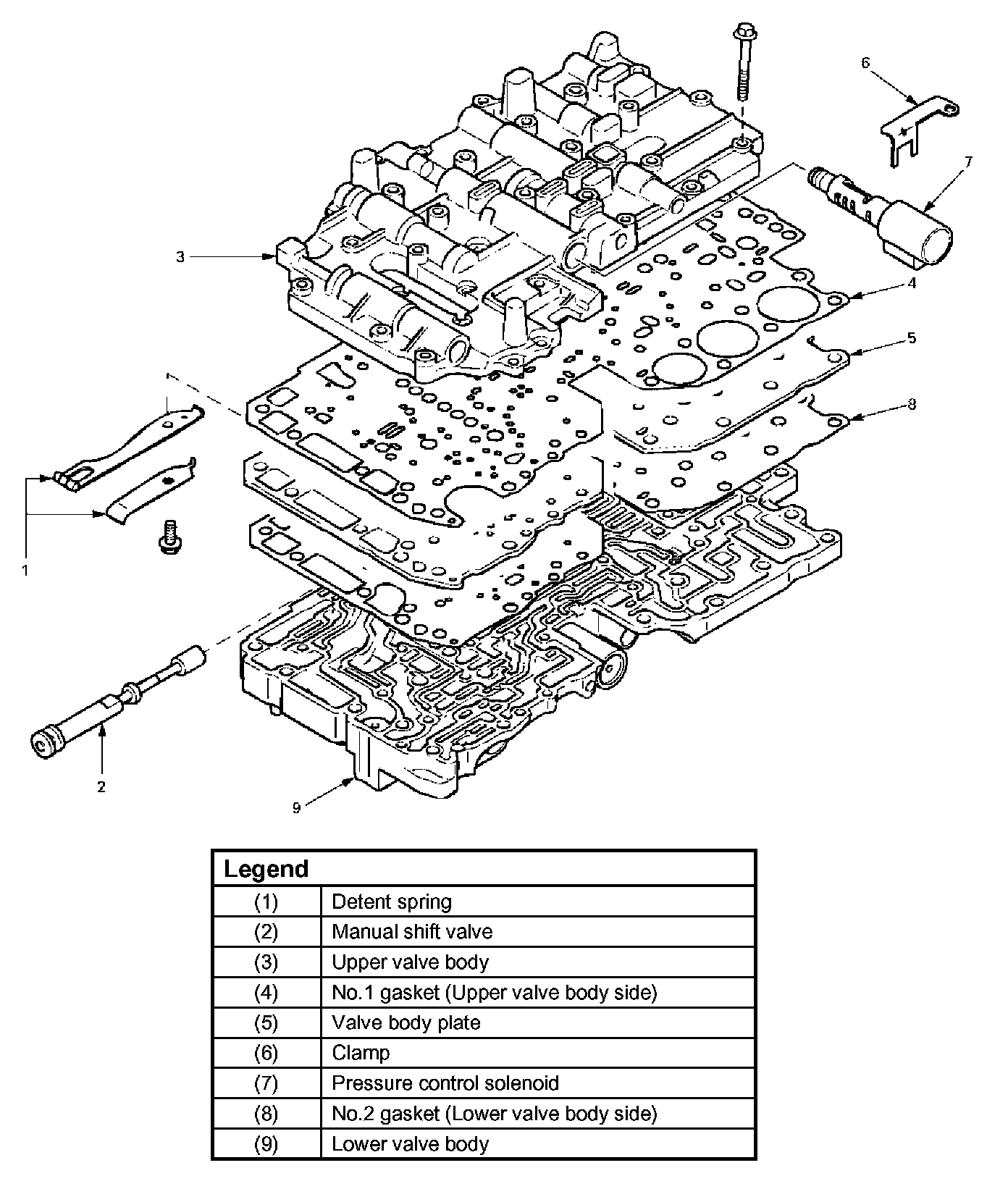

Disassembled View

Disassembly





1. Remove detent spring from valve body.
2. Remove the manual shift valve.
3. Remove the upper valve body.
4. Remove the No.1 gasket (Upper valve body side).





5. Remove the valve body plate.
^ Turn over assembly and remove thirty bolts.
6. Remove the clamp.





7. Remove the pressure control solenoid.
Hold the valve body plate to the upper valve body.
Lift off upper valve body and plate as a single unit.

NOTE: Be careful that the check balls and strainers do not fall out.

8. Remove the No.2 gasket (Lower valve body side).
9. Remove the lower valve body.

Reassembly

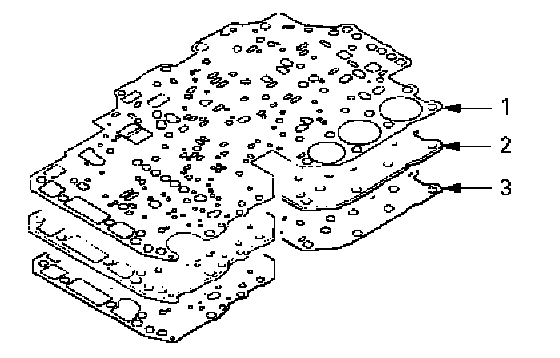

1. Position a new No.1 gasket (1) on upper valve body.
Align the No.1 gasket at each bolt hole.
2. Position valve body plate (2) on No.1 gasket (1).
Align the plate at each bolt hole.





3. Position a new No.2 gasket (3) on valve body plate (2).
Align the No.2 gasket at each bolt hole.

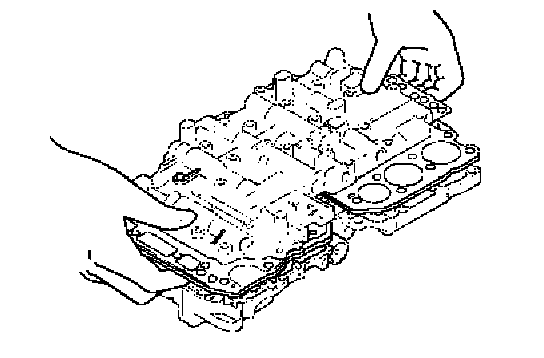

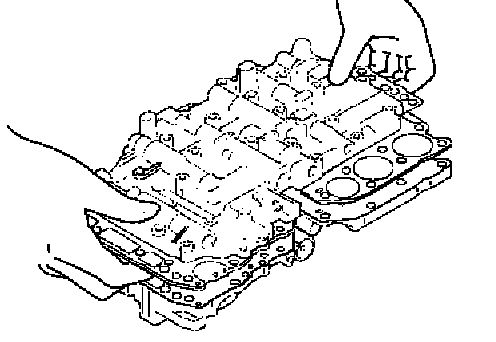

4. Place upper valve body with plate and gaskets on top of lower valve body.
Align each bolt hole and gasket in the valve body.

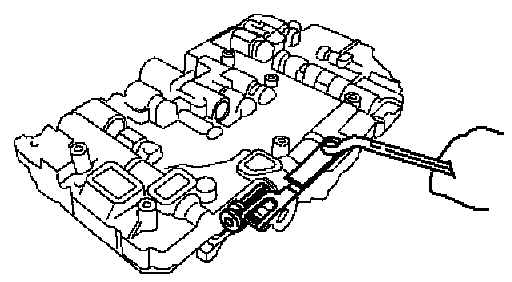

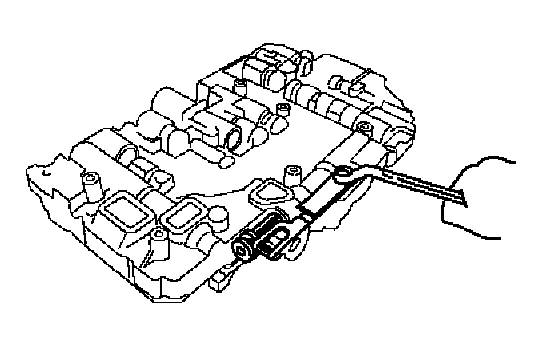

5. Install the pressure control solenoid and clamp.

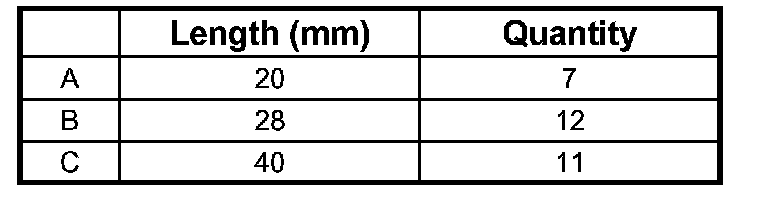

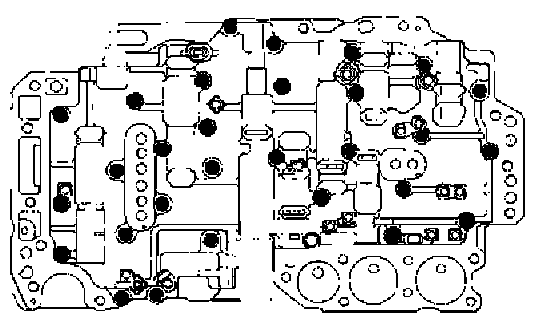

6. Install thirty bolts to upper valve body. Each bolt is indicated in the figure.





Torque: 6.4 Nm (57 inch lbs.)
7. Install manual shift valve.





8. Install detent spring.
Torque: 10 Nm (87 inch lbs.)
