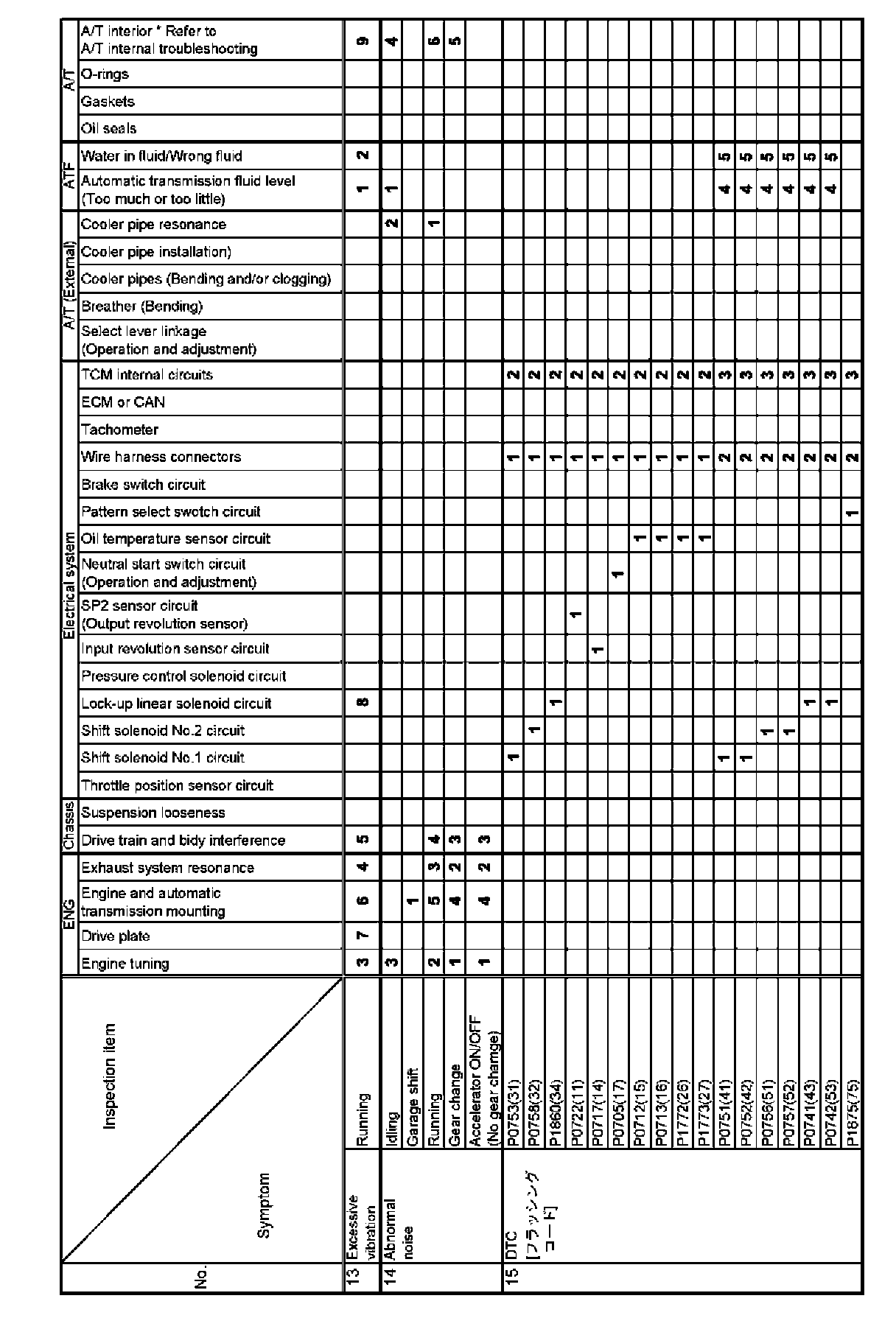

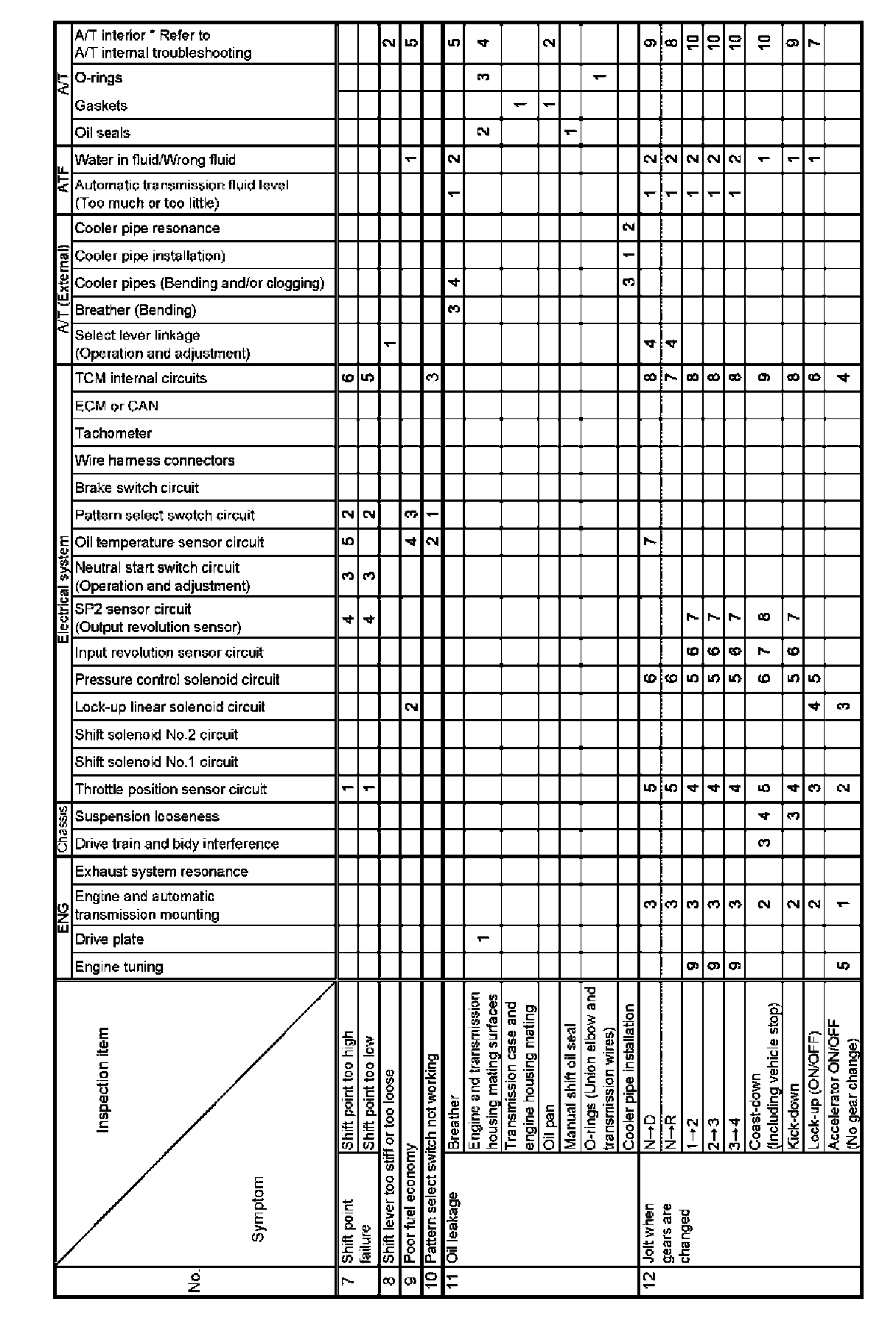

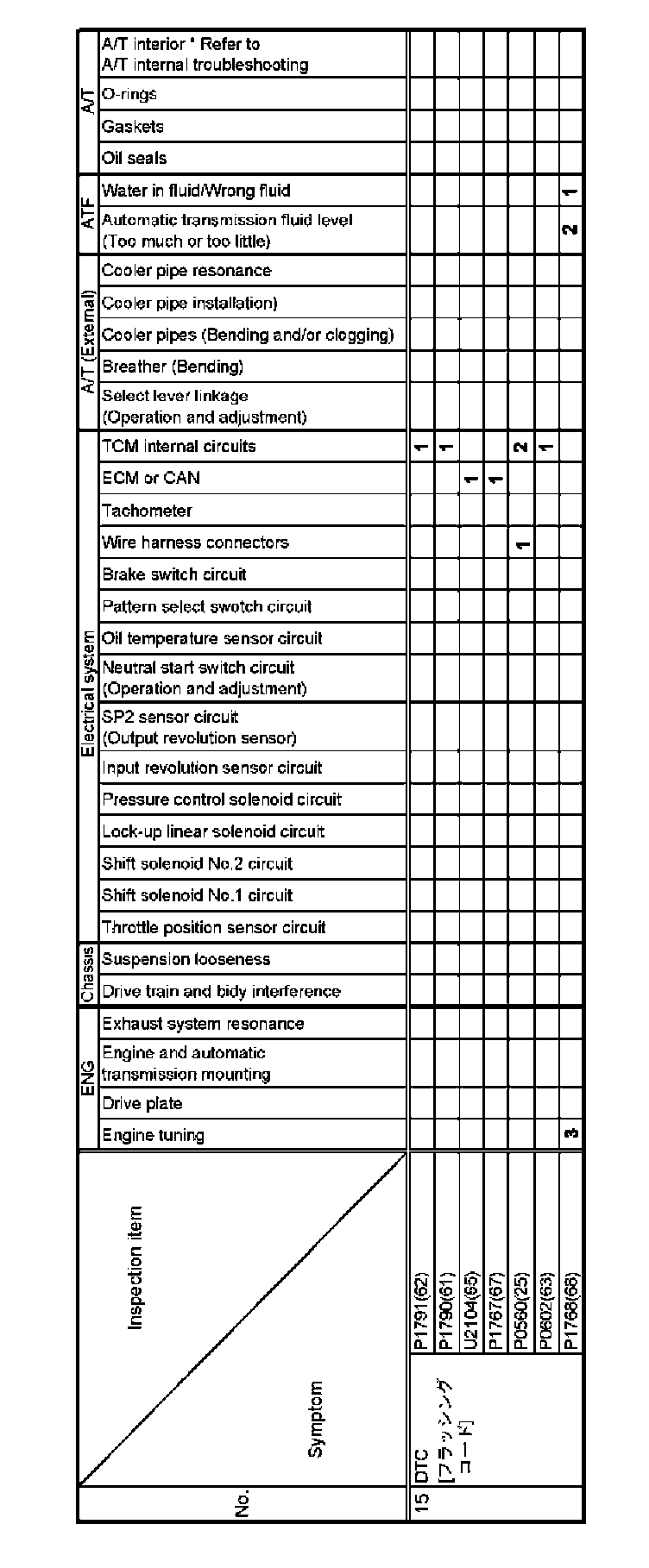

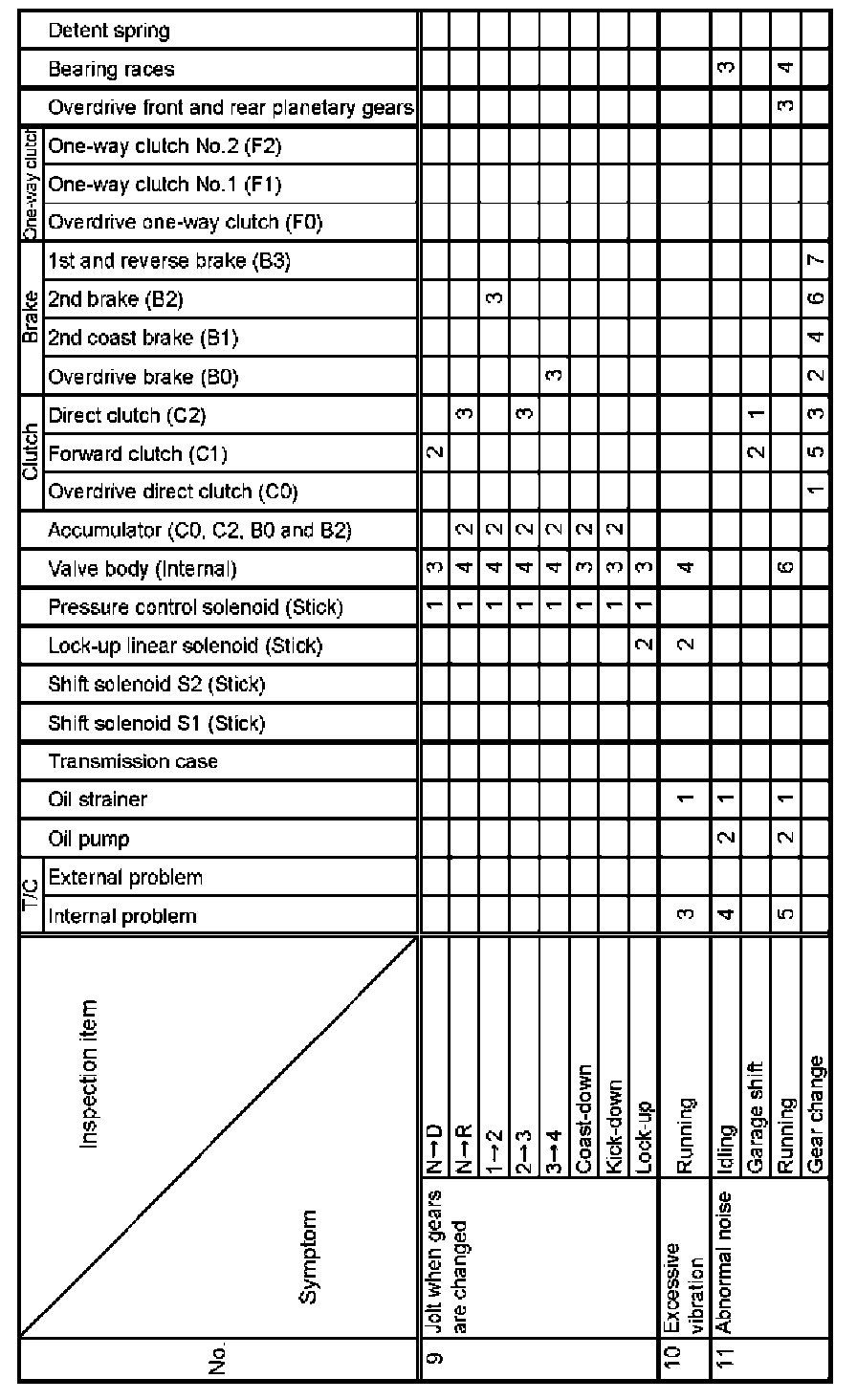

Troubleshooting Chart

Troubleshooting Chart
Numbers are arranged in order of probability.

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

Perform inspections starting with number one and working up.
