Windshield Washer Spray Nozzle: Service and Repair

Rear Washer Nozzle

Removal

1. Disconnect the battery ground cable.

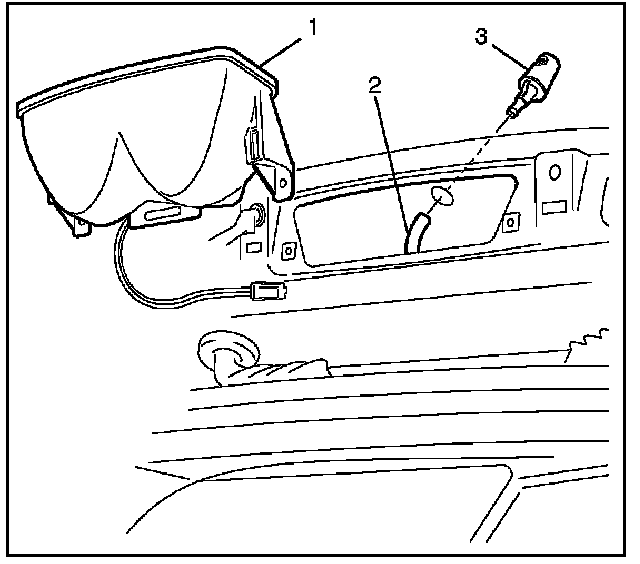

2. Remove the high mounted stoplight (1).
- Refer to High Mounted Stoplight Assembly in Lighting System section.

3. Remove the washer nozzle (3).




- Pull out the washer nozzle from the washer hose (2).

Installation

To install, follow the removal steps in the reverse order.
